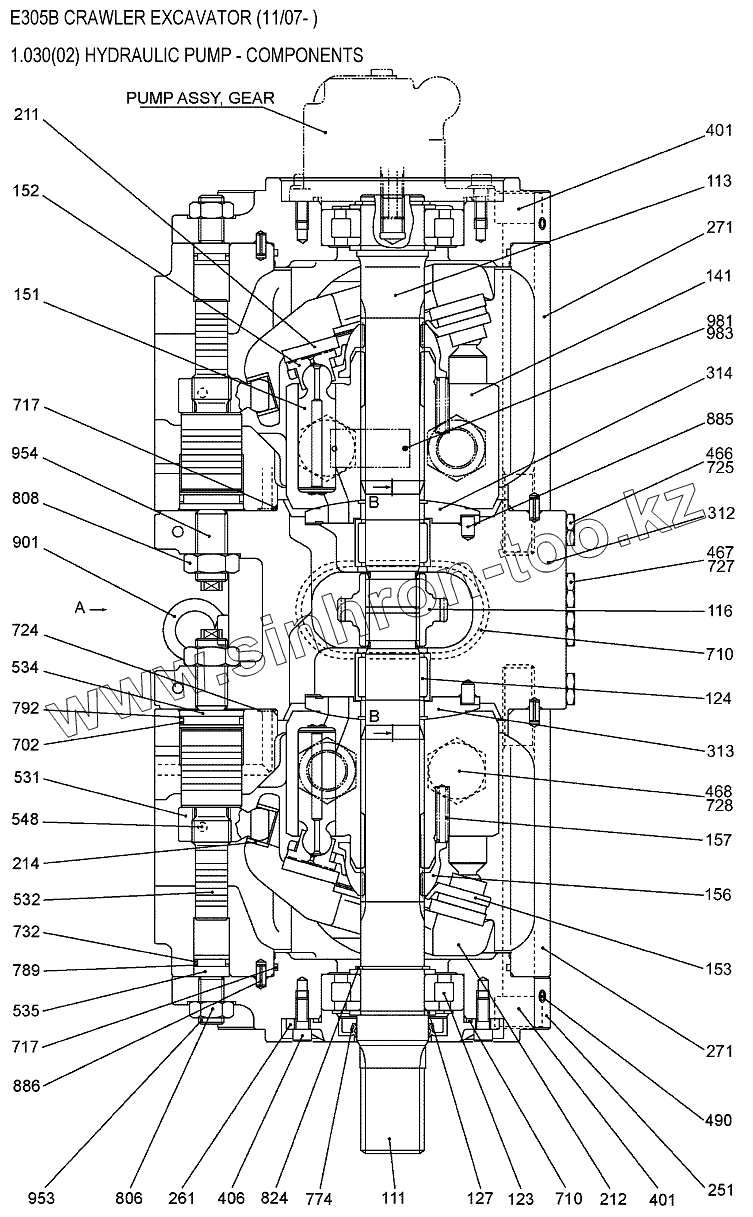

Каталог запасных частей к технике: New Holland Экскаватор E305B. Насос гидравлический
111
113
116
123
124
127
141
151
152
153
156
157
211
212
214
251
261
271
271
312
313
314
401
401
406
466
467
468
490
531
532
534
535
548
702
710
710
717
717
724
725
727
728
732
774
789
792
806
808
824
885
886
901
953
954
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 100 | LQ10V00021R100 | KIT, PISTON & RINGS, REPAIR KIT CONSISTS OF ITEM 151X9, 152X9 | |
| 111 | YN10V00043S111 | SHAFT, SHAFT | |
| 113 | 87333059 | SHAFT | |
| 116 | 87333061 | GEAR | |
| 123 | 87333062 | BEARING, ROLLER | |
| 124 | 72963976 | BEARING, NEEDLE | |
| 127 | 72962215 | SPACER | |
| 141 | PIN,FEEDBACK | ||
| 151 | PIN,FEEDBACK | ||
| 152 | PIN,FEEDBACK | ||
| 153 | LC10V00010S153 | PLATE, PLATE,SET | |
| 156 | 72963962 | BUSHING | |
| 157 | 72962149 | SPRING | |
| 200 | YN10V00043R100 | KIT, REPAIR, REPAIR KIT CONSISTS OF ITEM 141X1, 313X1 | |
| 211 | 72962208 | PLATE | |
| 212 | PIN,FEEDBACK | ||
| 214 | PIN,FEEDBACK | ||
| 251 | 87333063 | SUPPORT | |
| 261 | 87333064 | COVER | |
| 271 | YN10V00043S271 | BOX, CASING | |
| 300 | YN10V00043R200 | KIT, REPAIR, REPAIR KIT CONSISTS OF ITEM 141X1, 314X1 | |
| 312 | LC10V00010S312 | BLOCK, BLOCK,VALVE | |
| 313 | PIN,FEEDBACK | ||
| 314 | PIN,FEEDBACK | ||
| 325 | YN10V00043S325 | COVER, COVER | |
| 400 | 72209806 | KIT, REPAIR KIT CONSISTS OF ITEM 212X1, 214X1 | |
| 401 | 87333069 | SCREW | |
| 406 | 14306370 | SCREW | |
| 407 | 14304870 | SCREW | |
| 466 | 72209813 | PLUG | |
| 467 | 2441U549S464 | PLUG, PLUG | |
| 468 | 72209878 | PLUG | |
| 490 | 72209815 | PLUG | |
| 500 | 72209807 | KIT, REPAIR KIT CONSISTS OF ITEM 531X1, 548X1 | |
| 531 | PIN,FEEDBACK | ||
| 532 | LC10V00010S532 | PISTON, PISTON | |
| 534 | LQ10V00021S534 | STOP, STOPPER | |
| 535 | 72962150 | STOP | |
| 546 | YN10V00043S546 | SPACER, SPACER | |
| 548 | PIN,FEEDBACK | ||
| 702 | 72215461 | GASKET | |
| 710 | 72217471 | GASKET | |
| 717 | 72217374 | GASKET | |
| 724 | 72215395 | GASKET | |
| 725 | 72215387 | GASKET | |
| 727 | 72217475 | GASKET | |
| 728 | 72217375 | GASKET | |
| 732 | 72215463 | GASKET | |
| 774 | 72217376 | GASKET | |
| 789 | 72964469 | RING | |
| 792 | 72211285 | RING | |
| 806 | 72964485 | NUT | |
| 808 | ZN18C20012 | NUT | |
| 824 | 72211282 | O-RING | |
| 885 | 72962216 | PIN | |
| 886 | 72958881 | PIN | |
| 901 | 72958882 | BOLT | |
| 953 | 72209801 | KIT | |
| 954 | 72209802 | KIT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
