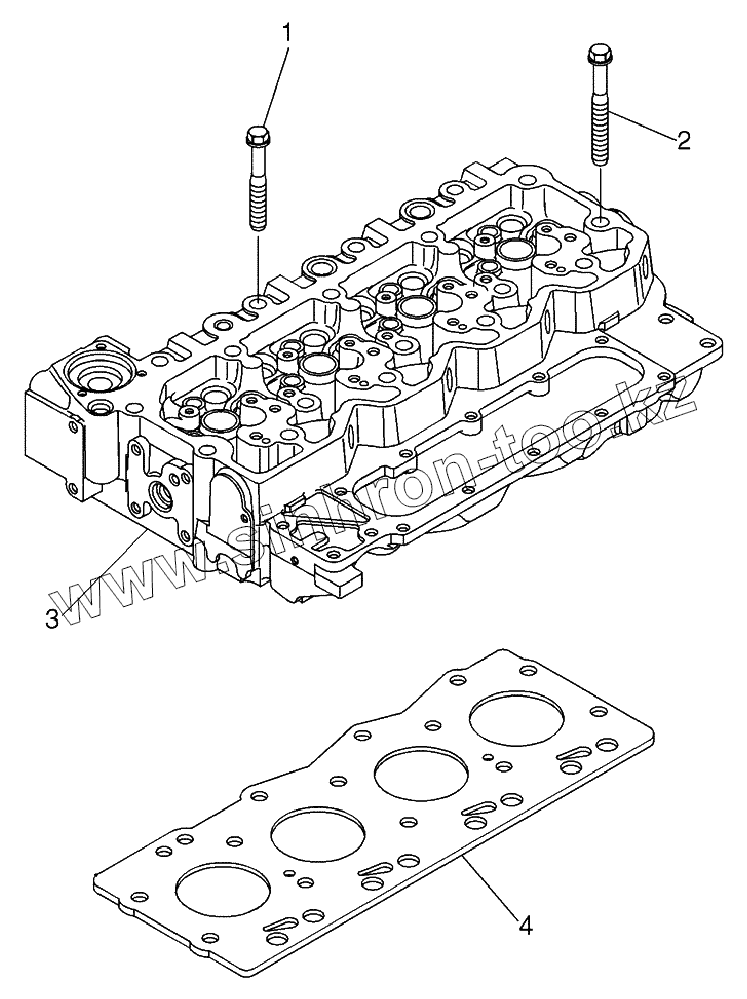

Каталог запасных частей к технике: New Holland Бульдозер D95B Tier 3. CYLINDER HEAD

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано Бульдозер D150B TIER-3 (2010) Бульдозер D180 TIER-3 (2010) Бульдозер D255 (2010) Бульдозер D350 (2010) Бульдозер D95B Tier 3 (2012) Экскаватор B115B (часть 1) (2010) Экскаватор B115B (часть 2) (2010) Экскаватор B90B (часть 1) (2012) Экскаватор B90B (часть 2) (2012) Экскаватор B90B (часть 3) (2012) Экскаватор E305B (2008) Экскаватор LB110B (часть 1) (2010) Экскаватор LB110B (часть 2) (2010)

Схема > Не выбрано INITIAL STOCKING LIST D.IA KITS ФИЛЬТРЫ ЗАПРАВОЧНЫЕ ЕМКОСТИ ENGINE - MOUNTING FAN-FAN BELT FAN DRIVE PULLEY ­ FAN DRIVE RADIATOR ­ MOUNTING RADIATOR ­ FAN GUARDS RADIATOR ­ COOLING COOLANT RECOVERY SYSTEM AIR CLEANER ­ MOUNTING AIR CLEANER ASSY MUFFLER ­ EXHAUST SYSTEM ENGINE ENGINE OIL DIPSTICK OIL FILTER AND COOLER OIL FILTER - ENGINЕ OIL PUMP ­ ENGINE OIL PUMP, PAN BREATHER ­ ENGINE TURBOCHARGER ­ DRAIN LINE TURBOCHARGER WATER PUMP WATER PUMP ­ CONTROL CYLINDER BLOCK CYLINDER HEAD CYLINDER HEAD ­ ASSEMBLY CYLINDER HEAD ­ COVERS CRANKSHAFT ­ PULLEY DYNAMIC BALANCER, GEARS & SHAFTS DYNAMIC BALANCER, GEARS & SHAFTS FLYWHEEL HOUSING FLYWHEEL ­ ENGINE GEAR COVER ­ REAR HOUSING FRONT GEAR COVER ROCKER ARMS ROCKER ARMS ­ ASSEMBLY CAMSHAFT PISTONS INTAKE MANIFOLD EXHAUST MANIFOLD COOLING SYSTEM ­ ENGINE THERMOSTAT ­ ENGINE COOLING SYSTEM ENGINE ­ LIFT HOOKS КОМПЛЕКТ FUEL INJECTION PUMP FILTER, FUEL FUEL TANK FUEL LINES (IF USED) FUEL LINES (IF USED) FUEL INJECTION SYSTEM FUEL INJECTION SYSTEM ­ INJECTOR FUEL INJECTION SYSTEM ­ FUEL, SUPPLY FUEL INJECTION SYSTEM ­ MODULE, ENGINE FUEL INJECTION SYSTEM ­ HARNESS, ENGINE FUEL INJECTION SYSTEM ­ DRAIN LINE MOUNTING ­ PUMP, HYDROSTATIC TANDEM AND DRIVESHAFT HYDROSTATICS ­ PUMP, TANDEM SUPPLY AND RETURN TO FILTER HYDROSTATICS ­ MOTOR, DRIVE DIAGNOSTIC LINES MOUNTING ­ FINAL DRIVE COVERS ­ FINAL DRIVE FINAL DRIVE ASSY, DROP HOUSING FINAL DRIVE ASSY, HUB FILTER ASSY CONTROLS, FORWARD AND REVERSE HYDROSTATIC MOTOR HYDROSTATIC MOTOR PUMP ASSY ­ HYDROSTATIC PUMP ASSY ­ COMBINATION НАСОС, В СБОРЕ STARТER ALTERNATOR ASSY ALTERNATOR ­ MOUNTING BATTERY, SINGLE ­ CABLES (Jan 12 2009 2:39PM) BATTERY, DUAL ­ CANOPY, ROPS AND CAB (IF USED) ENGINE GROUND STRAP HARNESS, ENGINE (RIGHT­HAND SIDE) ­ ALTERNATOR/STARTER HARNESS, ENGINE (LEFT­HAND SIDE AND REAR) HARNESS, REAR WIRE HARNESS HARNESS, FRONT CONSOLE AND SWITCHES ­ CANOPY, ROPS HARNESS, FRONT CONSOLE AND SWITCHES ­ CAB HARNESS, CAB/CANOPY (Feb 12 2010 10:46AM) HARNESS, CAB/ CANOPY ROPS ­ HARNESS, MICROCONTROLLER CONSOLE, FRONT ­ CANOPY, ROPS CONSOLE, FRONT ­ CAB HARNESS, CANOPY HARNESS, LAMP ­ CANOPY, ROPS HARNESS ­ CAB LIGHTS HARNESS, LAMP ­ CAB ALARM, BACKUP ­ HORN GRID HEATER WIPER, FRONT ­ CAB WIPER, REAR ­ CAB THROTTLE, ELECTRIC RESERVOIR, HYDRAULIC ­ COVERS HYDRAULICS, EQUIPMENT ­ RESERVOIR TO PUMP AND CONTROL VALVE PUMP ASSY, HYDRAULIC ­ MODELS WITH PTO HYDRAULICS, EQUIPMENT ­ CONTROL VALVE ASSEMBLY, THERMAL BYPASS HYDRAULICS ­ LIFT CIRCUIT HYDRAULICS ­ TILT AND ANGLE HYDRAULICS ­ TILT CIRCUIT HYDRAULICS ­ ANGLE CIRCUIT HYDRAULICS ­ RIPPER, VALVE TO REAR OF TRACTOR HYDRAULICS ­ RIPPER, REAR OF TRACTOR TO CYLINDERS CYLINDER ASSY ­ LIFT CYLINDER ASSY ­ TILT CYLINDER ASSY ­ ANGLE CYLINDER ASSY ­ RIPPER VALVE, CONTROL ­ MOUNTING CONTROLS ­ LEVER AND LINKAGE, THREE SPOOL VALVE CONTROLS ­ LEVER AND LINKAGE, FOURTH SPOOL VALVE, CONTROL VALVE ASSY, RELIEF SECTION ASSEMBLY ­ LIFT SECTION ASSEMBLY ­ TILT, ANGLE, AND AUXILIARY VALVE ASSY, CHECK ­ VALVE ASSY, ANTI­CAVITATION VALVE ASSY, RELIEF FRAME, LIFT ­ CYLINDERS, MOUNTING DOZER BLADE ­ MOUNTING BLADE, DOZER ­ EDGES, CUTTING SHIELDS, DOZER HYDRAULICS RIPPER (IF USED) RIPPER (IF USED) COUNTERWEIGHT, FRONT ­ HOOK, TOWING DRAWBAR ­ HOOK, TOWING FRAME, MAIN UPPER MAIN FRAME, MOUNTING ­ HYDRAULIC AND FUEL TANK SEAT DOOR, REAR ­ TANK, HYDRAULIC OIL DOORS, REAR HOOD AND SIDE PANELS GUARD, RADIATOR BRUSH SCREEN ­ GRILLE, HOOD SEAT ASSY, MECHANICAL SUSPENSION ­ MOUNTING SEAT ASSY, MECНANICAL SUSPENSION SEAT ASSY, AIR SUSPENSION ­ MOUNTING SEAT ASSY, AIR SUSPENSION CANOPY, ROPS ­ FRAME, MOUNTING AND GRAB HANDLES CANOPY, ROPS ­ HEADLINER, FLOORMAT AND MIRROR CANOPY, ROPS ­ ARMRESTS, TOOLBOX AND COVERS CANOPY, ROPS ­ CONSOLES, SIDE CANOPY, ROPS ­ SCREENS CAB OR CANOPY ­ GUARD, BRUSH CAB OR CANOPY ­ TILT COMPONENTS CAB ­ FRAME AND MOUNTING CAB ­ MISCELLANEOUS COMPONENTS CAB ­ DOORS CAB ­ GLASS AND WINDOWS CAB ­ WINDOW VENTS ­ HARDWARE CAB ­ CONSOLES, SIDE CAB ­ COVERS, INTERIOR POSTS (MCLAUGHLIN CAB W/TILT OUT SIDE REAR WINDOW) CAB ­ COVERS, INTERIOR ROOF AND FLOOR CAB ­ MIRROR, SUN SHADE, GRAB HANDLE, DOME LAMP, ANTENNA CAB ­ WASHER, WINDSHIELD CAB ­ HEATING SYSTEM (AT ENGINE) CAB ­ HEATER AND AIR CONDITIONING CAB­ AIR CONDITIONING COMPRESSOR CAB ­ AIR CONDITIONING CONDENSER CAB ­ SCREEN, REAR DECALS ­ ENGLISH DECALS ­ ENGLISH DECALS ­ ENGLISH DECALS ­ CANADIAN FRENCH FRAME, TRACK ­ ROLLER AND RECOIL HOUSING FRAME, TRACK ­ COVERS SPROCKET, TRACK TRACK ADJUSTER AND IDLER ­ MOUNTING TRACK ADJUSTER TRACK IDLER TRACK ROLLER TRACK GUARDS TRACK CHAIN, SEALED TRACK CHAIN, SEALED AND LUBRICATED (SALT) TRACK CHAIN, EXTENDED LIFE / ADVANCE TRACK LIFE (ATL) BRAKE PEDAL AND FOOTREST MOUNTING PEDALS ­ BRAKE AND DECELERATOR BRAKE LINES BRAKE, PARKING/LOCKOUT LEVERS

1

2

3

4

4

4

Позиция на иллюстрации	Заводской номер детали		Название детали
1	4891024		SCREW, 12X130
2	4891025		SCREW, 12X150
3	87536218		Головка блока цилиндра
4	2830706		Прокладка головки цилиндра
4	2830707		Прокладка головки цилиндра
5	4895078		PLUG
6	4893036		PLUG, IN ALTERNATIVE

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
