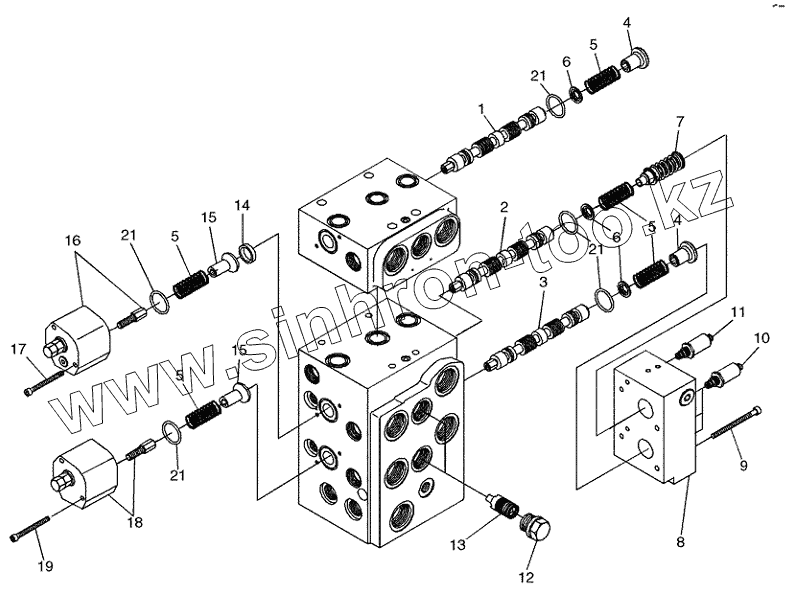

Позиция на иллюстрации
Заводской номер детали
Название детали
87658572
87658572
Распред клапан
87516646
87516646
Комплект уплотнительных колец
87516645
87516645
Фильтр
87516646
87516646
Комплект уплотнительных колец
87516645
87516645
Фильтр
1
87713183
Золотник
2
87713176
Золотник
3
87713172
Золотник
4
87516620
Фиксатор
5
87516617
Пружина
6
8604582
Фиксатор
7
87311985
Пружина
8
87516632
Крышка
9
87518268
Винт
10
87516634
Разгрузочный клапан
11
87516635
Картридж
12
87516612
Пробка
13
87516611
Золотник
14
87311986
Кольцо
15
87311984
Фиксатор
16
87516587
Крышка
17
864-5060
Винт с внутренним шестигранником
18
87516585
Крышка
19
864-5055
Винт с внутренним шестигранником
21
87516638
Комплект уплотнительных колец
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
