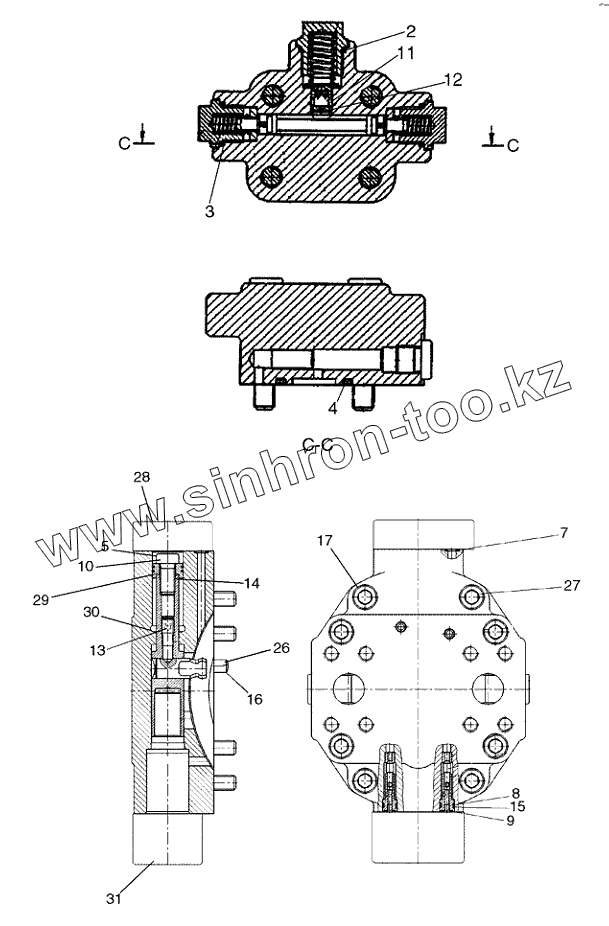

2
3
4
5
7
8
9
10
11
12
13
14
15
16
17
26
27
28
29
30
31
Позиция на иллюстрации
Заводской номер детали
Название детали
87313556
87313556
Мотор гидростатики
87516673
87516673
Штифт
87516676
87516676
Пробка
87516675
87516675
Пробка
87516672
87516672
Пробка
87516682
87516682
Уплотнительное кольцо
87516677
87516677
Винт с внутренним шестигранником
87516681
87516681
Винт с внутренним шестигранником
87516671
87516671
Винт с внутренним шестигранником
2
87441440
Уплотнительное кольцо
3
87441439
Уплотнительное кольцо
4
87441437
Уплотнительное кольцо
5
87516658
Клапан
7
238-8011
Уплотнительное кольцо
8
87441438
Уплотнительное кольцо
9
87441445
Уплотнительное кольцо
10
864-12025
Винт с внутренним шестигранником
11
87516679
Жиклер
12
87516678
Кольцо
13
87516660
Поршень
14
87516661
Поршень
15
87516662
Опорное кольцо
16
87516663
Штифт
17
87516683
Винт с внутренним шестигранником
26
87713168
Штифт
27
87713167
Винт
28
87713164
Клапан
29
87713166
Поршень
30
87713165
Поршень
31
87713163
Control Assy
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
