1
2
3
4
5
6
7
8
9
10
11
12

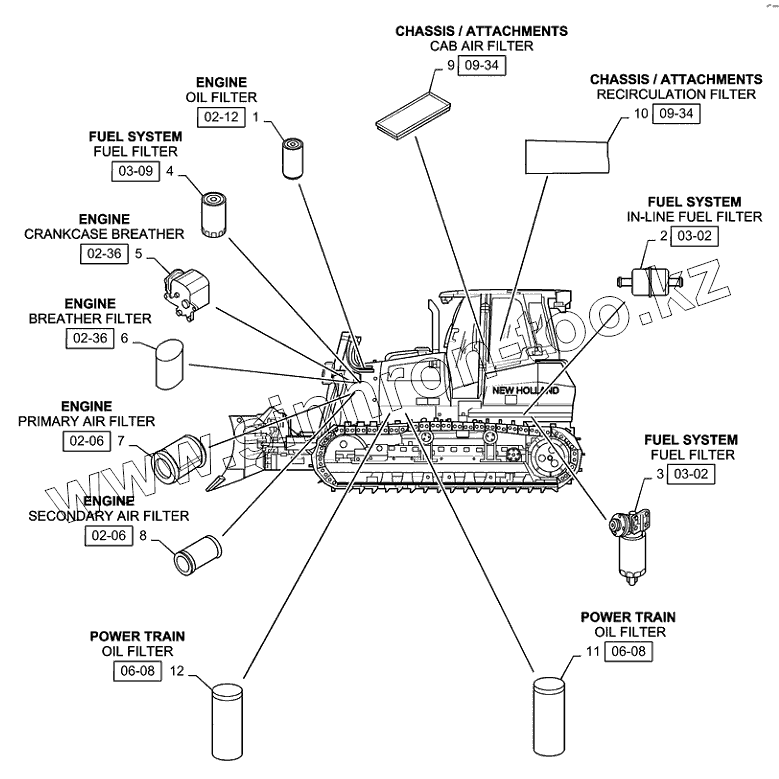

Позиция на иллюстрации
Заводской номер детали
Название детали
1
87803260
Масляный фильтр двиг
2
87400496
Фильтр
3
87803444
Топливный фильтр
4
87803197
Топливный фильтр
5
4892871
BREATHER, ASSY
6
2830592
Воздушный фильтр
7
392120A1
Фильтр
8
392121A1
Фильтр
9
87691825
Воздушный фильтр кабины
10
87397414
Воздушный фильтр кабины
11
254353A1
Фильтр
12
87404986
Фильтр
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
