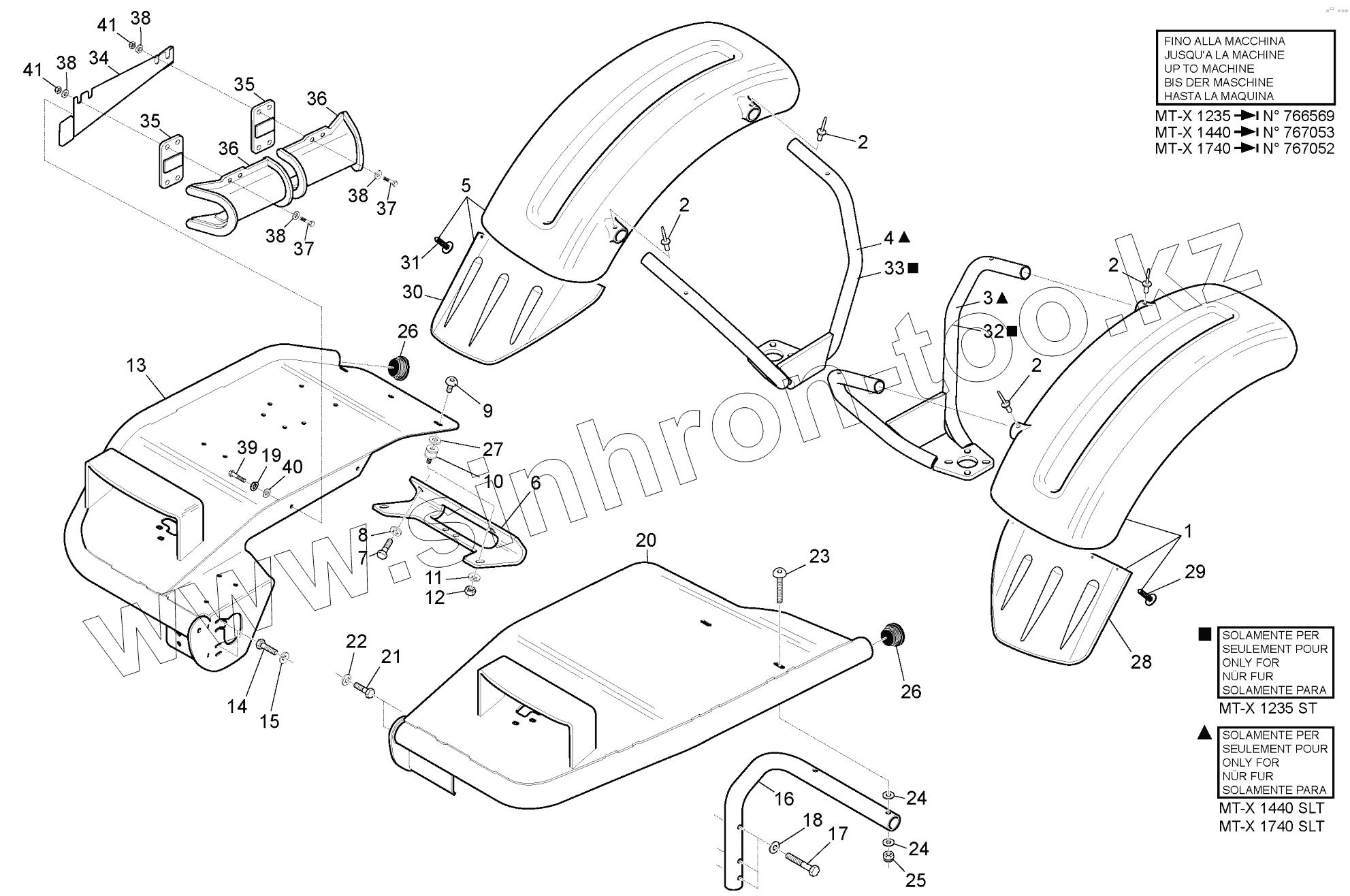

Каталог запасных частей к технике: MANITOU MT-X1740SLTS3-E3. MUD GUARD (FENDER)
1
2
2
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
26
26
27
28
29
30
31
32
33
34
35
35
36
36
37
37
38
38
38
38
39
40
41
41
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 250653 | Fender | |
| 2 | 77808 | Rivet | |
| 3 | 249472 | Support | |
| 4 | 249473 | Support | |
| 5 | 250652 | Fender | |
| 6 | 228526 | Support | |
| 7 | 42347 | Screw | |
| 8 | 63351 | Washer | |
| 9 | 228363 | Screw | |
| 10 | 294183 | Silent block | |
| 11 | 63351 | Washer | |
| 12 | 58528 | Nut | |
| 13 | 256073 | Mud guard | |
| 14 | 61323 | Screw | |
| 15 | 63351 | Washer | |
| 16 | 230854 | Support | |
| 17 | 31003 | Screw | |
| 18 | 29437 | Washer | |
| 19 | 42325 | Washer | |
| 20 | 256075 | Mud guard | |
| 21 | 61323 | Screw | |
| 22 | 63351 | Washer | |
| 23 | 228597 | Screw | |
| 24 | 229564 | Washer | |
| 25 | 54242 | Nut | |
| 26 | 228593 | Plug | |
| 27 | 229564 | Washer | |
| 28 | 704315 | Guard | |
| 29 | 704316 | Screw | |
| 30 | 704317 | Guard | |
| 31 | 704316 | Screw | |
| 32 | 249468 | Support | |
| 33 | 249469 | Support | |
| 34 | 53006856 | Support | |
| 35 | 908029 | Plate | |
| 36 | 908023 | Block | |
| 37 | 5804 | Screw | |
| 38 | 710761 | Washer | |
| 39 | 484718 | Screw | |
| 40 | 61674 | Washer | |
| 41 | 55714 | Nut |
