Каталог запасных частей к технике: MANITOU MT-X1740SLTS3-E3. HYDRAULIC (Principal circuit)
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
21
21
22
22
22
22
23
23
24
24
25
25
25
25
25
25
25
25
25
26
27
28
28
29
29
30
30
31
32
33
34
35
35
36
37
38
39
39
40
40
41
41
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
61
61
61
62
63
64
64
65
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
80
80
80
80
81
82
83
84
84
84
84
84

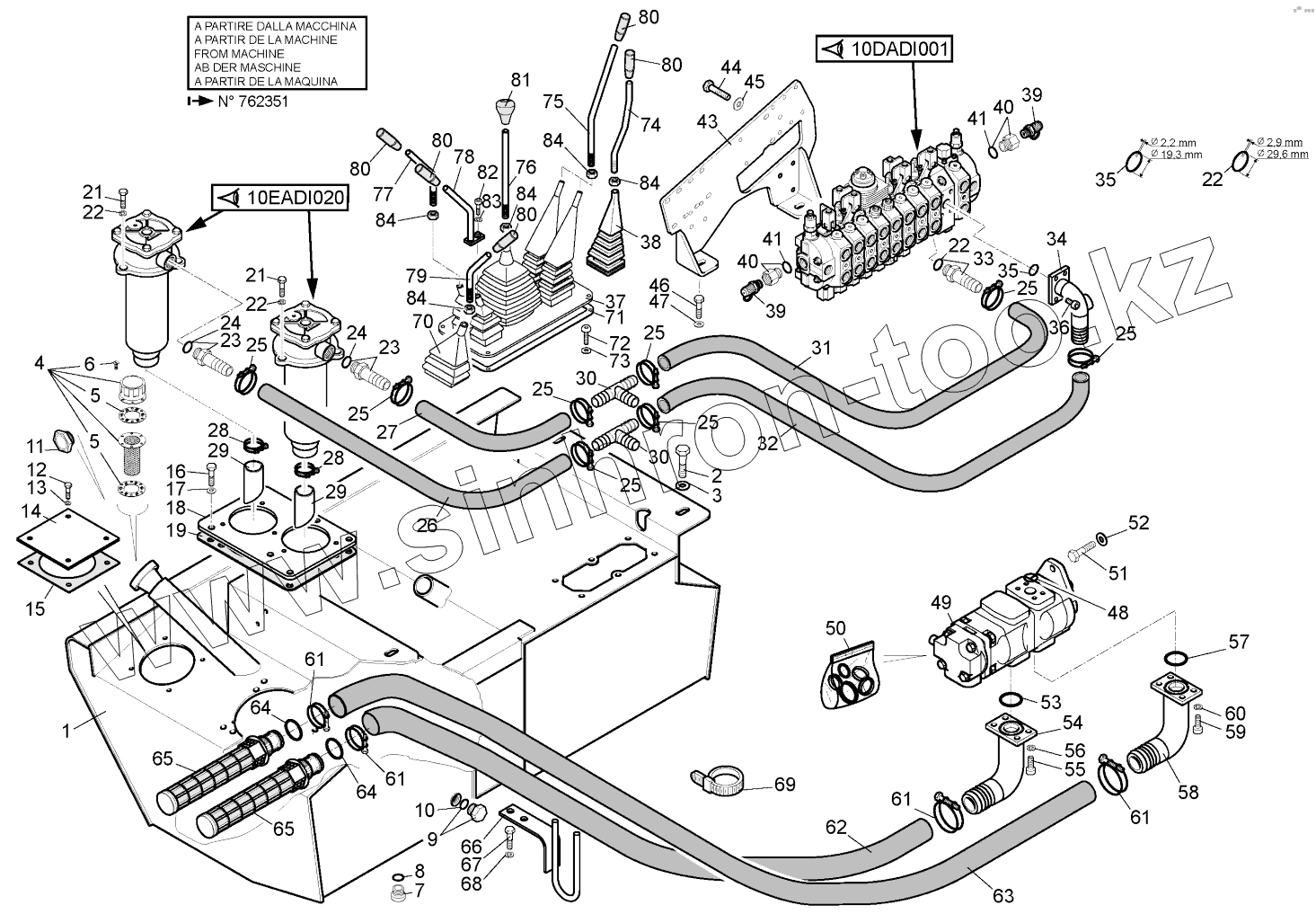

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 908095 | Tank | |
| 2 | 5804 | Screw | |
| 3 | 61675 | Washer | |
| 4 | 659917 | Plug | |
| 5 | 716931 | Seal | |
| 6 | 716960 | Screw | |
| 7 | 189535 | Plug | |
| 8 | 189536 | Watertight seal | |
| 9 | 215759 | Plug | |
| 10 | 190878 | Watertight seal | |
| 11 | 488236 | Level | |
| 12 | 42347 | Screw | |
| 13 | 42325 | Washer | |
| 14 | 213842 | Cover | |
| 15 | 205577 | Seal | |
| 16 | 44807 | Screw | |
| 17 | 3411 | Copper joint | |
| 18 | 209609 | Cover | |
| 19 | 209608 | Seal | |
| 21 | 42347 | Screw | |
| 22 | 42325 | Washer | |
| 23 | 192092 | Connection | |
| 24 | 169374 | O ring | |
| 25 | 31089 | Clamp | |
| 26 | 195062 | Hose | |
| 27 | 198355 | Hose | |
| 28 | 232025 | Clamp | |
| 29 | 264156 | Hose | |
| 30 | 256761 | Pipe fitting | |
| 31 | 63375 | Sleeve | |
| 32 | 173455 | Sleeve | |
| 33 | 192092 | Connection | |
| 34 | 214572 | Plate | |
| 35 | 27188 | O-ring | |
| 36 | 18805 | Screw | |
| 37 | 215919 | Flexible dust cover | |
| 38 | 209603 | Flexible dust cover | |
| 39 | 72339 | Pipe fitting | |
| 40 | 209639 | Pipe fitting | |
| 41 | 169372 | O ring | |
| 43 | 289435 | Support | |
| 44 | 42347 | Screw | |
| 45 | 61674 | Washer | |
| 46 | 63547 | Screw | |
| 47 | 77710 | Washer | |
| 48 | 261333 | Pump | |
| 49 | 747220 | Valve | |
| 50 | 747145 | Seal kit | |
| 51 | 2437 | Screw | |
| 52 | 77710 | Washer | |
| 53 | 4039 | O ring | |
| 54 | 264471 | Flange | |
| 55 | 51510 | Screw | |
| 56 | 42232 | Washer | |
| 57 | 908393 | O-ring | |
| 58 | 219499 | Plate | |
| 59 | 168425 | Screw | |
| 60 | 42231 | Washer | |
| 61 | 232027 | Clamp | |
| 62 | 261583 | Sleeve | |
| 63 | 261584 | Sleeve | |
| 64 | 748114 | O-ring | |
| 65 | 257603 | Filter | |
| 66 | 210477 | Support | |
| 67 | 63547 | Screw | |
| 68 | 42231 | Washer | |
| 69 | 21980 | Clamp | |
| 70 | 213688 | Flexible dust cover | |
| 71 | 218497 | Support | |
| 72 | 189172 | Screw | |
| 73 | 189857 | Washer | |
| 74 | 218479 | Lever | |
| 75 | 213613 | Lever | |
| 76 | 209601 | Lever | |
| 77 | 213614 | Lever | |
| 78 | 229408 | Lever | |
| 79 | 213616 | Lever | |
| 80 | 202226 | Handle | |
| 81 | 209640 | Handle | |
| 82 | 168425 | Screw | |
| 83 | 42231 | Washer | |
| 84 | 58548 | Nut |
