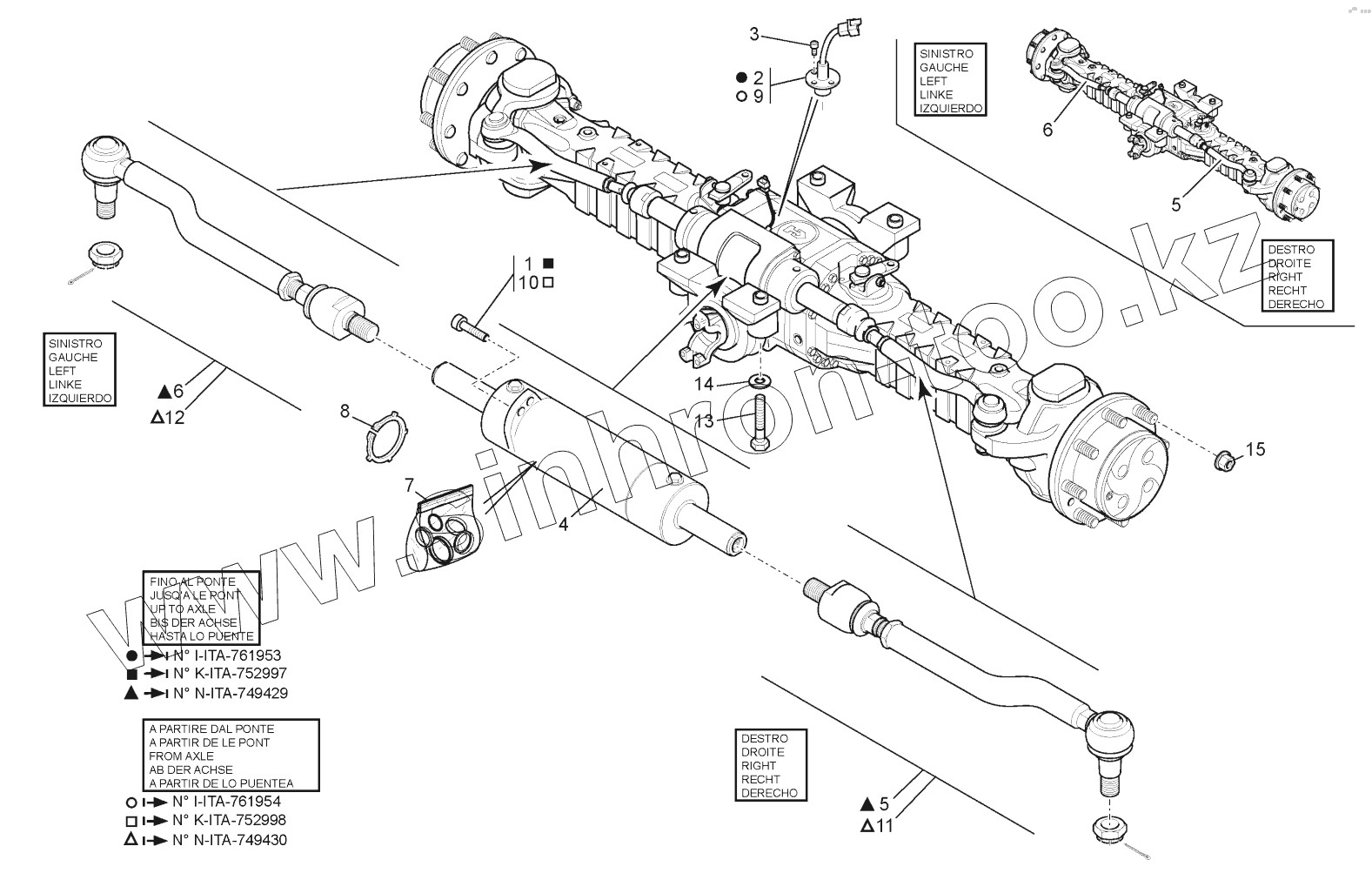

Каталог запасных частей к технике: MANITOU MT-X1740SLTS3-E3. FRONT AXLE STEERING SYSTEM

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано MLT 625-75 H (2011) MT-X1235STS3-E3 (2019) MT-X1440SLTS4-E3 (2019) MT-X1740SLTS3-E3 (2019)

Схема > Не выбрано ADHESIVE SIGNS ADHESIVE SIGNS FILTERS AND BELTS FILTERS AND BELTS BODY - FRAME SOUND-PROOFING COUNTERWEIGHT MUD GUARD (FENDER) SOUND PROOFING CAB ADAPTATION CAB ADAPTATION ELECTRICITY (DETALIS) ELECTRICITY (FUSE AND RELAY BOX) CIRCUIT - HARNESS CIRCUIT - HARNESS CIRCUIT - HARNESS LIGHTING - SIGNALING SWITCH ELECTRICITY (APPLICAION MISCHELLANEOUS AND AUXILIARES) PEDALS - LINKAGE BRAKES CIRCUIT HYDRAULIC (STREERING CIRCUIT) HYDRAULIC (Lifting compensation circuit -jib feed circuit) HYDRAULIC (Compensation-tilting-telescope-optional circuit) HYDRAULIC (Levelling system circuit) HYDRAULIC (Lifting compensation circuit) HYDRAULIC (Principal circuit) HYDRAULIC (Principal circuit) HYDRAULIC (Principal circuit) LUBRICATING OIL FILLER HYDRAULIC (Stabilizer circuit) HYDRAULIC (Jib feed circuit) HYDRAULIC (Jib circuit) HYDRAULIC (Jib circuit) CONTROL VALVE HYDRAULIC (DETALIS) HYDRAULIC (Compensation cylinder) HYDRAULIC (Leveling cylinder) HYDRAULIC (Lifting cylinder) HYDRAULIC (Tilt cylinder) HYDRAULIC (Stabilizer cylinder) HYDRAULIC (Telescope cylinder) HYDRAULIC (Telescope cylinder) TELESCOPIC BOOM DUST KIT FORK HOLDER CYLINDER BLOCK CRANKSHAFT, PISTONS AND CONNECTING RODS CYLINDER HEAD ROCKER SHAFT TIMING LUBRICATING BREATHER - LUBRICATING OIL FILTER APPLICAION MISCHELLANEOUS AND AUXILIARES LUBRICATING OIL SUMP - DIPSTIK & FILLER TUBE APPLICAION MISCHELLANEOUS AND AUXILIARES WATER PUMP WATER OUTLET AND INLET FUEL INJECTION EQUIPMENT (DIESEL) STARTER MOTOR ALTERNATOR AND GENERATOR TURBOCHANGER LEAK-OFF PIPES ENGINE-TRANSMISSION ADAPTATION ENGINE-TRANSMISSION ADAPTATION (Combustible circuit) ENGINE-TRANSMISSION ADAPTATION ENGINE-TRANSMISSION ADAPTATION ENGINE-TRANSMISSION ADAPTATION ENGINE-TRANSMISSION ADAPTATION ENGINE-TRANSMISSION ADAPTATION ENGINE-TRANSMISSION ADAPTATION HAND BRAKE REAR AXLE CASING REAR AXLE CASING REAR AXLE DIFFERENTIAL REAR AXLE DIFFERENTIAL REAR AXLE REDUCTION GEAR REAR AXLE REDUCTION GEAR REAR AXLE REDUCTION GEAR REAR AXLE REDUCTION GEAR REAR AXLE HYDRAULIC BRAKE REAR AXLE HYDRAULIC BRAKE REAR AXLE HYDRAULIC BRAKE REAR AXLE STEERING SYSTEM REAR AXLE STEERING SYSTEM OSCILLANTINGS SUPPORTS OSCILLANTINGS SUPPORTS REAR AXLE CASING REAR AXLE CASING REAR AXLE STEERING SYSTEM REAR AXLE STEERING SYSTEM REAR AXLE DIFFERENTIAL REAR AXLE DIFFERENTIAL REAR AXLE REDUCTION GEAR REAR AXLE REDUCTION GEAR REAR AXLE HYDRAULIC BRAKE REAR AXLE HYDRAULIC BRAKE OSCILLANTINGS SUPPORTS OSCILLANTINGS SUPPORTS FRONT AXLE CASING FRONT AXLE CASING FRONT AXLE DIFFERENTIAL FRONT AXLE DIFFERENTIAL FRONT AXLE REDUCTION GEAR FRONT AXLE REDUCTION GEAR FRONT AXLE REDUCTION GEAR FRONT AXLE HYDRAULIC BRAKE FRONT AXLE HYDRAULIC BRAKE FRONT AXLE STEERING SYSTEM FRONT AXLE STEERING SYSTEM OSCILLANTINGS SUPPORTS OSCILLANTINGS SUPPORTS FRONT AXLE CASING FRONT AXLE DIFFERENTIAL FRONT AXLE DIFFERENTIAL FRONT AXLE REDUCTION GEAR FRONT AXLE HYDRAULIC BRAKE FRONT AXLE HYDRAULIC BRAKE FRONT AXLE STEERING SYSTEM OSCILLANTINGS SUPPORTS OSCILLANTINGS SUPPORTS FRONT AXLE CASING FRONT AXLE DIFFERENTIAL FRONT AXLE REDUCTION GEAR FRONT AXLE HYDRAULIC BRAKE FRONT AXLE HYDRAULIC BRAKE FRONT AXLE STEERING SYSTEM WHEELS SEAT CAB (DETALIS) CAB (DETALIS) CAB (DETALIS) CAB (DETALIS) CAB (DETALIS) CAB (DETALIS) CAB (DETALIS) CAB (DETALIS) PNEUMATIC SEAT HEATING ELECTRICITY (DETALIS) CARDAN COUPLING ENGINE -ANGLE RETURN FRONT CARDAN SHAFT REAR CARDAN SHAFT CARDAN SHAFT GEAR BOX GEAR BOX GEAR BOX GEAR BOX ANGLE RETURN CAB (DETALIS) CAB (DETALIS) CAB (DETALIS) CAB (DETALIS) CAB (DETALIS) CAB (DETALIS) CAB (DETALIS) CAB (DETALIS) CAB (DETALIS) A/C CIRCUIT A/C CIRCUIT A/C CIRCUIT

1

2

3

4

5

5

6

6

7

8

9

10

15

Позиция на иллюстрации	Заводской номер детали		Название детали
1	562526		Screw
2	603872		Wheel alignment switch
3	748436		Screw
4	564138		Steering cylinder
5	564137		Tie rod
6	564136		Tie rod
7	563007		Steering cylinder seal kit
8	719798		Ring
9	745165		Wheel alignment switch
10	748435		Screw
15	781678		Nut

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
