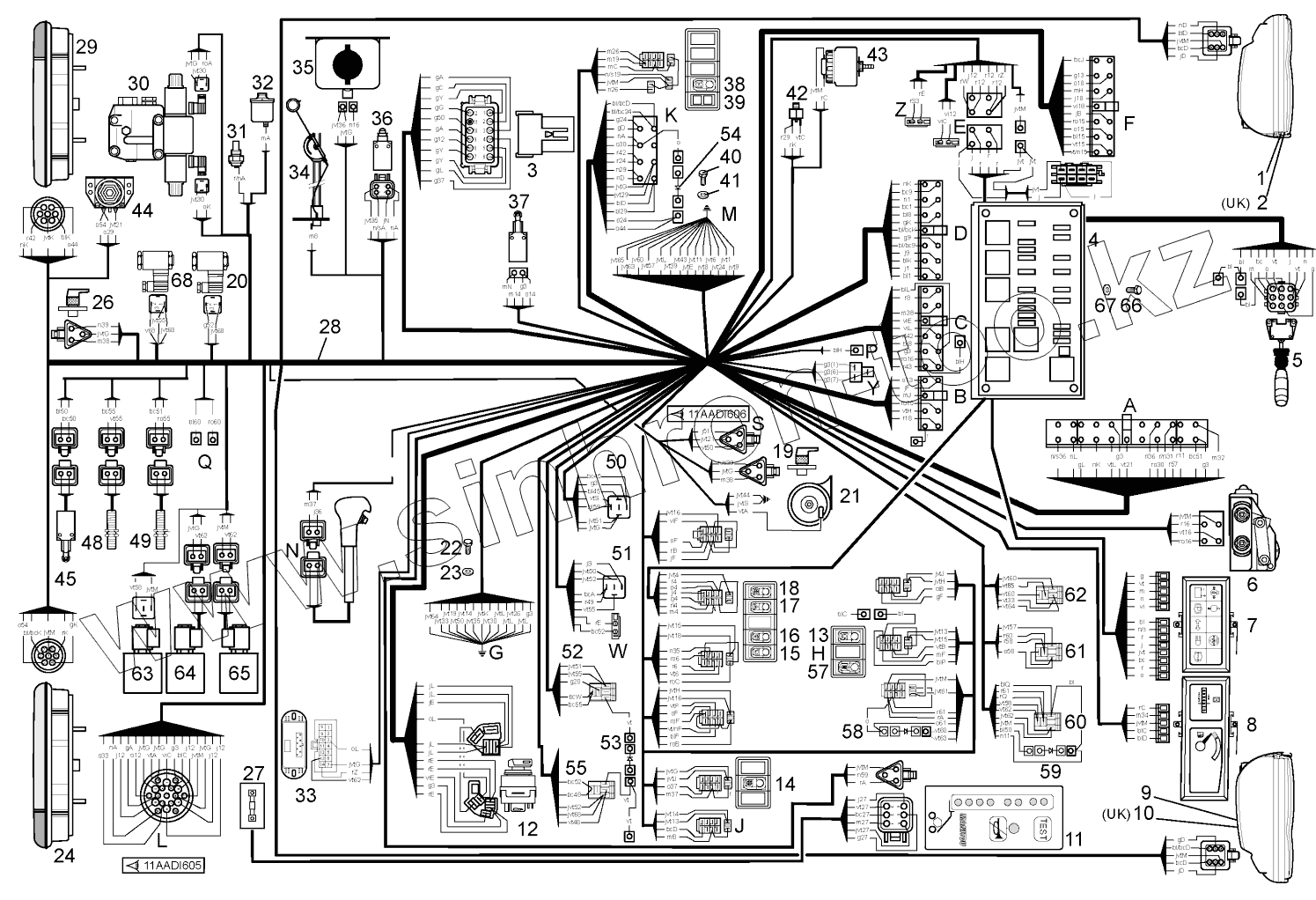

Каталог запасных частей к технике: MANITOU MT-X1740SLTS3-E3. CIRCUIT - HARNESS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
48
49
50
51
52
53
54
55
57
58
59
60
61
62
63
64
65
66
67
68
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 265416 | Complete left-hand front headlight | |
| 2 | 265418 | Complete left-hand front headlight uk | |
| 3 | 220408 | Shunt | |
| 4 | 243565 | Plate relay and fuses | |
| 5 | 191384 | Selector switch | |
| 6 | 563827 | Motor | |
| 7 | 686343 | Panel | |
| 8 | 243348 | Dashboard | |
| 9 | 265415 | Complete right-hand front headlight | |
| 10 | 265417 | Complete right-hand front headlight uk | |
| 11 | 253212 | Board | |
| 12 | 53013059 | Switch | |
| 13 | 272629 | Rotating beacon light switch | |
| 14 | 272630 | Travel cut-off switch | |
| 15 | 272628 | Switch | |
| 16 | 272627 | Switch | |
| 17 | 272626 | Hazard warning light switch | |
| 18 | 272625 | Switch | |
| 19 | 745165 | Wheel alignment switch | |
| 20 | 224823 | Safety valve block | |
| 21 | 20125 | Horn | |
| 22 | 42347 | Screw | |
| 23 | 61674 | Washer | |
| 24 | 223766 | Complete right rear light | |
| 26 | 745165 | Wheel alignment switch | |
| 27 | 241976 | Strain-gage | |
| 28 | 53013075 | Wiring | |
| 29 | 223767 | Complete left rear light | |
| 30 | 702639 | Electrical control valve | |
| 31 | 702388 | Oil temperature sensor | |
| 32 | 705009 | Transmission oil pressure pressure switch | |
| 33 | 272668 | Discharge valve modulus | |
| 34 | 202994 | Indicator | |
| 35 | 551538 | Tank | |
| 36 | 279810 | Handbrake switch | |
| 37 | 192203 | Switch | |
| 38 | 272624 | Switch | |
| 39 | 224762 | Indicator lamp | |
| 40 | 42347 | Screw | |
| 41 | 61674 | Washer | |
| 42 | 264297 | Pressure switch | |
| 43 | 236147 | Brake fluid reservoir | |
| 44 | 76925 | Reversing sound alarm | |
| 45 | 266538 | Switch | |
| 48 | 246337 | Detector | |
| 49 | 240598 | Detector | |
| 50 | 231243 | Relay | |
| 51 | 231243 | Relay | |
| 52 | 225183 | Relay | |
| 53 | 237093 | Diode | |
| 54 | 254428 | Diode | |
| 55 | 225183 | Relay | |
| 57 | 271802 | Movements cut out switch | |
| 58 | 229040 | Diode | |
| 59 | 229040 | Diode | |
| 60 | 225183 | Relay | |
| 61 | 225183 | Relay | |
| 62 | 245700 | Relay | |
| 63 | 252312 | Electrovalve | |
| 64 | 278147 | Valve | |
| 65 | 278073 | Valve | |
| 66 | 230853 | Screw | |
| 67 | 54232 | Nut | |
| 68 | 224823 | Safety valve block |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
