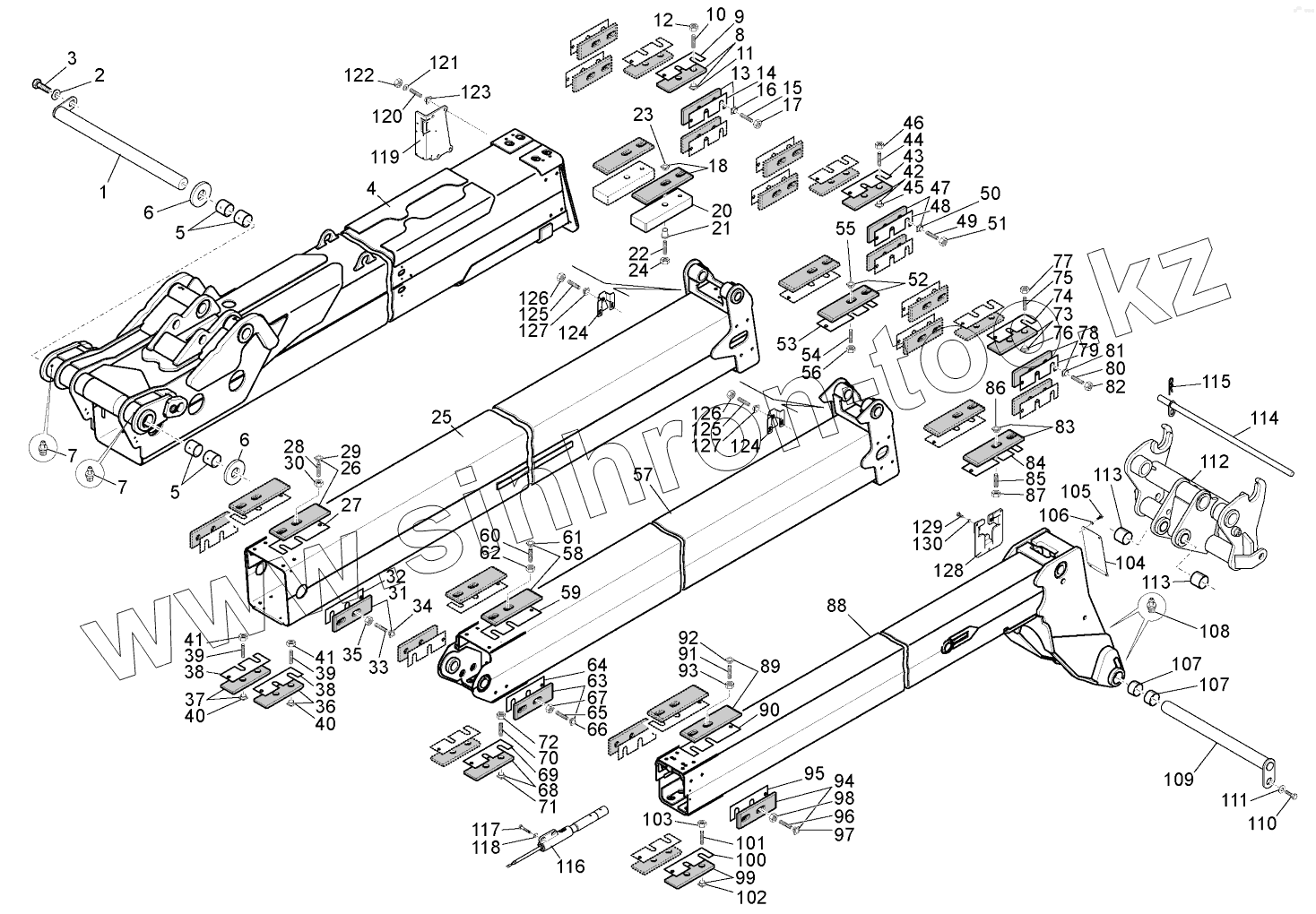

Каталог запасных частей к технике: MANITOU MT-X1440SLTS4-E3. TELESCOPIC BOOM

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
5
6
6
6
6
7
7
8
9
9
9
9
10
11
12
13
14
14
14
14
15
16
17
18
20
21
22
23
24
25
26
27
27
27
27
28
29
30
31
32
32
32
32
33
34
35
36
37
38
38
38
38
38
38
38
38
38
38
38
38
39
39
40
40
41
41
42
43
43
43
43
44
45
46
47
48
48
48
48
49
50
51
52
53
53
53
53
54
55
56
57
58
59
59
59
59
60
61
62
63
64
64
64
64
65
66
67
68
69
69
69
69
70
71
72
73
74
74
74
74
75
76
77
78
79
79
79
79
80
81
82
83
83
84
84
84
84
85
86
87
88
89
90
90
90
90
91
92
93
94
95
95
95
95
96
97
98
99
100
100
100
100
101
102
103
104
105
106
107
107
108
109
110
111
112
113
113
114
115
116
117
118
119
120
121
122
123
124
124
125
125
126
126
127
127
128
129
130
Позиция на иллюстрации Заводской номер детали Название детали
1 264559 Pin
2 73202 Washer
3 58610 Screw
4 909592 Arm
5 208286 Bushing
6 185402 Thickness
6 185403 Thickness
7 51534 Straight greaser
8 218962 Shoe
9 188472 Shim
9 188473 Shim
9 188542 Shim
9 218395 Shim
10 188546 Screw
11 188441 Insert
12 58548 Nut
13 218962 Shoe
14 188472 Shim
14 188473 Shim
14 188542 Shim
14 218395 Shim
15 188546 Screw
16 188441 Insert
17 58548 Nut
18 218966 Shoe
20 269383 Shim
21 269377 Ring
22 196078 Screw
23 188441 Insert
24 58548 Nut
25 252837 Arm
26 218966 Shoe
27 211442 Shim 1 mm
27 211443 Shim 2 mm
27 218396 Shim 0,5 mm
27 218398 Shim 4 mm
28 193756 Screw
29 188441 Insert
30 58548 Nut
31 218962 Shoe
32 199303 Thickness
32 199874 Thickness
32 199875 Shim
32 219068 Shim
33 1479 Screw
34 188441 Insert
35 58548 Nut
36 288284 Sliding block
37 288286 Sliding block
38 199303 Thickness
38 199874 Thickness
38 199875 Shim
38 219068 Shim
39 1479 Screw
40 188441 Insert
41 58548 Nut
42 218962 Shoe
43 199303 Thickness
43 199874 Thickness
43 199875 Shim
43 219068 Shim
44 188546 Screw
45 188441 Insert
46 58548 Nut
47 218962 Shoe
48 199303 Thickness
48 199874 Thickness
48 199875 Shim
48 219068 Shim
49 207524 Screw
50 188441 Insert
51 58548 Nut
52 218966 Shoe
53 211442 Shim 1 mm
53 211443 Shim 2 mm
53 218396 Shim 0,5 mm
53 218398 Shim 4 mm
54 207524 Screw
55 188441 Insert
56 58548 Nut
57 258053 Arm
58 218966 Shoe
59 211442 Shim 1 mm
59 211443 Shim 2 mm
59 218396 Shim 0,5 mm
59 218398 Shim 4 mm
60 193756 Screw
61 188441 Insert
62 58548 Nut
63 218962 Shoe
64 188472 Shim
64 188473 Shim
64 188542 Shim
64 218395 Shim
65 204508 Screw
66 188441 Insert
67 58548 Nut
68 218962 Shoe
69 188472 Shim
69 188473 Shim
69 188542 Shim
69 218395 Shim
70 1479 Screw
71 188441 Insert
72 58548 Nut
73 218962 Shoe
74 188472 Shim
74 188473 Shim
74 188542 Shim
74 218395 Shim
75 1479 Screw
76 188441 Insert
77 58548 Nut
78 218968 Shoe
79 199303 Thickness
79 199874 Thickness
79 199875 Shim
79 219068 Shim
80 207524 Screw
81 188441 Insert
82 58548 Nut
83 218966 Shoe
83 218966 Shoe
84 211442 Shim 1 mm
84 211443 Shim 2 mm
84 218396 Shim 0,5 mm
84 218398 Shim 4 mm
85 207524 Screw
86 188441 Insert
87 58548 Nut
88 909593 Arm
89 218966 Shoe
90 211442 Shim 1 mm
90 211443 Shim 2 mm
90 218396 Shim 0,5 mm
90 218398 Shim 4 mm
91 204508 Screw
92 188441 Insert
93 58548 Nut
94 218962 Shoe
95 188472 Shim
95 188473 Shim
95 188542 Shim
95 218395 Shim
96 204508 Screw
97 188441 Insert
98 58548 Nut
99 218962 Shoe
100 188472 Shim
100 188473 Shim
100 188542 Shim
100 218395 Shim
101 225003 Screw
102 188441 Insert
103 58548 Nut
104 252701 Cover plate
105 54951 Screw
106 42325 Washer
107 208312 Ring
108 51534 Straight greaser
109 910612 Pin
110 58610 Screw
111 73202 Washer
112 925776 Carrier
113 208251 Bushing
114 213666 Spindle
115 32963 Clip pin
116 236245 Detector assy
117 42347 Screw
118 61674 Washer
119 220662 Bracket
120 220391 Screw
121 61676 Washer
122 58548 Nut
123 188441 Insert
124 220660 Support
125 188545 Screw
126 58548 Nut
127 188441 Insert
128 220653 Support
129 54951 Screw
130 42325 Washer
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
