Каталог запасных частей к технике: MANITOU MT-X1440SLTS4-E3. BRAKES CIRCUIT
1
1
2
2
2
2
3
3
3
3
4
4
4
4
4
4
4
4
4
4
4
4
4
5
6
6
7
8
8
9
10
11
12
13
14
15
15
16
17
18
18
19
19
20
21
22
23
24
25
26
26
27
28
29
29
30
31
32
33
34
35
36
37
38
39
40
40
41
42
43
44
45
46
47
48
48
49
50
51
51
52
52
52
52
52
53
53
54
55
56
57
57
57
57
58
58
59
59
60
60
61
62
63
63
64
64
65
66
67
68
69
70
71
72
72
73
74
74
75

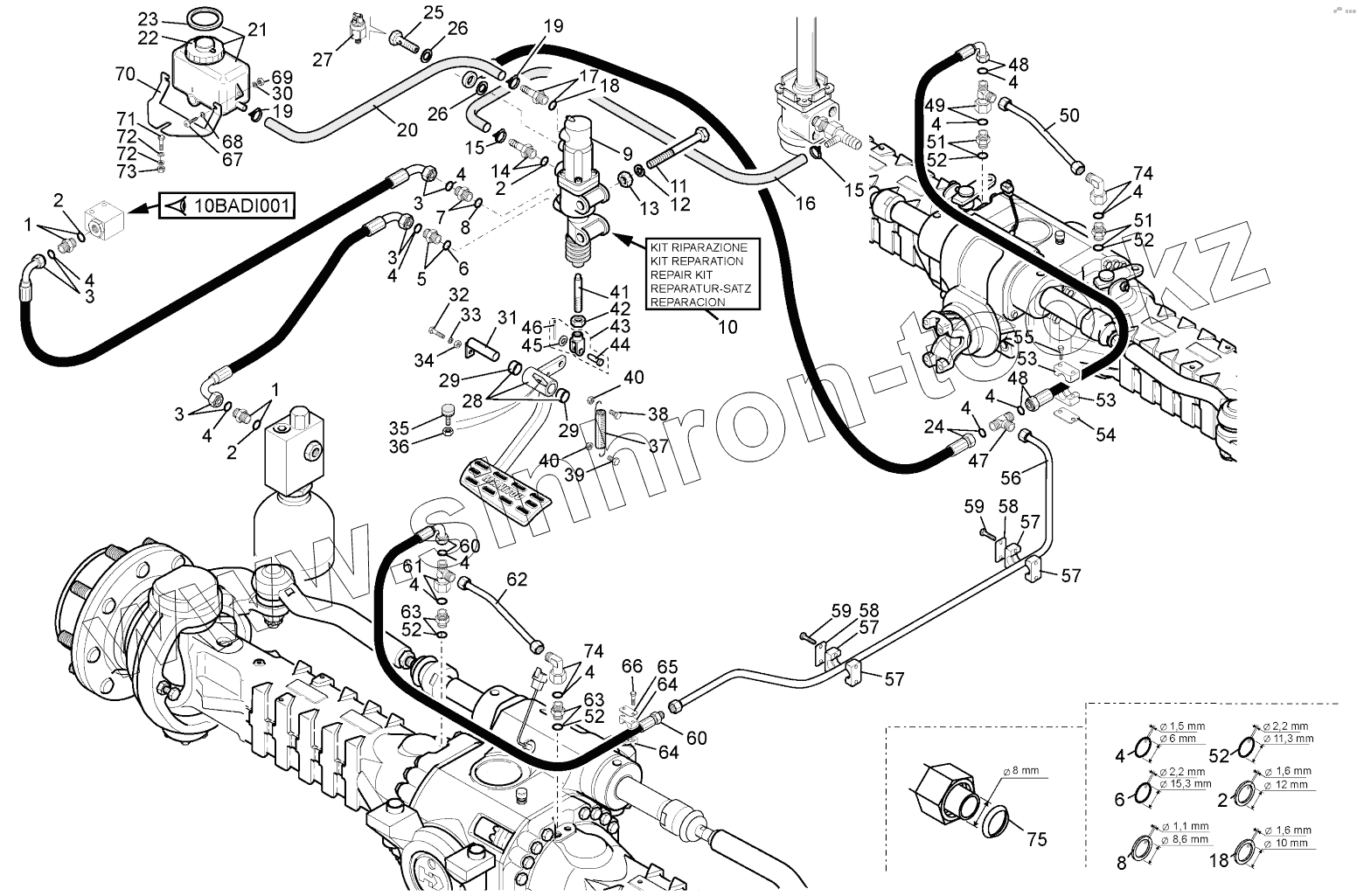

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 191197 | Union | |
| 2 | 177636 | Watertight seal | |
| 3 | 213523 | Hose | |
| 4 | 190013 | O ring | |
| 5 | 213046 | Union | |
| 6 | 169552 | O ring | |
| 7 | 212828 | Union | |
| 8 | 209249 | Watertight seal | |
| 9 | 271981 | Master cylinder | |
| 10 | 782418 | Repair kit | |
| 11 | 41562 | Screw | |
| 12 | 42231 | Washer | |
| 13 | 50150 | Nut | |
| 14 | 212406 | Pipe fitting | |
| 15 | 31468 | Clamp | |
| 16 | 211954 | Sleeve | |
| 17 | 237907 | Notched union | |
| 18 | 177635 | Watertight seal | |
| 19 | 227352 | Clamp | |
| 20 | 237934 | Sleeve | |
| 21 | 236147 | Brake fluid reservoir | |
| 22 | 602033 | Plug | |
| 23 | 602032 | Seal | |
| 24 | 193737 | Hose | |
| 25 | 190431 | Banjo fitting | |
| 26 | 3411 | Copper joint | |
| 27 | 264297 | Pressure switch | |
| 28 | 267444 | Foot brake pedal | |
| 29 | 172569 | Ring | |
| 30 | 78806 | Washer | |
| 31 | 209198 | Pin | |
| 32 | 46668 | Screw | |
| 33 | 42316 | Washer | |
| 34 | 25714 | Nut | |
| 35 | 190427 | Rubber stop | |
| 36 | 3212 | Nut | |
| 37 | 80308 | Spring | |
| 38 | 42347 | Screw | |
| 39 | 61323 | Screw | |
| 40 | 3212 | Nut | |
| 41 | 183705 | Push | |
| 42 | 50150 | Nut | |
| 43 | 12109 | Fork | |
| 44 | 2417 | Pin | |
| 45 | 5160 | Washer | |
| 46 | 61344 | Pin | |
| 47 | 78081 | T-connector | |
| 48 | 514218 | Hose | |
| 49 | 190442 | Adaptor t-connector | |
| 50 | 221775 | Hose | |
| 51 | 175498 | Union | |
| 52 | 177588 | O ring | |
| 53 | 168487 | Half clamp | |
| 54 | 237221 | Small plate | |
| 55 | 60950 | Screw | |
| 56 | 220358 | Hose | |
| 57 | 173004 | Half clamp | |
| 58 | 168847 | Protection plate | |
| 59 | 54305 | Screw | |
| 60 | 211701 | Hose | |
| 61 | 190442 | Adaptor t-connector | |
| 62 | 221775 | Hose | |
| 63 | 175498 | Union | |
| 64 | 168487 | Half clamp | |
| 65 | 168490 | Protection plate | |
| 66 | 29481 | Screw | |
| 67 | 61801 | Screw | |
| 68 | 28988 | Washer | |
| 69 | 25758 | Nut | |
| 70 | 237893 | Support | |
| 71 | 42347 | Screw | |
| 72 | 63351 | Washer | |
| 73 | 58528 | Nut | |
| 74 | 497922 | Elbow connector adaptor | |
| 75 | 177275 | Watertight seal |
