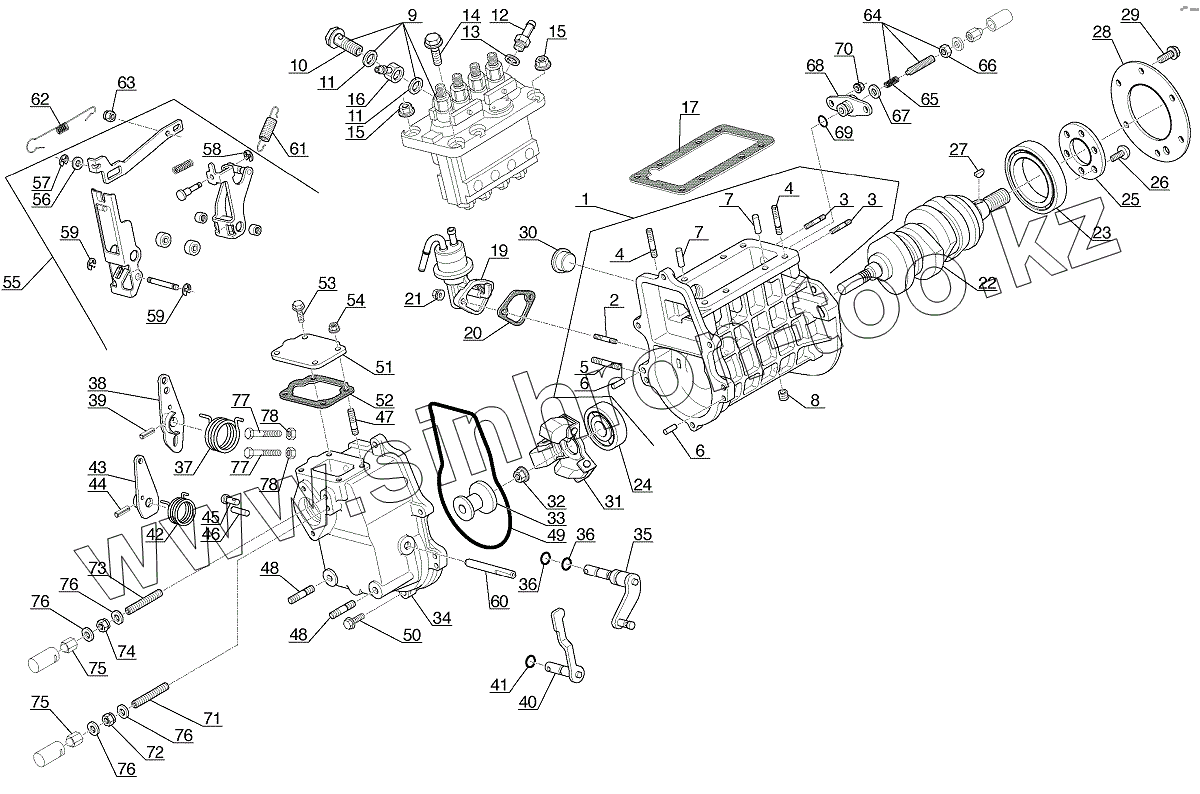

Каталог запасных частей к технике: MANITOU MLT 625-75 H. INJECTION PUMP, AK 248
1
2
3
3
4
4
5
6
6
7
7
8
9
10
11
11
12
13
14
15
15
16
17
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
36
37
38
39
40
41
42
43
44
45
46
47
48
48
49
50
51
52
53
54
56
57
58
59
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
75
76
76
76
76
77
77
78
78
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 749335 | Pump bracket | |
| 2 | 706262 | Stud-bolt | |
| 3 | 749336 | Stud-bolt | |
| 4 | 823592 | Stud-bolt | |
| 5 | 823418 | Stud-bolt | |
| 6 | 749337 | Pin | |
| 7 | 823408 | Centering pin | |
| 8 | 565346 | Plug | |
| 9 | 749338 | Injection pump | |
| 10 | 749339 | Hollow screw | |
| 11 | 749340 | Seal | |
| 12 | 749341 | Connection | |
| 13 | 564994 | Seal | |
| 14 | 823846 | Screw | |
| 15 | 823593 | Nut | |
| 16 | 749342 | Connection | |
| 17 | 749343 | Gasket | |
| 19 | 826332 | Fuel pump | |
| 20 | 565394 | Seal | |
| 21 | 706822 | Nut | |
| 22 | 749345 | Shaft | |
| 23 | 749346 | Bearing | |
| 24 | 749347 | Bearing | |
| 25 | 749348 | Fastening plate | |
| 26 | 749349 | Screw | |
| 27 | 823921 | Key | |
| 28 | 749350 | Fastening plate | |
| 29 | 706786 | Detent screw | |
| 30 | 823847 | Cover | |
| 31 | 749351 | Deadhead | |
| 32 | 749352 | Nut | |
| 33 | 749353 | Coupling | |
| 34 | 749354 | Housing | |
| 35 | 749355 | Lever | |
| 36 | 706796 | O ring | |
| 37 | 749356 | Spring | |
| 38 | 749357 | Accelerator lever | |
| 39 | 749358 | Pin | |
| 40 | 749359 | Lever | |
| 41 | 706796 | O ring | |
| 42 | 749360 | Spring | |
| 43 | 749361 | Lever | |
| 44 | 749358 | Pin | |
| 45 | 823863 | Pin | |
| 46 | 823864 | Pin | |
| 47 | 600175 | Stud-bolt | |
| 48 | 749362 | Stud-bolt | |
| 49 | 823939 | Seal | |
| 50 | 823622 | Screw | |
| 51 | 749363 | Fastening plate | |
| 52 | 823581 | Seal | |
| 53 | 706786 | Detent screw | |
| 54 | 706822 | Nut | |
| 55 | 749364 | Complete lever | |
| 56 | 749365 | Washer | |
| 57 | 749366 | Circlip | |
| 58 | 749367 | Circlip | |
| 59 | 749368 | Circlip | |
| 60 | 749369 | Pin | |
| 61 | 749571 | Spring | |
| 62 | 749372 | Spring | |
| 63 | 823940 | Nut | |
| 64 | 749373 | Adjusting screw | |
| 65 | 749374 | Spring | |
| 66 | 749375 | Nut | |
| 67 | 564994 | Seal | |
| 68 | 749376 | Bracket | |
| 69 | 749377 | O ring | |
| 70 | 706822 | Nut | |
| 71 | 749378 | Adjusting screw | |
| 72 | 706291 | Nut | |
| 73 | 749570 | Adjusting screw | |
| 74 | 706291 | Nut | |
| 75 | 706289 | Nut | |
| 76 | 565288 | Seal | |
| 77 | 749380 | Adjusting screw | |
| 78 | 565148 | Nut |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
