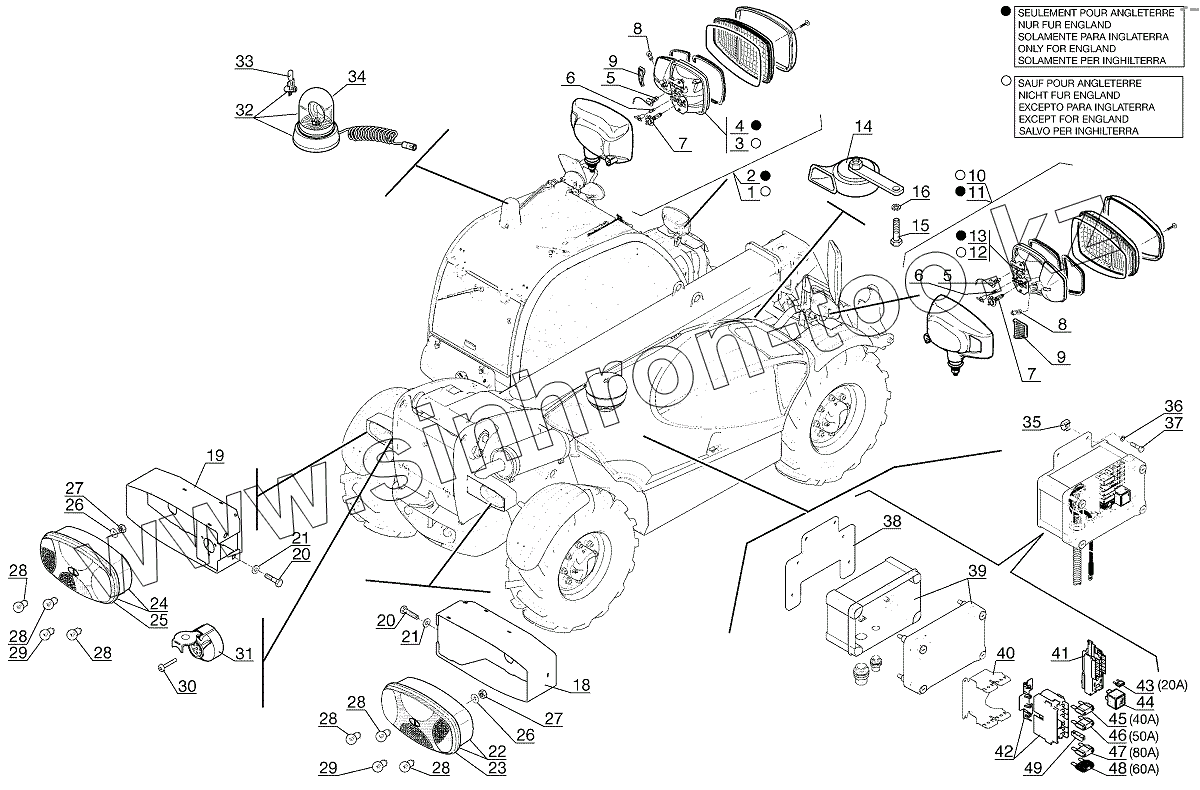

Каталог запасных частей к технике: MANITOU MLT 625-75 H. ELECTRICITY (Details), 11 CB 1132
1
2
3
4
5
5
6
6
7
7
8
8
9
9
10
11
12
13
14
15
16
18
19
20
20
21
21
22
23
24
25
26
26
27
27
28
28
28
28
28
28
29
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 265416 | Complete left-hand front headlight | |
| 2 | 265418 | Complete left-hand front headlight uk | |
| 3 | 747044 | Left-hand front headlight | |
| 4 | 747046 | Left-hand front headlight | |
| 5 | 747042 | Bulb | |
| 6 | 747040 | Bulb | |
| 7 | 747041 | Bulb | |
| 8 | 747043 | Bulb | |
| 9 | 747039 | Front indicator light | |
| 10 | 265415 | Complete right-hand front headlight | |
| 11 | 265417 | Complete right-hand front headlight uk | |
| 12 | 747038 | Right-hand front headlight | |
| 13 | 747045 | Right-hand front headlight | |
| 14 | 20125 | Horn | |
| 15 | 54951 | Screw | |
| 16 | 42325 | Washer | |
| 18 | 291391 | R.H. housing | |
| 19 | 291387 | L.H. housing | |
| 20 | 58535 | Screw | |
| 21 | 29437 | Washer | |
| 22 | 259356 | R.H. tail light | |
| 23 | 745990 | Tail light glass | |
| 24 | 259357 | L.H. tail light | |
| 25 | 745989 | Tail light glass | |
| 26 | 174132 | Washer | |
| 27 | 25714 | Nut | |
| 28 | 745991 | Bulb | |
| 29 | 745992 | Bulb | |
| 30 | 160573 | Screw | |
| 31 | 166347 | Connector | |
| 32 | 554935 | Revolving light | |
| 33 | 466247 | Bulb | |
| 34 | 554993 | Revolving light glass | |
| 35 | 204665 | Nut | |
| 36 | 42316 | Washer | |
| 37 | 236381 | Screw | |
| 38 | 279145 | Bracket | |
| 39 | 279527 | Box | |
| 40 | 279148 | Bracket | |
| 41 | 746157 | Modulus | |
| 42 | 746158 | Modulus | |
| 43 | 250431 | Fuse | |
| 44 | 746004 | Relay | |
| 45 | 243480 | Fuse | |
| 46 | 247075 | Fuse | |
| 47 | 243481 | Fuse | |
| 48 | 251178 | Fuse | |
| 49 | 746159 | Fuse pincers |
