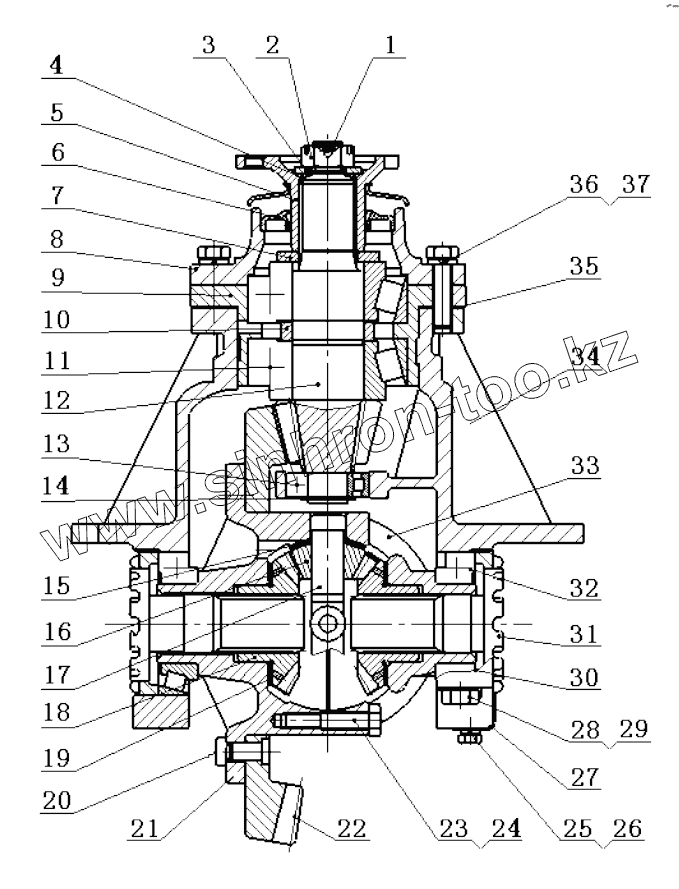

Каталог запасных частей к технике: Luneng LN-915. Main Transmission Parts
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
22
23
24
26
27
28
29
30
31
32
33
34
35
36
37
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | GB91-86 | Cotter Pin | |
| 2 | ZL15F.2.5.1-14 | Notch Nut | |
| 3 | ZL15F.2.5.1-12 | Washer | |
| 4 | ZL15F.2.5.1-13 | O-Ring | |
| 5 | ZL15F.2.5.1-8Q | Input Flange | |
| 6 | ZL15F.2.5.1-10 | Oil Seal | |
| 7 | ZL15F.2.5.1-6 | Thrust Washer | |
| 8 | ZL15F.2.5.1-7D | Bearing Cover | |
| 9 | ZL15F.2.5.1-2D | Bearing Seat | |
| 10 | ZL15F.2.5.1-3 | Bearing Spacer | |
| 11 | GB297-84 | Bearing | |
| 12 | ZL15F.2.5.1-1A | Drive Bevel Gear | |
| 12 | ZL15F.2.5.1-1B | Drive Bevel Gear | |
| 13 | GB/T283-94 | Bearing | |
| 14 | GB/T894.1-86 | Circlip | |
| 15 | ZL15F.2.5-12 | Washer | |
| 16 | ZL15F.2.5-13 | Planet Gear | |
| 17 | ZL15F.2.5-11A | Shaft | |
| 18 | ZL15F.2.5-14 | Axle Shaft Gear | |
| 19 | ZL15F.2.5-15 | Washer | |
| 20 | ZL15F.2.5-4 | Rivet | |
| 21 | ZL15F.2.5-10 | Right Case | |
| 22 | ZL15F.2.5-7A | Driven Bevel Gear | |
| 22 | ZL15F.2.5-7B | Driven Bevel Gear | |
| 23 | ZL15F.2.5-16 | Bolt | |
| 24 | ZL15F.2.5-17 | Lock Plate | |
| 26 | GB/T93-87 | Washer | |
| 27 | ZL15F.2.5-18 | Lock Plate | |
| 28 | GB/T5785-86 | Bolt | |
| 29 | ZL80-06.5.2-7 | Lock Plate | |
| 30 | ZL15F.2.5-2 | Bearing Cover | |
| 31 | ZL15F.2.5-9 | Adjust Nut | |
| 32 | GB297-84 | Bearing | |
| 33 | ZL15F.2.5-3 | Left Case | |
| 34 | ZL15F.2.5-8A | Final Drive Housing | |
| 35 | ZL15F.2.5-1 | Adjust Washer | |
| 36 | GB/T5782-86 | Bolt | |
| 37 | GB/T93-87 | Washer |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
