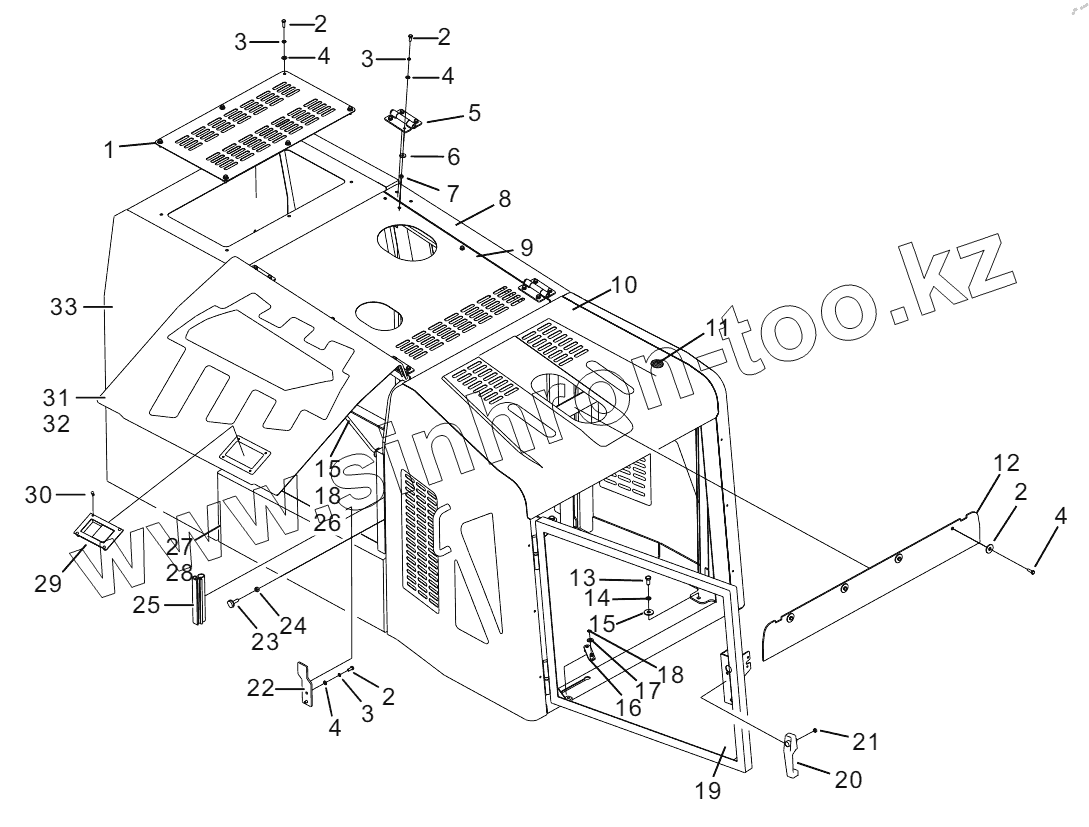

Каталог запасных частей к технике: Lonking (LongGong) ZL50NC. HOOD ASSEMBLY (30886900076)
1
2
2
2
2
3
3
3
4
4
4
4
5
6
7
8
9
10
11
12
13
14
15
15
16
17
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 30886102636 | Upper cover plate of front hood | |
| 2 | 51204091114 | Bolt | |
| 3 | 51401090107 | Washer | |
| 4 | 51420090121 | Plain washer | |
| 5 | 30886000777 | Hinge assembly | |
| 6 | 51420100119 | Washer 10 | |
| 7 | 51307000919 | Nut | |
| 8 | 30886000802 | Welding of engine hood door frame | |
| 9 | 30886000795 | Upper cover welding | |
| 10 | 30886000794 | Rear hood welding | |
| 11 | 30886000884 | Sound-absorbing sponge assembly of hood | |
| 12 | 30886102473 | Insulated rubber sheet | |
| 13 | 51204111214 | Bolt | |
| 14 | 51401110107 | Spring lock washer | |
| 15 | 51420110119 | Washer 12 | |
| 16 | 30886000782 | Brace strut welding | |
| 17 | 51421110115 | Plain washer | |
| 18 | 51453120107 | Shaft spring sprag | |
| 19 | 30886000862 | Rear cover plate welding | |
| 20 | 30812000119 | Door lock assy | |
| 21 | 51341000719 | Nut M12 | |
| 22 | 30886102425 | Plate of iron block of lock | |
| 23 | 30886000790 | Shock pad | |
| 24 | 51307001019 | Nut | |
| 25 | 30886000886 | Doorframe rubber strip | |
| 26 | 30886000781 | Welding of door struts | |
| 27 | 30886000786 | Welding of the lower right side plate | |
| 28 | 30886000787 | Welding of the lower left side plate | |
| 29 | 60701010145 | Hood lock assembly | |
| 30 | 51569000801 | Self-plugging rivet 5x12 | |
| 31 | 30886000797 | Welding of the frame of left hood door | |
| 32 | 30886000798 | Welding of the frame of right hood door | |
| 33 | 30886000883 | Front hood welding |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
