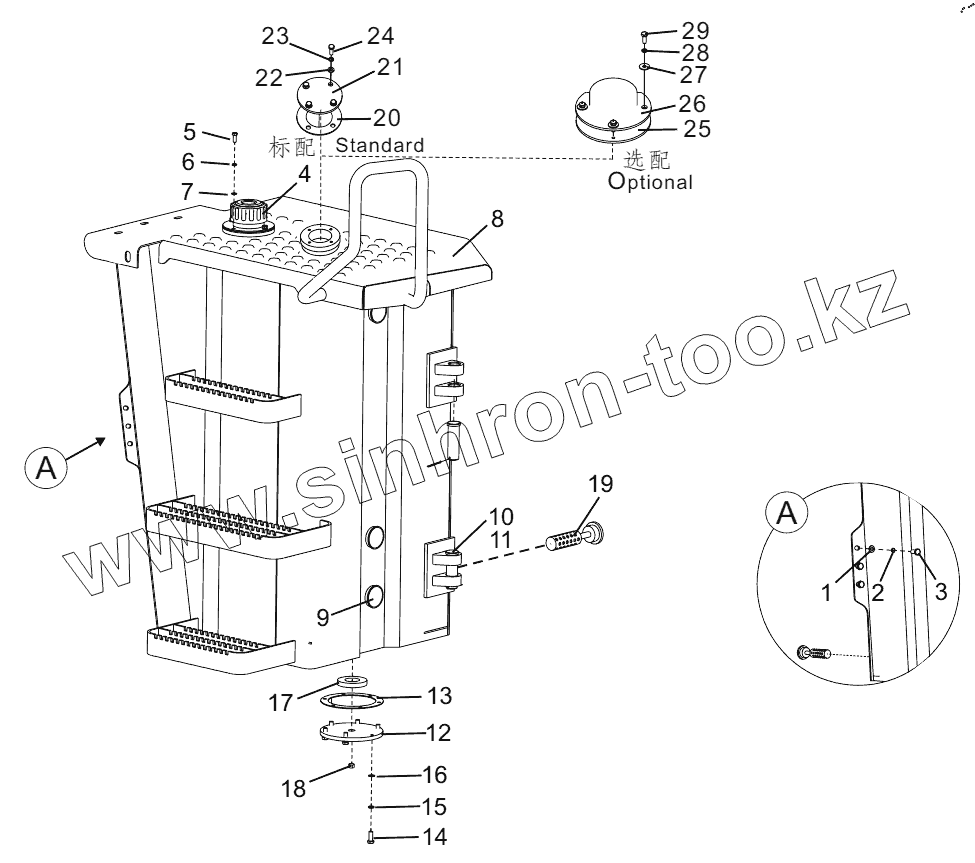

FUEL TANK ASSEMBLY (30888900041)
Каталог запасных частей к технике: Lonking (LongGong) ZL50NC. FUEL TANK ASSEMBLY (30888900041)
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
CDM-1165 (2009)
CDM-1185 (2009)
CDM-1220 (2009)
CDM-307 (2013)
CDM-308 (2013)
CDM-312 (2013)
CDM-512D (2014)
CDM-514D (2014)
CDM-520A (K) (2010)
CDM-6065 (2013)
CDM-6150 (2012)
CDM-6240 (2015)
CDM-6365H (2012)
CDM-6485H (2013)
CDM-816
CDM-816 (2010)
CDM-816 (2011)
CDM-816-D (2018)
CDM-833
CDM-833
CDM-833.00 (2010)
CDM-833H
CDM-835E VI.00 (2015)
CDM-835E VII.00I (2015)
CDM-835E VIII.00I (2015)
CDM-843
CDM-853.00 (2010)
CDM-853N.00I (2017)
CDM-855E
CDM-855E (2009)
CDM-855EG
CDM-855EK
CDM-855EM
CDM-856
CDM-856D (2010)
CDM-860.00 (2010)
CMD-835E (2009)
CMD-835E.01I (2010)
LG-160DT (2012)
LG-833NIV.00I (2017)
LG20, LG25, LG30, LG35 (2013)
LG50-60-70 (2014)
LG50CVII.00I (2015)
LG833NG (2015)
ZL50NC (2015)
Схема
>
Не выбрано
DIESEL ENGINE SYSTEM (30801900165)
THROTTLE CONTROL ASSEMBLY (30801000304)
TORQUE CONVERTER SYSTEM (30802900082)
TRANSMISSION SYSTEM (30803900064)
AXLE SYSTEM (30804900066)
REAR DRIVE SHAFT ASSEMBLY (17404000049)
MIDDLE SUPPORT (17402000009)
MIDDLE DRIVE SHAFT ASSEMBLY (17403000026)
FRONT DRIVE SHAFT ASSEMBLY (17401000069)
CONTROL SYSTEM (30805900087)
GEARBOX CONTROL ASSEMBLY (30805000174)
WORK CONTROL ASSEMBLY (30805000170)
PIPELINE ASSEMBLY OF STEERING GEAR AND CYLINDER (30806000221)
PIPELINE ASSEMBLY OF PRIORITY VALVE (30806000222)
STEERING PUMP PIPELINE INSTALLATION ASSEMBLY (30806000223)
BUCKET CYLINDER PIPELINE INSTALLATION ASSEMBLY (30807000512)
MULTIPLE UNIT VALVE PIPELINE INSTALLATION ASSEMBLY (30807000558)
WORKING PUMP PIPELINE INSTALLATION ASSEMBLY (30807000559)
LIFT CYLINDER PIPELINE INSTALLATION ASSEMBLY (30807000204)
MULTIPLE UNIT VALVE (60304000045)
AIR TANK INSTALLMENT ASSEMBLY (30808900105)
RELIEF VALVE INSTALLMENT ASSEMBLYY (30808900105)
AIR TANK PIPELINE INSTALLMENT ASSEMBLY (30808900105)
BRAKE VALVE PIPELINE INSTALLMENT ASSEMBLY (30808900105)
BOOSTER PUMP INSTALLMENT ASSEMBLY (30808900105)
FRONT AXLE PIPELINE INSTALLMENT ASSEMBLY (30808900105)
REAR AXLE PIPELINE INSTALLMENT ASSEMBLY (30808900105)
EMERGENCY AND PARKING BRAKE SYSTEM (30809900044)
FRONT FRAME (30810900323)
REAR FRAME (30810900323)
IMPLEMENT SYSTEM (30811900254)
BUCKET ASSEMBLY (30871900077)
CAB SYSTEM (30812900215)
CAB SYSTEM (30812900215)
OUT PANEL SYSTEM (30813900218)
HYDRAULIC TANK ASSEMBLY (30889900058)
FUEL TANK ASSEMBLY (30888900041)
COUNTER WEIGHT ASSEMBLY (30887900059) STANDARD
COUNTER WEIGHT ASSEMBLY (30887900058) OPTIONAL
HOOD ASSEMBLY (30886900076)
ELECTRIAL SYSTEM (30815900222) (Electrical layout of the cab)
ELECTRIAL SYSTEM (30815900222) (Electrical layout of the front frame)
ELECTRIAL SYSTEM (30815900222) (Frame electrical layout)
ELECTRIAL SYSTEM (30815900222) (Electrical arrangement of brake valve)
ELECTRIAL SYSTEM (30815900222) (Electrical layout of fuel tank)
ELECTRIAL SYSTEM (30815900222) (Balance weight electrical layout)
ELECTRIAL SYSTEM (30815900222) (Electrical layout of the gearbox)
ELECTRIAL SYSTEM (30815900222) (Electrical layout of scrubber)
FRONT WIPER ASSEMBLY (60400000569)
REAR WIPER ASSEMBLY (60400000572)
INSTRUMENT PANEL ASSEMBLY (60400000577) STANDARD
INSTRUMENT PANEL ASSEMBLY (60400000738) OPTIONAL
AIR CONDITION ASSEMBLYY (60400000641)
EVAPORATOR ASSEMBLY
CONDENSER ASSEMBLY
TOOL KIT
GREASING POINTS INDICATION LAYOUT
LIST OF VULNERABLE PARTS OF THE ENGINE
LEFT STEERING CYLINDER (16608047480)
RIGHT STEERING CYLINDER (16608047490)
TILT CYLINDER (16608112030)
LIFT CYLINDER (16608107010)
LIFT CYLINDER (16608101010)
TORQUE CONVERTER ASSEMBLY (LG853.02.01B)
TRANSMISSION ASSEMBLY (LG853.03.01JA)
SHAFT II ASSEMBLY (LG853.03.01.02)
SHAFT III ASSEMBLY (LG853.03.01.05J)
GEAR I PISTON ASSEMBLY (LG853.03.01.06)
FRICTION PLATE SEPARATING BRACKET ASSEMBLY (LG853.03.01.08)
REVERSE GEAR PISTON ASSEMBLY (LG853.03.01.09)
OIL PAN ASSEMBLY (LG853.03.01.04)
SHAFT IV ASSEMBLY (LG853.03.01.03J)
SHAFT I ASSEMBLY (LG853.03.01.01)
AXLE ASSEMBLY (16480500030)
MAIN REDUCTOR ASSEMBLY (36403000030)
WHEEL REDUCTOR ASSEMBLY (36403000029)
DIFFERENTIAL ASSEMBLY (36403000028)
AXLE HOUSING ASSEMBLY (36401000007)
AXLE ASSEMBLY (16480505000)
REAR MAIN DRIVE ASSEMBLY (36403000016)
WHEEL REDUCTOR ASSEMBLY (36402000048)
DIFFERENTIAL ASSEMBLY (36403000015)
AXLE HOUSING ASSEMBLY (36401000003)
HYDRAULIC SCHEMATIC DIAGRAM
ELECTRICAL SCHEMATIC
ELECTRICAL SYSTEM PRINCIPLE DIAGRAM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Позиция на иллюстрации
Заводской номер детали
Название детали
1
51401130107
Spring lock washer
2
51421130115
Washer
3
51204132514
Bolt
4
60308000028
Air filter
5
51204091114
Bolt
6
51421090115
Washer
7
51401090107
Washer
8
30888000137
Fuel tank body welding
9
60307010012
Circular oil leveler
10
30888100154
Pin shaft
11
51453270107
Circlip 30
12
30889000125
Oil drain cover welding
13
60980005026
Shim
14
51204111214
Bolt
15
51401110107
Spring lock washer
16
51421110115
Plain washer
17
60980000189
Magnet Ф80xФ40x12
18
30813100211
Stopper
19
60308000027
Oil suction oil filer assembly
20
30888100008
Shim
21
30888100009
Cover plate
22
51421070115
Washer
23
51401070107
Washer
24
51204070914
Bolt M5x16
25
30888100332
Mounting plate of guard
26
30888102443
Cover of Oil level indicator
27
51420080119
Washer 6
28
51401080107
Spring lock washer
29
51204080914
Bolt
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
