Каталог запасных частей к технике: Lonking (LongGong) ZL50NC. CONDENSER ASSEMBLY

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CDM-1165 (2009) CDM-1185 (2009) CDM-1220 (2009) CDM-307 (2013) CDM-308 (2013) CDM-312 (2013) CDM-512D (2014) CDM-514D (2014) CDM-520A (K) (2010) CDM-6065 (2013) CDM-6150 (2012) CDM-6240 (2015) CDM-6365H (2012) CDM-6485H (2013) CDM-816 CDM-816 (2010) CDM-816 (2011) CDM-816-D (2018) CDM-833 CDM-833 CDM-833.00 (2010) CDM-833H CDM-835E VI.00 (2015) CDM-835E VII.00I (2015) CDM-835E VIII.00I (2015) CDM-843 CDM-853.00 (2010) CDM-853N.00I (2017) CDM-855E CDM-855E (2009) CDM-855EG CDM-855EK CDM-855EM CDM-856 CDM-856D (2010) CDM-860.00 (2010) CMD-835E (2009) CMD-835E.01I (2010) LG-160DT (2012) LG-833NIV.00I (2017) LG20, LG25, LG30, LG35 (2013) LG50-60-70 (2014) LG50CVII.00I (2015) LG833NG (2015) ZL50NC (2015)

Схема > Не выбрано DIESEL ENGINE SYSTEM (30801900165) THROTTLE CONTROL ASSEMBLY (30801000304) TORQUE CONVERTER SYSTEM (30802900082) TRANSMISSION SYSTEM (30803900064) AXLE SYSTEM (30804900066) REAR DRIVE SHAFT ASSEMBLY (17404000049) MIDDLE SUPPORT (17402000009) MIDDLE DRIVE SHAFT ASSEMBLY (17403000026) FRONT DRIVE SHAFT ASSEMBLY (17401000069) CONTROL SYSTEM (30805900087) GEARBOX CONTROL ASSEMBLY (30805000174) WORK CONTROL ASSEMBLY (30805000170) PIPELINE ASSEMBLY OF STEERING GEAR AND CYLINDER (30806000221) PIPELINE ASSEMBLY OF PRIORITY VALVE (30806000222) STEERING PUMP PIPELINE INSTALLATION ASSEMBLY (30806000223) BUCKET CYLINDER PIPELINE INSTALLATION ASSEMBLY (30807000512) MULTIPLE UNIT VALVE PIPELINE INSTALLATION ASSEMBLY (30807000558) WORKING PUMP PIPELINE INSTALLATION ASSEMBLY (30807000559) LIFT CYLINDER PIPELINE INSTALLATION ASSEMBLY (30807000204) MULTIPLE UNIT VALVE (60304000045) AIR TANK INSTALLMENT ASSEMBLY (30808900105) RELIEF VALVE INSTALLMENT ASSEMBLYY (30808900105) AIR TANK PIPELINE INSTALLMENT ASSEMBLY (30808900105) BRAKE VALVE PIPELINE INSTALLMENT ASSEMBLY (30808900105) BOOSTER PUMP INSTALLMENT ASSEMBLY (30808900105) FRONT AXLE PIPELINE INSTALLMENT ASSEMBLY (30808900105) REAR AXLE PIPELINE INSTALLMENT ASSEMBLY (30808900105) EMERGENCY AND PARKING BRAKE SYSTEM (30809900044) FRONT FRAME (30810900323) REAR FRAME (30810900323) IMPLEMENT SYSTEM (30811900254) BUCKET ASSEMBLY (30871900077) CAB SYSTEM (30812900215) CAB SYSTEM (30812900215) OUT PANEL SYSTEM (30813900218) HYDRAULIC TANK ASSEMBLY (30889900058) FUEL TANK ASSEMBLY (30888900041) COUNTER WEIGHT ASSEMBLY (30887900059) STANDARD COUNTER WEIGHT ASSEMBLY (30887900058) OPTIONAL HOOD ASSEMBLY (30886900076) ELECTRIAL SYSTEM (30815900222) (Electrical layout of the cab) ELECTRIAL SYSTEM (30815900222) (Electrical layout of the front frame) ELECTRIAL SYSTEM (30815900222) (Frame electrical layout) ELECTRIAL SYSTEM (30815900222) (Electrical arrangement of brake valve) ELECTRIAL SYSTEM (30815900222) (Electrical layout of fuel tank) ELECTRIAL SYSTEM (30815900222) (Balance weight electrical layout) ELECTRIAL SYSTEM (30815900222) (Electrical layout of the gearbox) ELECTRIAL SYSTEM (30815900222) (Electrical layout of scrubber) FRONT WIPER ASSEMBLY (60400000569) REAR WIPER ASSEMBLY (60400000572) INSTRUMENT PANEL ASSEMBLY (60400000577) STANDARD INSTRUMENT PANEL ASSEMBLY (60400000738) OPTIONAL AIR CONDITION ASSEMBLYY (60400000641) EVAPORATOR ASSEMBLY CONDENSER ASSEMBLY TOOL KIT GREASING POINTS INDICATION LAYOUT LIST OF VULNERABLE PARTS OF THE ENGINE LEFT STEERING CYLINDER (16608047480) RIGHT STEERING CYLINDER (16608047490) TILT CYLINDER (16608112030) LIFT CYLINDER (16608107010) LIFT CYLINDER (16608101010) TORQUE CONVERTER ASSEMBLY (LG853.02.01B) TRANSMISSION ASSEMBLY (LG853.03.01JA) SHAFT II ASSEMBLY (LG853.03.01.02) SHAFT III ASSEMBLY (LG853.03.01.05J) GEAR I PISTON ASSEMBLY (LG853.03.01.06) FRICTION PLATE SEPARATING BRACKET ASSEMBLY (LG853.03.01.08) REVERSE GEAR PISTON ASSEMBLY (LG853.03.01.09) OIL PAN ASSEMBLY (LG853.03.01.04) SHAFT IV ASSEMBLY (LG853.03.01.03J) SHAFT I ASSEMBLY (LG853.03.01.01) AXLE ASSEMBLY (16480500030) MAIN REDUCTOR ASSEMBLY (36403000030) WHEEL REDUCTOR ASSEMBLY (36403000029) DIFFERENTIAL ASSEMBLY (36403000028) AXLE HOUSING ASSEMBLY (36401000007) AXLE ASSEMBLY (16480505000) REAR MAIN DRIVE ASSEMBLY (36403000016) WHEEL REDUCTOR ASSEMBLY (36402000048) DIFFERENTIAL ASSEMBLY (36403000015) AXLE HOUSING ASSEMBLY (36401000003) HYDRAULIC SCHEMATIC DIAGRAM ELECTRICAL SCHEMATIC ELECTRICAL SYSTEM PRINCIPLE DIAGRAM

1

2

3

4

5

6

7

8

9

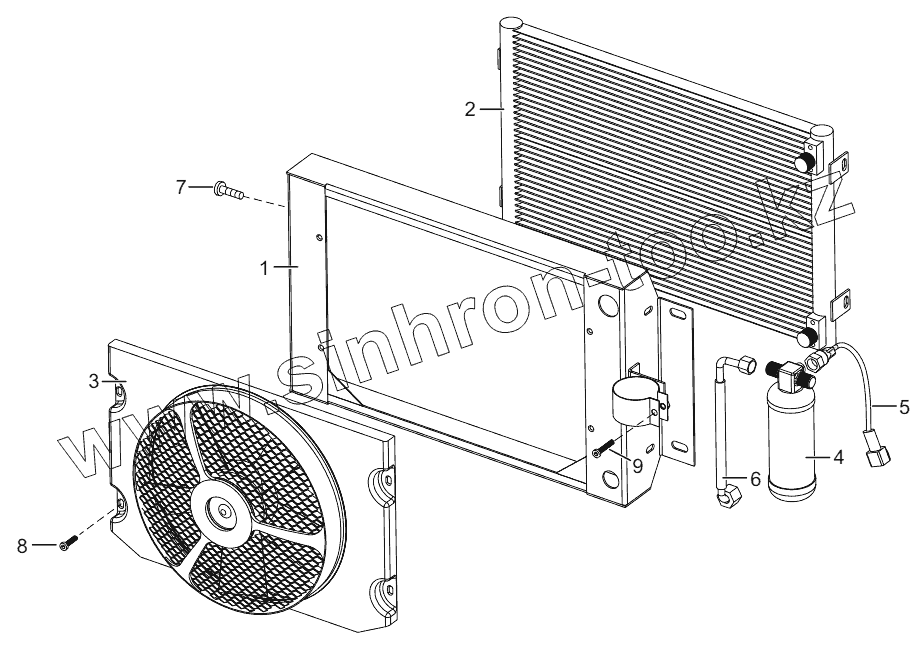

Позиция на иллюстрации	Заводской номер детали		Название детали
1	040902014		Condenser bracket
2	81200900-1B		Condenser core
3	011100010		Condensing fan
4	010400010		Dry bottle
5	011300006		Pressure switch
6	050600085		CF tube
7	Hexagonal bolts M6 x 20		Hexagonal bolts
8	Hexagonal bolts M6 x 12		Hexagonal bolts
9	Hexagonal bolts M6 x 20		Hexagonal bolts

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
