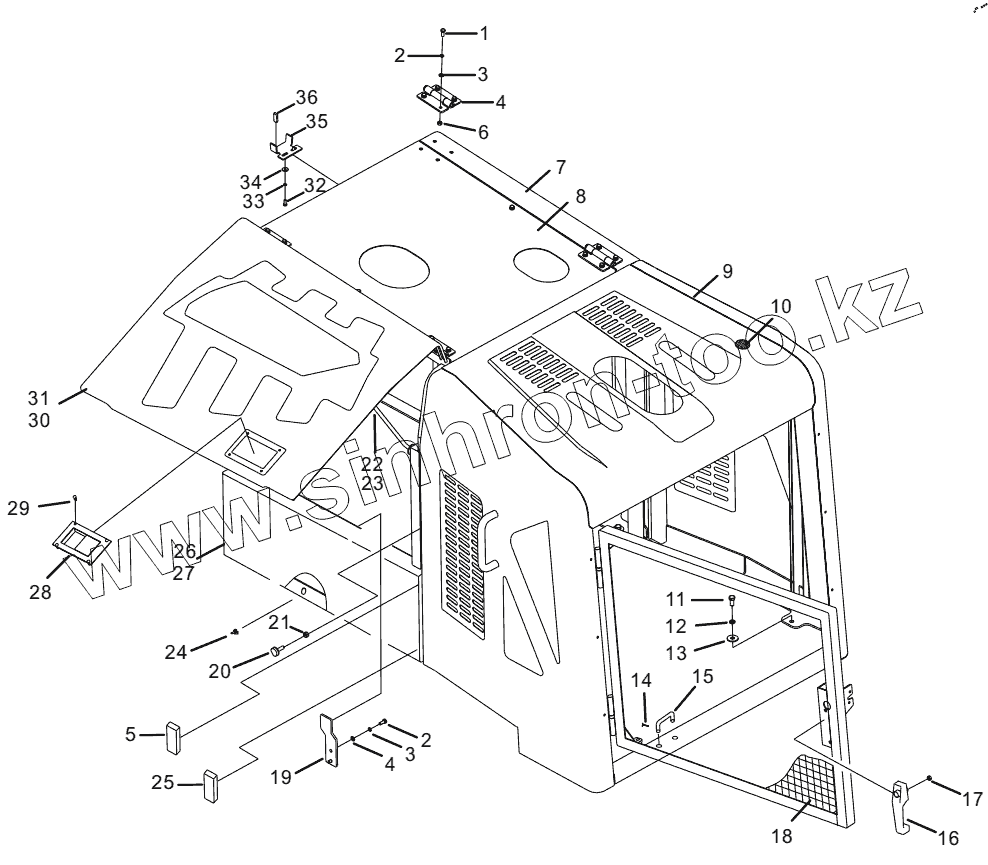

Каталог запасных частей к технике: Lonking (LongGong) LG-833NIV.00I. HOOD ASSEMBLY (30886900063)
1
2
2
3
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 51204091114 | Bolt | |
| 2 | 51401090107 | Washer | |
| 3 | 51420090121 | Plain washer | |
| 4 | 30886000777 | Hinge assembly | |
| 5 | 30886102870 | Compensation cap | |
| 6 | 51307000919 | Nut | |
| 7 | 30886000837 | Welding of engine hood door frame | |
| 8 | 30886000843 | Upper cover welding | |
| 9 | 30886000840 | Rear hood welding | |
| 10 | 30886000844 | Sound-absorbing sponge assembly for engine hood | |
| 11 | 51204111214 | Bolt | |
| 12 | 51401110107 | Spring lock washer | |
| 13 | 51420110119 | Washer 12 | |
| 14 | 51512081401 | Cotter pin 3.2x32 | |
| 15 | 30886102777 | Brace strut | |
| 16 | 30886000988 | Wholesale door lock | |
| 17 | 51341000719 | Nut M12 | |
| 18 | 30886000812 | Rear cover plate welding | |
| 19 | 30886102425 | Plate of iron block of lock | |
| 20 | 30886000790 | Shock pad | |
| 21 | 51307001019 | Nut | |
| 22 | 30886102693 | Brace strut of hood door | |
| 23 | 51307001119 | Nut | |
| 24 | 30886000901 | Fixing rod welding | |
| 25 | 30886102871 | Compensation cap | |
| 26 | 30886000838 | Welding of the lower right side plate | |
| 27 | 30886000839 | Welding of the lower left side plate | |
| 28 | 60701010145 | Hood lock assembly | |
| 29 | 51569000801 | Self-plugging rivet 5x12 | |
| 30 | 30886000797 | Welding of the frame of left hood door | |
| 31 | 30886000798 | Welding of the frame of right hood door | |
| 32 | 51204101014 | Bolt | |
| 33 | 51401100107 | Spring lock washer | |
| 34 | 51420100121 | Plain washer | |
| 35 | 30886102876 | Blow you up for shock | |
| 36 | 30886102879 | Bolt |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
