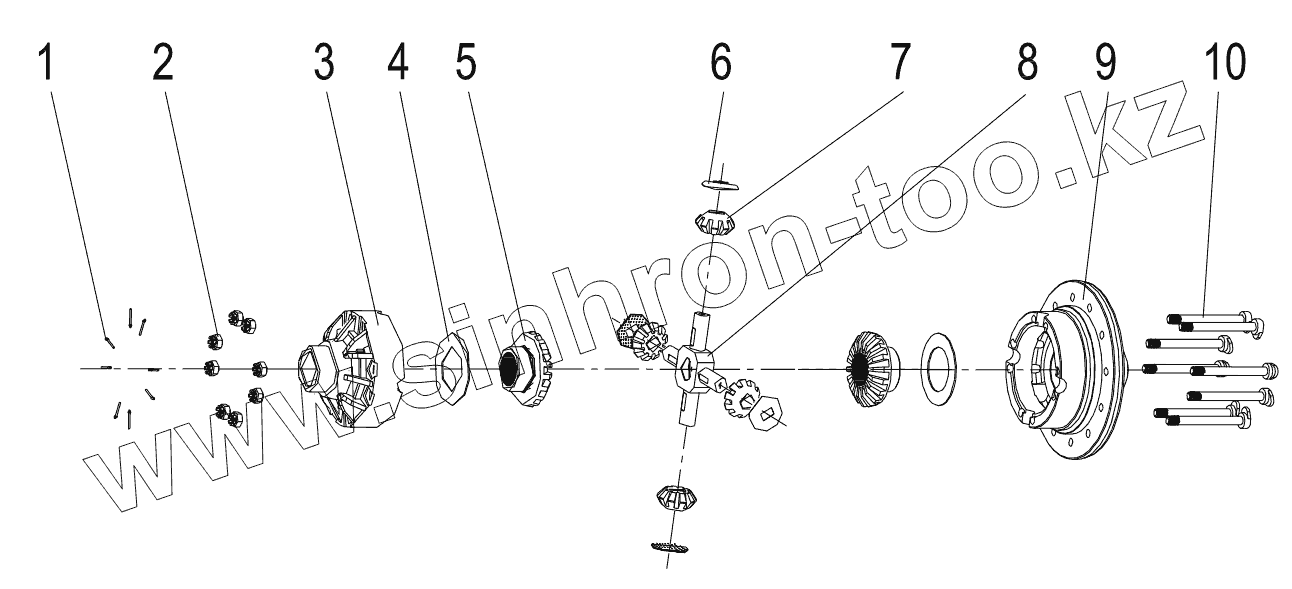

Каталог запасных частей к технике: Lonking (LongGong) LG-833NIV.00I. DIFFERENTIAL ASSEMBLY (36403000087)

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CDM-1165 (2009) CDM-1185 (2009) CDM-1220 (2009) CDM-307 (2013) CDM-308 (2013) CDM-312 (2013) CDM-512D (2014) CDM-514D (2014) CDM-520A (K) (2010) CDM-6065 (2013) CDM-6150 (2012) CDM-6240 (2015) CDM-6365H (2012) CDM-6485H (2013) CDM-816 CDM-816 (2010) CDM-816 (2011) CDM-816-D (2018) CDM-833 CDM-833 CDM-833.00 (2010) CDM-833H CDM-835E VI.00 (2015) CDM-835E VII.00I (2015) CDM-835E VIII.00I (2015) CDM-843 CDM-853.00 (2010) CDM-853N.00I (2017) CDM-855E CDM-855E (2009) CDM-855EG CDM-855EK CDM-855EM CDM-856 CDM-856D (2010) CDM-860.00 (2010) CMD-835E (2009) CMD-835E.01I (2010) LG-160DT (2012) LG-833NIV.00I (2017) LG20, LG25, LG30, LG35 (2013) LG50-60-70 (2014) LG50CVII.00I (2015) LG833NG (2015) ZL50NC (2015)

Схема > Не выбрано DIESEL ENGINE SYSTEM (30801900161) THROTTLE CONTROL ASSEMBLY (30801000313) TORQUE CONVERTER SYSTEM (30802900088) OIL CIRCUIT ASSEMBLY OF TORQUE CONVERTER AND TRANSMISSION (30802000116) UPPER DRIVE SHAFT ASSEMBLY (17405000007) TRANSMISSION SYSTEM (30803900063) AXLE SYSTEM (30804900011) FRONT DRIVE SHAFT ASSEMBLY (17401000020) MIDDLE SUPPORT (17402000010) MIDDLE /REAR DRIVE SHAFT ASSEMBLY (17409000004) REAR DRIVE SHAFT ASSEMBLY (17404000012) CONTROL SYSTEM (30805900121) GEARBOX CONTROL ASSEMBLYY (3300880055000000222244) PIPELINE ASSEMBLY OF STEERING GEAR AND CYLINDER (30806000244) HYDRAULIC STEERING GEAR ASSEMBLY (30806000209) PRIORITY VALVE INSTALLATION ASSEMBLY (30806000062) GEAR PUMP PIPELINE ASSEMBLY (30806000243) IMPLEMENT HYDRAULIC SYSTEM (30807900349) IMPLEMENT HYDRAULIC SYSTEM (30807900349) IMPLEMENT HYDRAULIC SYSTEM (30807900349) PIOLT CONTROL ASSEMBLY (30807000627) AIR TANK INSTALLMENT ASSEMBLY (30808000290) BRAKE VALVE PIPELIN INSTALLMENT ASSEMBLY (30808000260) FRONT BOOSTER PUMP INSTALLMENT ASSEMBLY (30808000258) REAR BOOSTER PUMP PIPELINE INSTALLMENT ASSEMBLY (30808000261) AIR TANK PIPELINE INSTALLMENT ASSEMBLY (30808000262) PARKING BRAKING SYSTEM (30809900034) FRAME ASSEMBLY (30810900497) IMPLEMENT SYSTEM (30811900259) BUCKET ASSEMBLY (30871900093) CAB SYSTEM (30812900225) CAB SYSTEM (30812900225) CAB SYSTEM (30812900218) CAB SYSTEM (30812900218) OUT PANEL SYSTEM (30813900203) HYDRAULIC TANK ASSEMBLY (30889900054) FUEL TANK ASSEMBLY (30888900037) FUEL TANK ASSEMBLY (30888900040) COUNTER WEIGHT ASSEMBLY (30887000269) HOOD ASSEMBLY (30886900063) ELECTRIAL SYSTEM (30815000310) ELECTRIAL WIRING OF CAB (30815000310) AIR CONDITION ASSEMBLY (60400000790) EVAPORATOR ASSEMBLY (60900003002) CONDENSER ASSEMBLY (60900003005) FRONT WIPER ASSEMBLY (60400000569) REAR WIPER ASSEMBLY (60400000572) INSTRUMENT PANEL ASSEMBLY (60400002244) INSTRUMENT PANEL ASSEMBLY (60400002246) FUSE BOX (60400000576) ELECTRIAL WIRING OF FRAME (30815000310) ELECTRIAL WIRING OF ENGINE (30815000310) ELECTRIAL WIRING OF BRAKE VALVE (30815000310) ELECTRIAL WIRING OF OIL TANK (30815000310) ELECTRIAL WIRING OF COUNTER WEIGHT (30815000310) ELECTRIAL WIRING OF TRANSMISSION (30815000310) ELECTRIAL WIRING OF TORQUE CONVERTER (30815000310) ELECTRIAL WIRING OF SCRUBBER (30815000310) TRANSMISSION ASSEMBLY (LGX833VA.03A) HIGH-LOW GEAR SHIFT CONTROL ASSEMBLY (ZL30.03.11) FILTER CARTRIDGE ASSEMBLY (LGX833VA.03.01) INPUT SHAFT ASSEMBLY (LGX833VA.03.03) OUTPUT SHAFT ASSEMBLY (LGX833VA.03.04) MIDDLE SHAFT ASSEMBLY (LGX833VA.03.04) REVERSE GEAR SHAFT ASSEMBLY (LGX833VA.03.06) FRONT AXLE ASSEMBLY (16480300080) FRONT MAIN REDUCTOR ASSEMBLY (36403000082) FRONT MAIN REDUCTOR ASSEMBLY (36403000082) WHEEL REDUCTOR ASSEMBL(36402000031) WHEEL REDUCTOR ASSEMBL(36402000031) DIFFERENTIAL ASSEMBLY(36403000087) FRONT AXLE HOUSING WELDING (36401000020) FLANGE WELDING (36403000002) REAR AXLE ASSEMBLY (16480305060) REAR MAIN REDUCER ASSEMBLY (36403000086) REAR MAIN REDUCER ASSEMBLY (36403000086) WHEEL REDUCTOR ASSEMBLY (36402000031) WHEEL REDUCTOR ASSEMBLY (36402000031) DIFFERENTIAL ASSEMBLY (36403000087) REAR AXLE HOUSING WELDING (36401000021) FLANGE WELDING (36403000002) LEFT STEERING CYLINDER (16608029010) RIGHT STEERING CYLINDER (16608029120) TILT CYLINDER (16608064550) LIFT CYLINDER (16608062010) TOOL KIT LIST OF VULNERABLE PARTS OF THE ENGINE Hydraulic schematic diagram Electrical System Principle Diagram

1

2

3

4

5

6

7

8

9

10

Позиция на иллюстрации	Заводской номер детали		Название детали
1	51512082301		Pin
2	51331000622		Nut M14x1.5
3	36403100019		Left cover of differential mechanism
4	36403100325		Half shaft gear washer
5	36403100025		Half axle gear
6	36403100324		Bevel washer
7	36403100020		Angle gear
8	36403100023		Cross axle
9	36403100323		Right cover of differential mechanism
10	36403100021		Flange bolt

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
