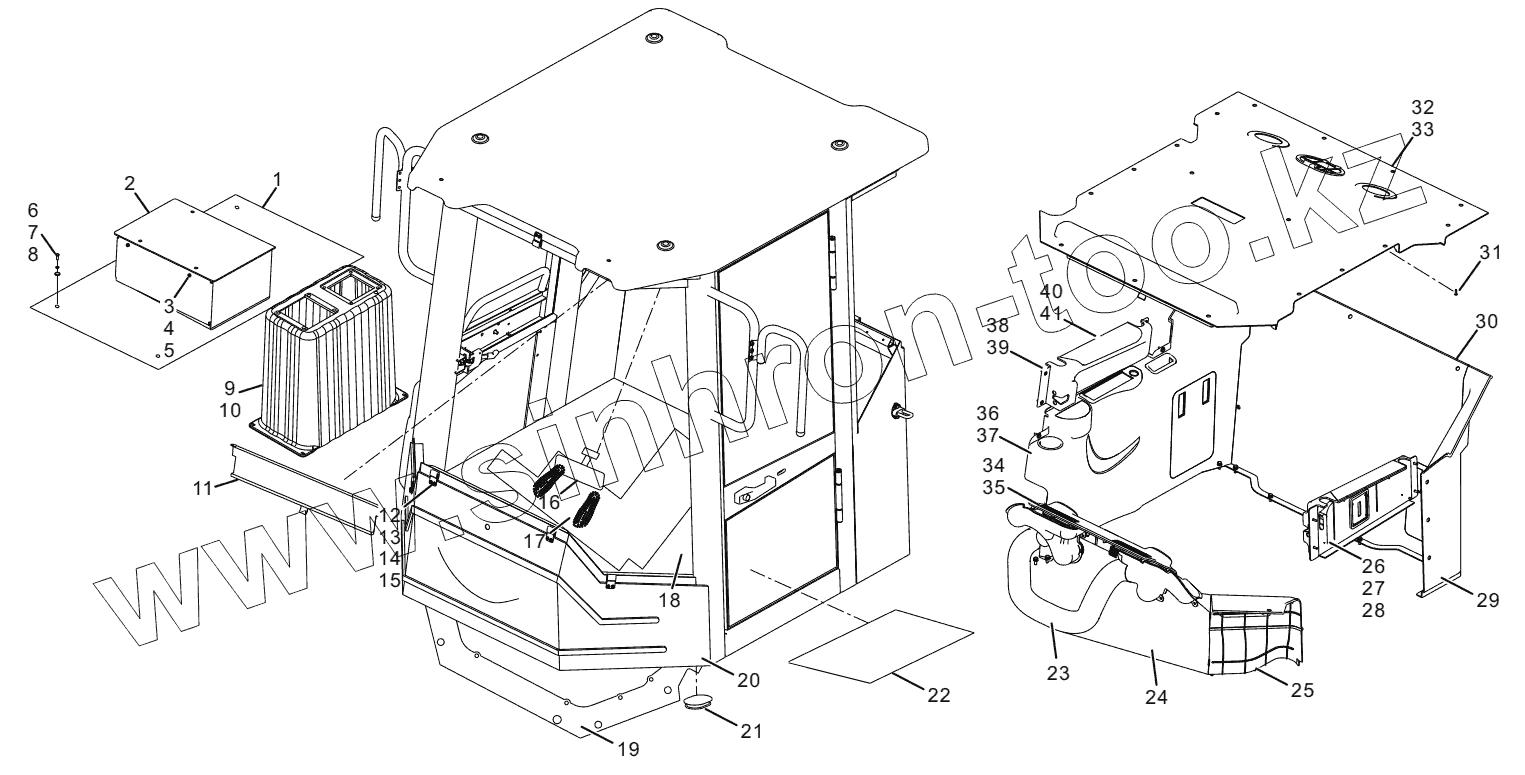

Каталог запасных частей к технике: Lonking (LongGong) LG-833NIV.00I. CAB SYSTEM (30812900218)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
Позиция на иллюстрации Заводской номер детали Название детали
1 30812000608 Middle surface welding
2 30812000613 Controller seat
3 51777000101 Butterfly bolt
4 51401080107 Spring lock washer
5 51420080121 Plain washer
6 51204091014 Bolt
7 51401090107 Washer
8 51420090119 Washer 8
9 30881000612 Pilot control housing
10 30881000607 Pilot control housing
11 30881000365 Shade
12 30812102020 Glass press plate
13 51158170304 Screw M5x10
14 51421070115 Washer
15 51401070107 Washer
16 60900001625 Inner mirror assembly
17 30881101819 Paper gasket
18 30812000630 Ground pad
19 30881101707 Seal gasket
20 30881000614 Cab sound absorption spronge assembly
21 60900001602 sealed cover of base
22 30812102051 Left movable faceplate
23 60900001600 A/C air duct assembly
24 60900001596 Front boarding
25 60900001597 Left front boarding
26 60900001607 Left door trim
27 60900001608 Left door upper cover
28 60900001609 Cover of left door lock
29 60900001604 Left rear boarding
30 60900001603 Rear boarding
31 60900001624 Clamp assembly
32 60900001623 Inner ceiling decoration
33 30881101705 Inner ceiling decoration
34 60900001598 Right front boarding
35 60900001599 Air outlet cover
36 60900001605 Right rear boarding
37 30881101708 Right rear boarding
38 51166450211 Tapping screw ST 4.8x13
39 51166450411 Tapping screw ST4.8x19
40 60900001611 Right door trim
41 60900001612 Right door upper cover
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
