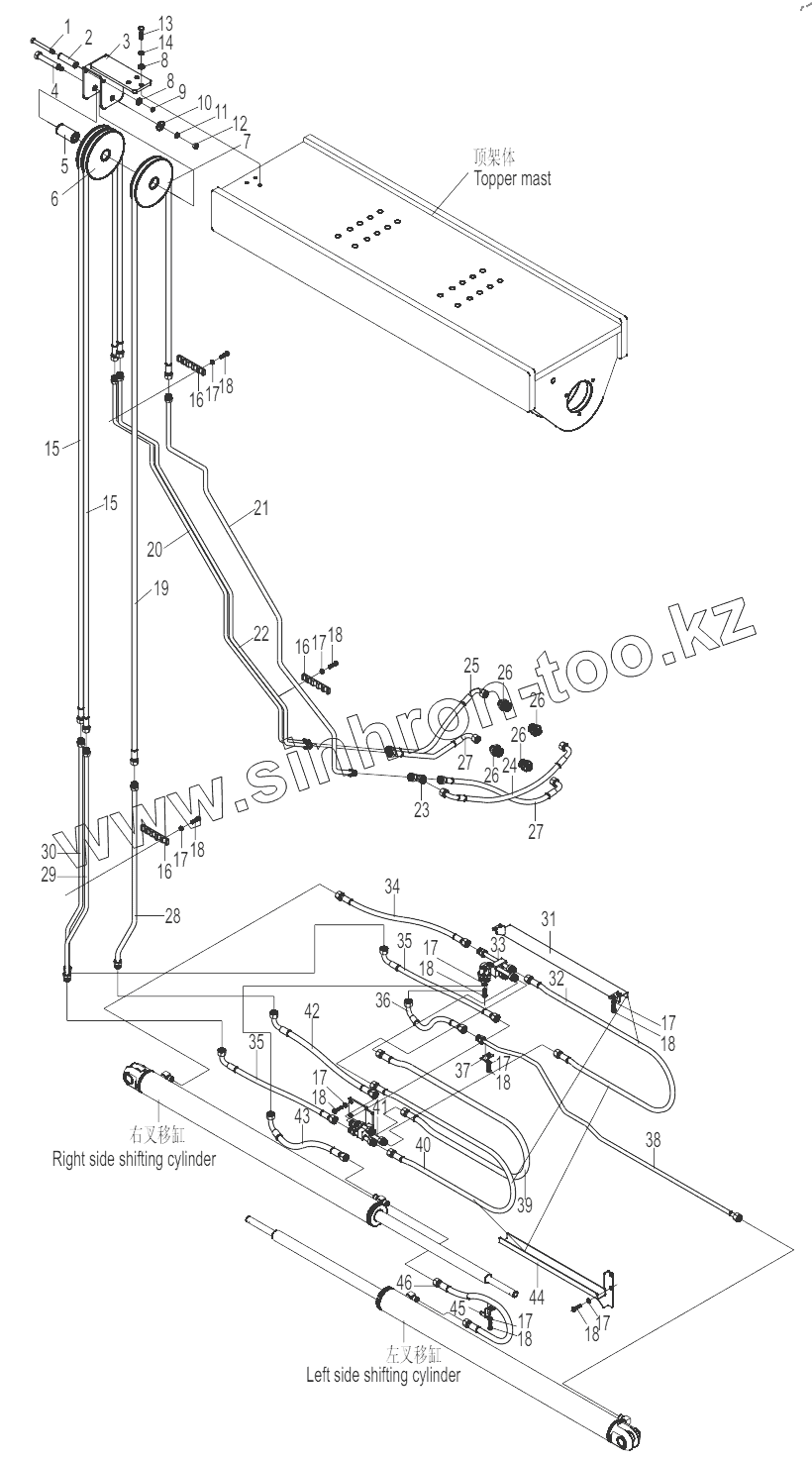

Каталог запасных частей к технике: Lonking (LongGong) LG-160DT. Side shift pipe system

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
15
16
16
16
17
17
17
17
17
17
17
17
17
18
18
18
18
18
18
18
18
18
19
20
21
22
23
24
25
26
26
26
26
27
27
28
29
30
31
32
33
34
35
35
36
37
38
39
40
41
42
43
44
45
46
Позиция на иллюстрации Заводской номер детали Название детали
1 51139222205 Bolt M10x150
2 30088107401 Tube
3 30088089201 Bracket
4 51203133414 Bolt M16x160
5 30088107406 Tube
6 30088185200 Sheave
7 30088185201 Sheave
8 51421100115 Plain washer
9 51347000419 Nut
10 51421130115 Washer
11 51401130107 Spring lock washer
12 51307001319 Nut
13 51204101214 Bolt
14 51401100107 Spring lock washer
15 17272002830 Hose, high pressure
16 30088107800 Clip
17 51401090107 Washer
18 51204091114 Bolt
19 17272002818 Hose, high pressure
20 60911013503 Tube weldment
21 60911013513 Tube assembly
22 60911013502 Tube weldment
23 17601000900 Adapter
24 17272005336 Hose, high pressure
25 17272005337 Hose, high pressure
26 17601000223 Joint
27 17272005343 Hose, high pressure
28 60911013514 Tube assembly
29 60911013515 Tube assembly
30 60911013516 Tube assembly
31 30088089501 Bracket
32 17272005339 Hose, high pressure
33 60911013517 Six way adapter
34 17272005341 Hose, high pressure
35 17272005345 Hose, high pressure
36 17272005342 Hose, high pressure
37 30088107802 Clip
38 60911013507 Tube weldment
39 17272005340 Hose, high pressure
40 17272005338 Hose, high pressure
41 60911013523 Six way adapter
42 17272005344 Hose, high pressure
43 17272005303 Hose, high pressure
44 30088089500 Bracket
45 30088107801 Clip
46 17272005331 Hose, high pressure
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
