Каталог запасных частей к технике: Lonking (LongGong) LG-160DT. Air-condition system (Optional)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
5
5
5
5
5
6
7
7
7
7
7
7
8
9
10
10
10
10
10
11
12
13
14
14
14
15
16
16
16
17
18
19
20
20
20
21
22
23
24
25
26
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
45
46
46
47
48
48
49
50
51
52
53
54
55
56
57
58

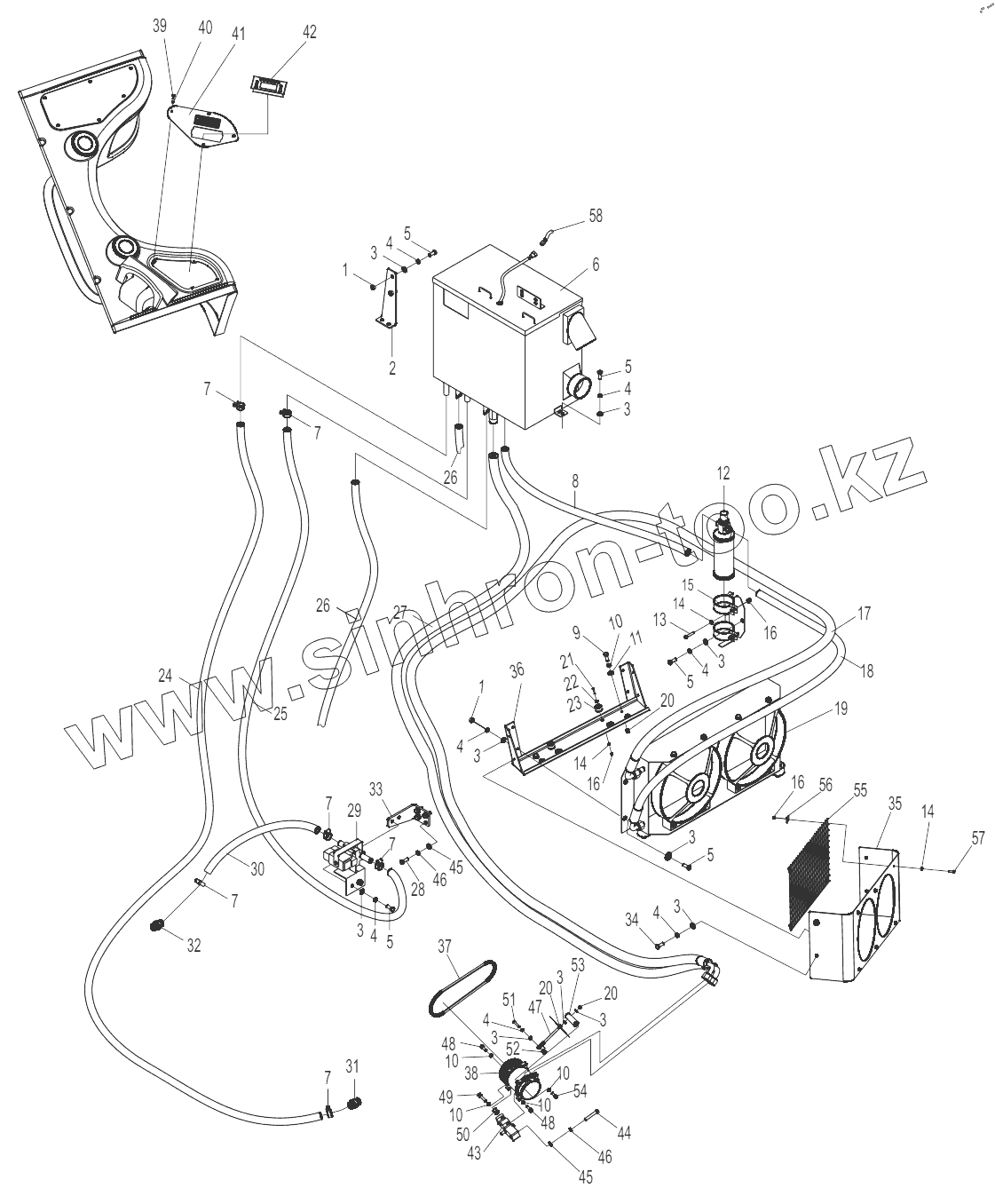

Позиция на иллюстрации Заводской номер детали Название детали
1 51307000919 Nut
2 33001018108 Bracket weldment
3 51421090115 Washer
4 51401090107 Washer
5 51204091014 Bolt
6 33001018001 Evaporator
7 56171000301 Clip
8 30014014501 Hose assembly
9 51204101114 Bolt
10 51401100107 Spring lock washer
11 51421100115 Plain washer
12 33001018800 Accumulator bracket
13 51204081214 Bolt
14 51421080115 Plain washer
15 33001018501 Accumulator bracket
16 51341000419 NUT M6
17 30014014502 Hose assembly
18 30014014503 Hose assembly
19 33001014900 Condensator assembly
20 51307001019 Nut
21 51204081314 Bolt
22 51420080121 Plain washer
23 33001109001 Absorber
24 30014109201 Hose
25 30014109202 Hose
26 33001109215 Hose
27 30014014500 Hose assembly
28 51204111114 Bolt
29 33001010900 50G electromagnetic valve
30 30014109203 Hose
31 17601001146 Intergrade tie-in
32 17601001147 Intergrade tie-in
33 30014115029 Bracket
34 51204090914 Bolt
35 30014108700 Shield
36 30014018108 Bracket, weldment
37 68051010430 Strap
38 33001017301 Compressor
39 51118170403 Screw M5x12
40 51401070107 Washer
41 30015107605 fixture sheet metal
42 60980003002 air-condition panel
43 30014134802 underprop seat
44 51203112018 Bolt M12x70
45 51421110115 Plain washer
46 51401110107 Spring lock washer
47 30014015200 screw, weldment
48 51139220405 Screw
49 51139220805 Screw M10x50
50 33001106301 Underlay
51 51203091514 Bolt M8x45
52 30014148301 Lining
53 33001115500 axes
54 51139220305 Screw M10x25
55 33009169100 Wire netting
56 33009158101 impacted
57 51158190604 Screw M6x20
58 30014065600 Wiring harness
