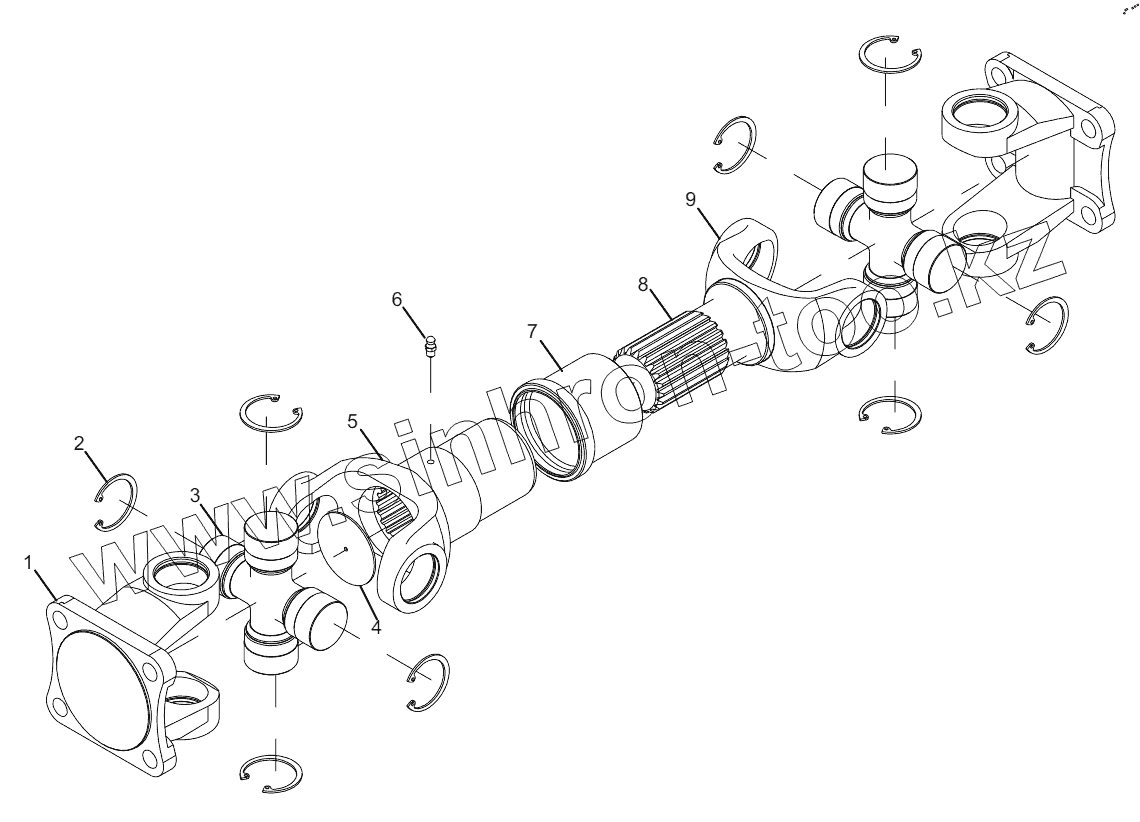

Каталог запасных частей к технике: Lonking (LongGong) LG833NG. UPPER DRIVE SHAFT ASSEMBLY (17405000005)

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CDM-1165 (2009) CDM-1185 (2009) CDM-1220 (2009) CDM-307 (2013) CDM-308 (2013) CDM-312 (2013) CDM-512D (2014) CDM-514D (2014) CDM-520A (K) (2010) CDM-6065 (2013) CDM-6150 (2012) CDM-6240 (2015) CDM-6365H (2012) CDM-6485H (2013) CDM-816 CDM-816 (2010) CDM-816 (2011) CDM-816-D (2018) CDM-833 CDM-833 CDM-833.00 (2010) CDM-833H CDM-835E VI.00 (2015) CDM-835E VII.00I (2015) CDM-835E VIII.00I (2015) CDM-843 CDM-853.00 (2010) CDM-853N.00I (2017) CDM-855E CDM-855E (2009) CDM-855EG CDM-855EK CDM-855EM CDM-856 CDM-856D (2010) CDM-860.00 (2010) CMD-835E (2009) CMD-835E.01I (2010) LG-160DT (2012) LG-833NIV.00I (2017) LG20, LG25, LG30, LG35 (2013) LG50-60-70 (2014) LG50CVII.00I (2015) LG833NG (2015) ZL50NC (2015)

Схема > Не выбрано DIESEL ENGINE SYSTEM (30801900161) THROTTLE CONTROL ASSEMBLY (30801000313) TORQUE CONVERTER SYSTEM (30802900090) UPPER DRIVE SHAFT ASSEMBLY (17405000005) TRANSMISSION SYSTEM (30803900073) AXLE SYSTEM (30804900008) FRONT DRIVE SHAFT ASSEMBLY (17401000020) MIDDLE SUPPORT (17402000010) MIDDLE /REAR DRIVE SHAFT ASSEMBLY (17409000004) CONTROL SYSTEM (30805900095) SHIFT CONTROL ASSEMBIY (30805000185) TRANSMISSION CONTROL PANEL ASSEMBLY (30805000040) WORKING PUMP CONTROL ASSEMBIY (30805000186) PIPELINE ASSEMBLY OF STEERING GEAR AND CYLINDER (30806000208) PRIORITY VALVE INSTALLATION ASSEMBLY (30806000062) GEAR PUMP INSTALLATION ASSEMBLY (30806000207) HYDRAULIC STEERING GEAR ASSEMBLY (30806000209) TILT CYLINDER PIPELINE INSTALLATION ASSEMBLY (30807000524) MULTIPLE UNIT VALVE PIPELINE INSTALLATION ASSEMBLY (30807000584) LIFT CYLINDER PIPELINE INSTALLATION ASSEMBLY (30807000129) THIRD PIPELINE ASSEMBLY (30807000585) THIRD PIPELINE ASSEMBLY (30807000586) AIR TANK INSTALLMENT ASSEMBLY (30808000290) BRAKE VALVE PIPELINE INSTALLMENT ASSEMBLY (30808000260) FRONT BOOSTER PUMP INSTALLMENT ASSEMBLY (30808000258) REAR BOOSTER PUMP PIPELINE INSTALLMENT ASSEMBLY(30808000261) AIR TANK PIPELINE INSTALLMENT ASSEMBLY (30808000262) EMERGENCY AND PARKING BRAKE SYSTEM (30809900053) FRAME ASSEMBLY (30810900346) IMPLEMENT SYSTEM (30811900258) BUCKET ASSEMBLY (30871900093) CAB SYSTEM (30812900217) CAB SYSTEM (30812900217) CAB SYSTEM (30812000609) CAB SYSTEM (30812000609) OUT PANEL SYSTEM (30813900203) HYDRAULIC TANK ASSEMBLY (30889900054) FUEL TANK ASSEMBLY (30888900037) FUEL TANK ASSEMBLY (30888900040) COUNTER WEIGHT ASSEMBLY (30887000269) HOOD ASSEMBLY (30886900063) ELECTRIAL SYSTEM (30815900229) ELECTRIAL WIRING OF CAB (30815900229) ELECTRIAL WIRING OF CAB (30815900229) ELECTRIAL WIRING OF FRAME (30815900229) ELECTRIAL WIRING OF ENGINE (3300881155990000222299) ELECTRIAL WIRING OF OIL TANK (30815900229) ELECTRIAL WIRING OF COUNTER WEIGHT (30815900229) ELECTRIAL WIRING OF TRANSMISSION (30815900229) ELECTRIAL WIRING OF TORQUE CONVERTER (30815900229) ELECTRIAL WIRING OF SCRUBBER (30815900229) FRONT WIPER ASSEMBLY (60400000569) REAR WIPER ASSEMBLY (60400000572) STAND-ALONE IP ASSEMBLY (60400000998) STAND-ALONE IP ASSEMBLY (60400000998) STAND-ALONE IP ASSEMBLY (60400000999) STAND-ALONE IP ASSEMBLY (60400000999) AIR CONDITION ASSEMBLY (60400000790) EVAPORATOR ASSEMBLY (60900003002) CONDENSER ASSEMBLY (60900003005) FUSE BOX (60400000576) TOOL KIT GREASING POINTS INDICATION LAYOUT LIST OF VULNERABLE PARTS OF THE ENGINE LEFT STEERING CYLINDER (16608029010) RIGHT STEERING CYLINDER (16608029120) TILT CYLINDER (16608064550) LIFT CYLINDER (16608062010) TRANSMISSION ASSEMBLY (ZL30E.5GA) SHAFT I ASSEMBLY (ZL30E.5.1S) SHAFT II ASSEMBLY (ZL30E.5.3S) SHAFT III ASSEMBLY (ZL30E.5.4S) FILTER ASSEMBLY (ZL30E.5.7) CONTROL VALVE (ZL30E.5G.21) OIL TUBE ASSEMBLY (ZL30E.5.13) PISTON DEVICE (ZL30E.5.1.1) FRONT AXLE ASSEMBLY (16480300080) FRONT MAIN REDUCTOR ASSEMBLY (36403000082) FRONT MAIN REDUCTOR ASSEMBLY (36403000082) WHEEL REDUCTOR ASSEMBL (36402000031) WHEEL REDUCTOR ASSEMBL (36402000031) DIFFERENTIAL ASSEMBLY (36403000087) FRONT AXLE HOUSING WELDING (36401000020) FLANGE WELDING (36403000002) REAR AXLE ASSEMBLY (16480305060) REAR MAIN REDUCER ASSEMBLY (36403000086) REAR MAIN REDUCER ASSEMBLY (36403000086) WHEEL REDUCTOR ASSEMBLY (36402000031) WHEEL REDUCTOR ASSEMBLY (36402000031) DIFFERENTIAL ASSEMBLY (36403000087) REAR AXLE HOUSING WELDING (36401000021) FLANGE WELDING (36403000002) HYDRAULIC SCHEMATIC DIAGRAM ELECTRICAL SCHEMATIC

1

2

3

4

5

6

7

8

9

Позиция на иллюстрации	Заводской номер детали		Название детали
1	37423000023		Flange yoke
2	67426000010		Circlip
3	67450000008		Cross axle assembly
4	67465000011		Cover of bushing fork
5	37421000016		Bushing fork
6	56201000101		Oil cup M6
7	67411000016		Seal jacket assembly
8	37416000010		Spline shaft head
9	37418000014		Universal yokes

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
