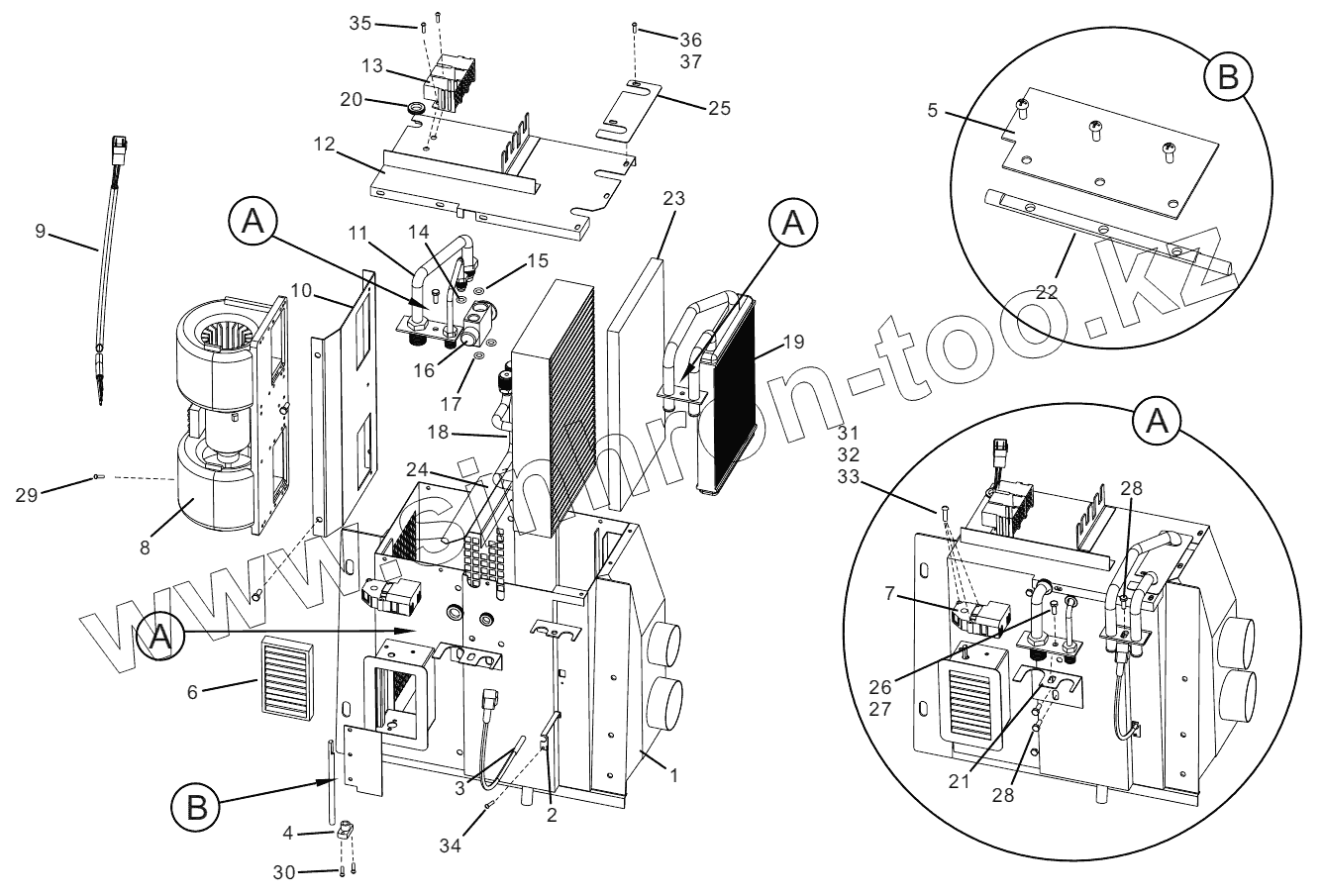

Каталог запасных частей к технике: Lonking (LongGong) LG833NG. EVAPORATOR ASSEMBLY (60900003002)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
29
30
31
32
33
34
35
36
37
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 60100002677 | Evaporation box | |
| 2 | 60100002688 | Temperature control clip | |
| 3 | 60900003025 | Temperature control probe | |
| 4 | 60100002614 | Throttle shaft seat | |
| 5 | 60100002615 | Wind door | |
| 6 | 60100002617 | Filter paper | |
| 7 | 60100002611 | Actuator | |
| 8 | 60100002612 | Blower | |
| 9 | 60900003027 | Blower wire harness | |
| 10 | 60100002681 | Fan base | |
| 11 | 60100002609 | Connecting pipe | |
| 12 | 60100002672 | Cover plate | |
| 13 | 60900003013 | Relay assembly | |
| 14 | 60900003015 | O-ring seal | |
| 15 | 60900003016 | O-ring seal | |
| 16 | 60100002624 | Expansion valve | |
| 17 | 60900003017 | O-ring seal | |
| 18 | 60100002605 | Evaporator core | |
| 19 | 60100002623 | Amolile radiator | |
| 20 | 60900003024 | Sheath | |
| 21 | 60100002689 | Connecting pipe fixing plate | |
| 22 | 60100002616 | Throttle shaft | |
| 23 | 60900003021 | Water strainer | |
| 24 | 60100002690 | Dash plate | |
| 25 | 60100002691 | Wanter tank seal plate | |
| 26 | 51204080914 | Bolt | |
| 27 | 51421080115 | Plain washer | |
| 28 | 60900003042 | Hexagon bolts | |
| 29 | 60900003035 | Round cross bolt | |
| 30 | 60900003043 | Round cross bolt | |
| 31 | 60900003033 | Round cross bolt | |
| 32 | 51421060115 | Washer | |
| 33 | 51401060107 | Washer | |
| 34 | 60900003037 | Self tapping screw | |
| 35 | 60900003030 | Inside hexagonal bolt | |
| 36 | 60900003032 | Round cross bolt | |
| 37 | 60900003036 | Larger pad |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
