DIESEL ENGINE SYSTEM (30801900161)

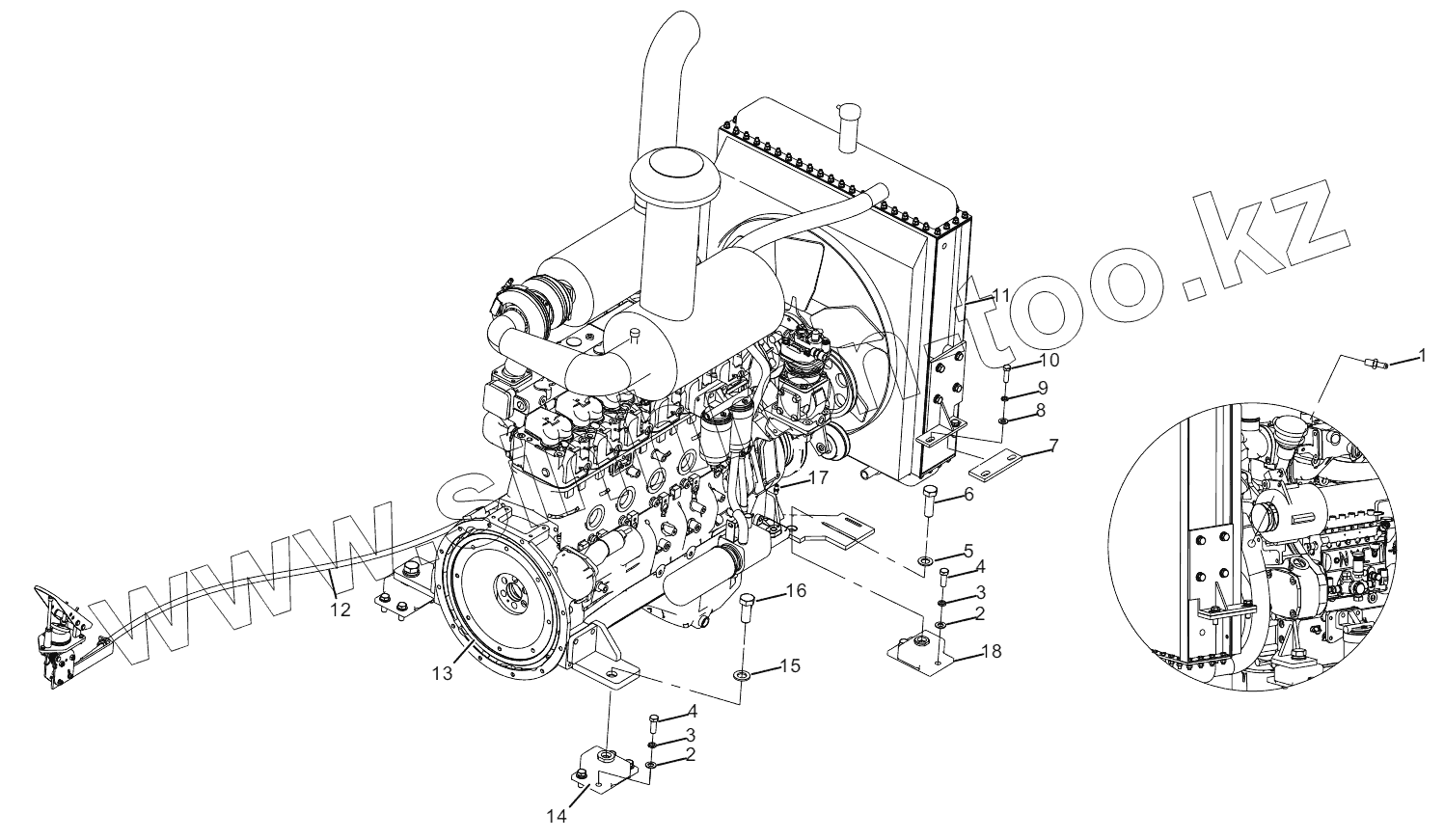

Каталог запасных частей к технике: Lonking (LongGong) LG833NG. DIESEL ENGINE SYSTEM (30801900161)
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
CDM-1165 (2009)
CDM-1185 (2009)
CDM-1220 (2009)
CDM-307 (2013)
CDM-308 (2013)
CDM-312 (2013)
CDM-512D (2014)
CDM-514D (2014)
CDM-520A (K) (2010)
CDM-6065 (2013)
CDM-6150 (2012)
CDM-6240 (2015)
CDM-6365H (2012)
CDM-6485H (2013)
CDM-816
CDM-816 (2010)
CDM-816 (2011)
CDM-816-D (2018)
CDM-833
CDM-833
CDM-833.00 (2010)
CDM-833H
CDM-835E VI.00 (2015)
CDM-835E VII.00I (2015)
CDM-835E VIII.00I (2015)
CDM-843
CDM-853.00 (2010)
CDM-853N.00I (2017)
CDM-855E
CDM-855E (2009)
CDM-855EG
CDM-855EK
CDM-855EM
CDM-856
CDM-856D (2010)
CDM-860.00 (2010)
CMD-835E (2009)
CMD-835E.01I (2010)
LG-160DT (2012)
LG-833NIV.00I (2017)
LG20, LG25, LG30, LG35 (2013)
LG50-60-70 (2014)
LG50CVII.00I (2015)
LG833NG (2015)
ZL50NC (2015)
Схема
>
Не выбрано
DIESEL ENGINE SYSTEM (30801900161)
THROTTLE CONTROL ASSEMBLY (30801000313)
TORQUE CONVERTER SYSTEM (30802900090)
UPPER DRIVE SHAFT ASSEMBLY (17405000005)
TRANSMISSION SYSTEM (30803900073)
AXLE SYSTEM (30804900008)
FRONT DRIVE SHAFT ASSEMBLY (17401000020)
MIDDLE SUPPORT (17402000010)
MIDDLE /REAR DRIVE SHAFT ASSEMBLY (17409000004)
CONTROL SYSTEM (30805900095)
SHIFT CONTROL ASSEMBIY (30805000185)
TRANSMISSION CONTROL PANEL ASSEMBLY (30805000040)
WORKING PUMP CONTROL ASSEMBIY (30805000186)
PIPELINE ASSEMBLY OF STEERING GEAR AND CYLINDER (30806000208)
PRIORITY VALVE INSTALLATION ASSEMBLY (30806000062)
GEAR PUMP INSTALLATION ASSEMBLY (30806000207)
HYDRAULIC STEERING GEAR ASSEMBLY (30806000209)
TILT CYLINDER PIPELINE INSTALLATION ASSEMBLY (30807000524)
MULTIPLE UNIT VALVE PIPELINE INSTALLATION ASSEMBLY (30807000584)
LIFT CYLINDER PIPELINE INSTALLATION ASSEMBLY (30807000129)
THIRD PIPELINE ASSEMBLY (30807000585)
THIRD PIPELINE ASSEMBLY (30807000586)
AIR TANK INSTALLMENT ASSEMBLY (30808000290)
BRAKE VALVE PIPELINE INSTALLMENT ASSEMBLY (30808000260)
FRONT BOOSTER PUMP INSTALLMENT ASSEMBLY (30808000258)
REAR BOOSTER PUMP PIPELINE INSTALLMENT ASSEMBLY(30808000261)
AIR TANK PIPELINE INSTALLMENT ASSEMBLY (30808000262)
EMERGENCY AND PARKING BRAKE SYSTEM (30809900053)
FRAME ASSEMBLY (30810900346)
IMPLEMENT SYSTEM (30811900258)
BUCKET ASSEMBLY (30871900093)
CAB SYSTEM (30812900217)
CAB SYSTEM (30812900217)
CAB SYSTEM (30812000609)
CAB SYSTEM (30812000609)
OUT PANEL SYSTEM (30813900203)
HYDRAULIC TANK ASSEMBLY (30889900054)
FUEL TANK ASSEMBLY (30888900037)
FUEL TANK ASSEMBLY (30888900040)
COUNTER WEIGHT ASSEMBLY (30887000269)
HOOD ASSEMBLY (30886900063)
ELECTRIAL SYSTEM (30815900229)
ELECTRIAL WIRING OF CAB (30815900229)
ELECTRIAL WIRING OF CAB (30815900229)
ELECTRIAL WIRING OF FRAME (30815900229)
ELECTRIAL WIRING OF ENGINE (3300881155990000222299)
ELECTRIAL WIRING OF OIL TANK (30815900229)
ELECTRIAL WIRING OF COUNTER WEIGHT (30815900229)
ELECTRIAL WIRING OF TRANSMISSION (30815900229)
ELECTRIAL WIRING OF TORQUE CONVERTER (30815900229)
ELECTRIAL WIRING OF SCRUBBER (30815900229)
FRONT WIPER ASSEMBLY (60400000569)
REAR WIPER ASSEMBLY (60400000572)
STAND-ALONE IP ASSEMBLY (60400000998)
STAND-ALONE IP ASSEMBLY (60400000998)
STAND-ALONE IP ASSEMBLY (60400000999)
STAND-ALONE IP ASSEMBLY (60400000999)
AIR CONDITION ASSEMBLY (60400000790)
EVAPORATOR ASSEMBLY (60900003002)
CONDENSER ASSEMBLY (60900003005)
FUSE BOX (60400000576)
TOOL KIT
GREASING POINTS INDICATION LAYOUT
LIST OF VULNERABLE PARTS OF THE ENGINE
LEFT STEERING CYLINDER (16608029010)
RIGHT STEERING CYLINDER (16608029120)
TILT CYLINDER (16608064550)
LIFT CYLINDER (16608062010)
TRANSMISSION ASSEMBLY (ZL30E.5GA)
SHAFT I ASSEMBLY (ZL30E.5.1S)
SHAFT II ASSEMBLY (ZL30E.5.3S)
SHAFT III ASSEMBLY (ZL30E.5.4S)
FILTER ASSEMBLY (ZL30E.5.7)
CONTROL VALVE (ZL30E.5G.21)
OIL TUBE ASSEMBLY (ZL30E.5.13)
PISTON DEVICE (ZL30E.5.1.1)
FRONT AXLE ASSEMBLY (16480300080)
FRONT MAIN REDUCTOR ASSEMBLY (36403000082)
FRONT MAIN REDUCTOR ASSEMBLY (36403000082)
WHEEL REDUCTOR ASSEMBL (36402000031)
WHEEL REDUCTOR ASSEMBL (36402000031)
DIFFERENTIAL ASSEMBLY (36403000087)
FRONT AXLE HOUSING WELDING (36401000020)
FLANGE WELDING (36403000002)
REAR AXLE ASSEMBLY (16480305060)
REAR MAIN REDUCER ASSEMBLY (36403000086)
REAR MAIN REDUCER ASSEMBLY (36403000086)
WHEEL REDUCTOR ASSEMBLY (36402000031)
WHEEL REDUCTOR ASSEMBLY (36402000031)
DIFFERENTIAL ASSEMBLY (36403000087)
REAR AXLE HOUSING WELDING (36401000021)
FLANGE WELDING (36403000002)
HYDRAULIC SCHEMATIC DIAGRAM
ELECTRICAL SCHEMATIC
1
2
2
3
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Позиция на иллюстрации
Заводской номер детали
Название детали
1
30801100091
Joint of air heater
2
51421120115
Washer
3
51401120107
Spring lock washer
4
51204121414
Bolt M14x40
5
51421160115
Washer
6
51204161714
Bolt
7
60922010027
Rubber pad of water tank
8
51421110115
Plain washer
9
51401110107
Spring lock washer
10
51204111514
Bolt
11
17101000583
Radiator assembly
12
30801000313
Throttle control assembly
13
60100001544
Diesel engine assembly
14
60101100716
Rear shock absorber of engine
15
51421170115
Washer 24
16
51204171814
Bolt M24x60
17
30801100970
Oil pressure sensor connector
18
60101100717
Front shock absorber of engine
