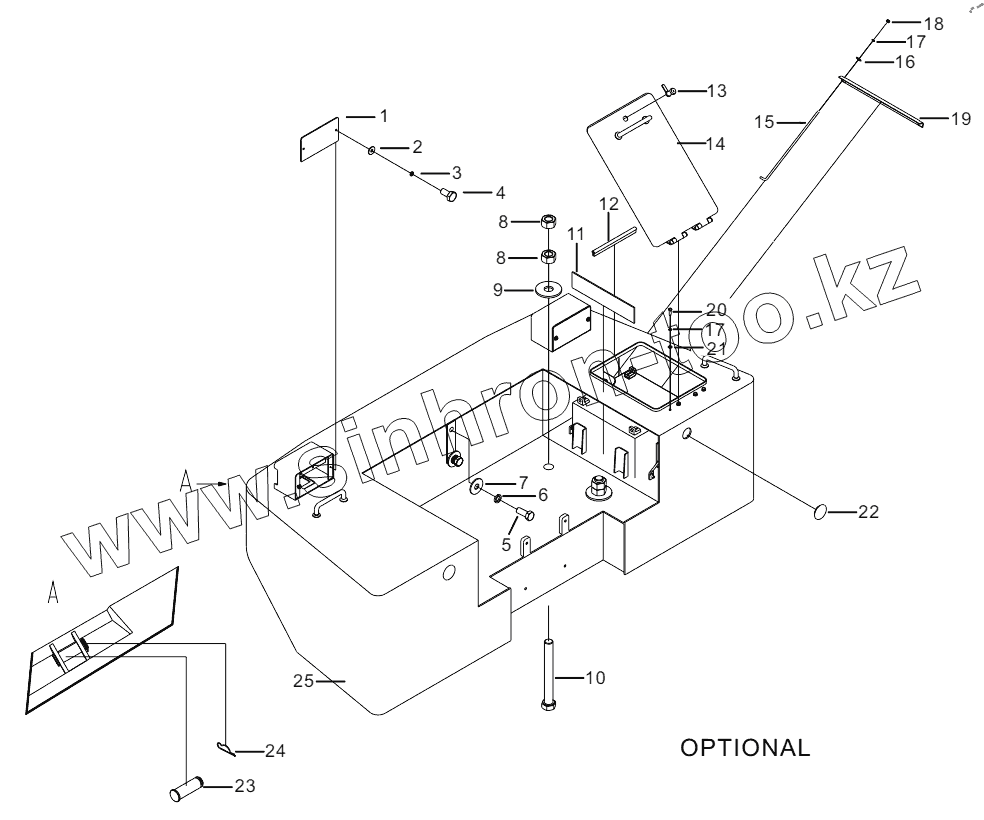

COUNTER WEIGHT ASSEMBLY (30887900058)
Каталог запасных частей к технике: Lonking (LongGong) LG50CVII.00I. COUNTER WEIGHT ASSEMBLY (30887900058)
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
CDM-1165 (2009)
CDM-1185 (2009)
CDM-1220 (2009)
CDM-307 (2013)
CDM-308 (2013)
CDM-312 (2013)
CDM-512D (2014)
CDM-514D (2014)
CDM-520A (K) (2010)
CDM-6065 (2013)
CDM-6150 (2012)
CDM-6240 (2015)
CDM-6365H (2012)
CDM-6485H (2013)
CDM-816
CDM-816 (2010)
CDM-816 (2011)
CDM-816-D (2018)
CDM-833
CDM-833
CDM-833.00 (2010)
CDM-833H
CDM-835E VI.00 (2015)
CDM-835E VII.00I (2015)
CDM-835E VIII.00I (2015)
CDM-843
CDM-853.00 (2010)
CDM-853N.00I (2017)
CDM-855E
CDM-855E (2009)
CDM-855EG
CDM-855EK
CDM-855EM
CDM-856
CDM-856D (2010)
CDM-860.00 (2010)
CMD-835E (2009)
CMD-835E.01I (2010)
LG-160DT (2012)
LG-833NIV.00I (2017)
LG20, LG25, LG30, LG35 (2013)
LG50-60-70 (2014)
LG50CVII.00I (2015)
LG833NG (2015)
ZL50NC (2015)
Схема
>
Не выбрано
DIESEL ENGINE SYSTEM (30801900165)
THROTTLE CONTROL ASSEMBLY (30801000304)
TORQUE CONVERTER SYSTEM (30802900086)
TRANSMISSION SYSTEM (30803900064)
AXLE SYSTEM (30804900066)
REAR DRIVE SHAFT ASSEMBLY (17404000049)
MIDDLE SUPPORT (17402000009)
MIDDLE DRIVE SHAFT ASSEMBLY (17403000026)
FRONT DRIVE SHAFT ASSEMBLY (17401000069)
CONTROL SYSTEM (30805900008)
STEERING CYLINDER PIPELINE INSTALLMENT ASSEMBLY(30806900110)
PRIORITY VALVE PIPELINE INSTALLMENT ASSEMBLY (30806900110)
STEERING PUMP PIPELINE INSTALLMENT ASSEMBLY (30806900110)
HYDRAULIC STEERING GEAR ASSEMBLY (30806001107)
WORKING PUMP PIPELINE ASSEMBLY (30807900323)
MULIIPE VALVE PIPELINE ASSEMBLY (30807900323)
BOOM CYLINDER PIPRLINE ASSEMBLY (30807900323)
BUCKET CYLINDER PIPRLINE ASSEMBLY (30807900323)
PILOT CONTROL ASSEMBLY (30807000511)
AIR TANK INSTALLMENT ASSEMBLY (30808900109)
RELIEF VALVE INSTALLMENT ASSEMBLY (30808900109)
AIR TANK PIPELINE INSTALLMENT ASSEMBLY (30808900109)
BRAKE VALVE PIPELINE INSTALLMENT ASSEMBLY (30808900109)
BOOSTER PUMP INSTALLMENT ASSEMBLY (30808900109)
FRONT AXLE PIPELINE INSTALLMENT ASSEMBLY (30808900109)
REAR AXLE PIPELINE INSTALLMENT ASSEMBLY (30808900109)
EMERGENCY AND PARKING BRAKE SYSTEM (30809900050)
FRAME ASSEMBLY (30810900337)
FRAME ASSEMBLY (30810900337)
IMPLEMENT SYSTEM STARDANT (30811900254)
IMPLEMENT SYSTEM EXPORT (30811900267)
BUCKET ASSEMBLY (30871900077)
CAB SYSTEM STARDANT (30812900225)
CAB SYSTEM STARDANT (30812900225)
CAB SYSTEM EXPORT (30812900218)
CAB SYSTEM EXPORT (30812900218)
OUT PANEL SYSTEM STARDANT (30813900218)
OUT PANEL SYSTEM EXPORT (30813900223)
HYDRAULIC TANK ASSEMBLY STARDANT (30889900058)
HYDRAULIC TANK ASSEMBLY EXPORT (30889900062)
FUEL TANK ASSEMBLY STARDANT (30888900041)
FUEL TANK ASSEMBLY EXPORT (30888900004)
COUNTER WEIGHT ASSEMBLY STARDANT (30887900059)
COUNTER WEIGHT ASSEMBLY (30887900058)
HOOD ASSEMBLY (30886900076)
ELECTRIAL SYSTEM (30815900222)
ELECTRIAL WIRING OF CAB (30815900222)
AIR CONDITIONER SYSTEM ASSEMBLY (6600440000000000664411)
EVAPORATOR ASSEMBLY (60900003002)
CONDENSER ASSEMBLY (60100002345)
FRONT WIPER ASSEMBLY (60400000569)
REAR WIPER ASSEMBLY (60400000572)
INSTRUMENT PANEL ASSEMBLY (60400000577)
INSTRUMENT PANEL ASSEMBLY (60400000738)
ELECTRIAL WIRING OF FRAME (30815900222)
ELECTRIAL WIRING OF FRAME (30815900222)
ELECTRIAL WIRING OF BRAKE VALVE (30815900222)
ELECTRIAL WIRING OF OIL TANK (30815900222)
ELECTRIAL WIRING OF COUNTER WEIGHT (30815900222)
ELECTRIAL WIRING OF TRANSMISSION (30815900222)
ELECTRIAL WIRING OF SCRUBBER (30815900222)
TOOL KIT
GREASING POINTS INDICATION LAYOUT
LIST OF VULNERABLE PARTS OF THE ENGINE
LEFT STEERING CYLINDER (16608047480)
RIGHT STEERING CYLINDER (16608047490)
TILT CYLINDER (16608112030)
LIFT CYLINDER (16608107010)
TORQUE CONVERTER ASSEMBLY (LG853.02.01B)
TRANSMISSION ASSEMBLY (LG853.03.01JA)
SHAFT II ASSEMBLY (LG853.03.01.02)
SHAFT III ASSEMBLY (LG853.03.01.05J)
GEAR I PISTON ASSEMBLY (LG853.03.01.06)
FRICTION PLATE SEPARATING BRACKET ASSEMBLY (LG853.03.01.08)
REVERSE GEAR PISTON ASSEMBLY (LG853.03.01.09)
OIL PAN ASSEMBLY (LG853.03.01.04)
SHAFT IV ASSEMBLY (LG853.03.01.03J)
SHAFT I ASSEMBLY(LG853.03.01.01)
AXLE ASSEMBLY (16480500030)
MAIN REDUCTOR ASSEMBLY (36403000030)
WHEEL REDUCTOR ASSEMBLY (36403000029)
DIFFERENTIAL ASSEMBLY (36403000028)
AXLE HOUSING ASSEMBLY (36401000007)
AXLE ASSEMBLY (16480505000)
REAR MAIN DRIVE ASSEMBLY (36403000016)
WHEEL REDUCTOR ASSEMBLY (36402000048)
DIFFERENTIAL ASSEMBLY (36403000015)
AXLE HOUSING ASSEMBLY (36401000003)
HYDRAULIC PRINCIPLE DIAGRAM
ELECTRICAL SCHEMATIC
ELECTRICAL SYSTEM PRINCIPLE DIAGRAM
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
24
25
Позиция на иллюстрации
Заводской номер детали
Название детали
1
30887101149
Lamp cover seal plate
2
51421080115
Plain washer
3
51401080107
Spring lock washer
4
51204080814
Bolt
5
51204171814
Bolt M24x60
6
51401170107
Spring lock washer
7
51420170121
Washer 24
8
51309002519
Nut M36x2
9
30887100709
Washer
10
30887100156
Counterweight bolt
11
60922010024
Battery rubber pad
12
60919010041
Counterweight rubber strip
13
30887000345
Battery cover lock
14
30887000388
Left cover assembly of battery box
15
30887100042
Battery drawing
16
51420090119
Washer 8
17
51401090107
Washer
18
51307000919
Nut
19
30887100936
Angle iron assembly
20
51204091014
Bolt
21
51421090115
Washer
22
30887100429
Rubber sleeve
23
30887000456
Kingpin
24
51536000101
Double layer compound spring cotter pin 4x44
25
30887000528
Counter weight welding
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
