Каталог запасных частей к технике: Lonking (LongGong) LG50CVII.00I. CONDENSER ASSEMBLY (60100002345)

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CDM-1165 (2009) CDM-1185 (2009) CDM-1220 (2009) CDM-307 (2013) CDM-308 (2013) CDM-312 (2013) CDM-512D (2014) CDM-514D (2014) CDM-520A (K) (2010) CDM-6065 (2013) CDM-6150 (2012) CDM-6240 (2015) CDM-6365H (2012) CDM-6485H (2013) CDM-816 CDM-816 (2010) CDM-816 (2011) CDM-816-D (2018) CDM-833 CDM-833 CDM-833.00 (2010) CDM-833H CDM-835E VI.00 (2015) CDM-835E VII.00I (2015) CDM-835E VIII.00I (2015) CDM-843 CDM-853.00 (2010) CDM-853N.00I (2017) CDM-855E CDM-855E (2009) CDM-855EG CDM-855EK CDM-855EM CDM-856 CDM-856D (2010) CDM-860.00 (2010) CMD-835E (2009) CMD-835E.01I (2010) LG-160DT (2012) LG-833NIV.00I (2017) LG20, LG25, LG30, LG35 (2013) LG50-60-70 (2014) LG50CVII.00I (2015) LG833NG (2015) ZL50NC (2015)

Схема > Не выбрано DIESEL ENGINE SYSTEM (30801900165) THROTTLE CONTROL ASSEMBLY (30801000304) TORQUE CONVERTER SYSTEM (30802900086) TRANSMISSION SYSTEM (30803900064) AXLE SYSTEM (30804900066) REAR DRIVE SHAFT ASSEMBLY (17404000049) MIDDLE SUPPORT (17402000009) MIDDLE DRIVE SHAFT ASSEMBLY (17403000026) FRONT DRIVE SHAFT ASSEMBLY (17401000069) CONTROL SYSTEM (30805900008) STEERING CYLINDER PIPELINE INSTALLMENT ASSEMBLY(30806900110) PRIORITY VALVE PIPELINE INSTALLMENT ASSEMBLY (30806900110) STEERING PUMP PIPELINE INSTALLMENT ASSEMBLY (30806900110) HYDRAULIC STEERING GEAR ASSEMBLY (30806001107) WORKING PUMP PIPELINE ASSEMBLY (30807900323) MULIIPE VALVE PIPELINE ASSEMBLY (30807900323) BOOM CYLINDER PIPRLINE ASSEMBLY (30807900323) BUCKET CYLINDER PIPRLINE ASSEMBLY (30807900323) PILOT CONTROL ASSEMBLY (30807000511) AIR TANK INSTALLMENT ASSEMBLY (30808900109) RELIEF VALVE INSTALLMENT ASSEMBLY (30808900109) AIR TANK PIPELINE INSTALLMENT ASSEMBLY (30808900109) BRAKE VALVE PIPELINE INSTALLMENT ASSEMBLY (30808900109) BOOSTER PUMP INSTALLMENT ASSEMBLY (30808900109) FRONT AXLE PIPELINE INSTALLMENT ASSEMBLY (30808900109) REAR AXLE PIPELINE INSTALLMENT ASSEMBLY (30808900109) EMERGENCY AND PARKING BRAKE SYSTEM (30809900050) FRAME ASSEMBLY (30810900337) FRAME ASSEMBLY (30810900337) IMPLEMENT SYSTEM STARDANT (30811900254) IMPLEMENT SYSTEM EXPORT (30811900267) BUCKET ASSEMBLY (30871900077) CAB SYSTEM STARDANT (30812900225) CAB SYSTEM STARDANT (30812900225) CAB SYSTEM EXPORT (30812900218) CAB SYSTEM EXPORT (30812900218) OUT PANEL SYSTEM STARDANT (30813900218) OUT PANEL SYSTEM EXPORT (30813900223) HYDRAULIC TANK ASSEMBLY STARDANT (30889900058) HYDRAULIC TANK ASSEMBLY EXPORT (30889900062) FUEL TANK ASSEMBLY STARDANT (30888900041) FUEL TANK ASSEMBLY EXPORT (30888900004) COUNTER WEIGHT ASSEMBLY STARDANT (30887900059) COUNTER WEIGHT ASSEMBLY (30887900058) HOOD ASSEMBLY (30886900076) ELECTRIAL SYSTEM (30815900222) ELECTRIAL WIRING OF CAB (30815900222) AIR CONDITIONER SYSTEM ASSEMBLY (6600440000000000664411) EVAPORATOR ASSEMBLY (60900003002) CONDENSER ASSEMBLY (60100002345) FRONT WIPER ASSEMBLY (60400000569) REAR WIPER ASSEMBLY (60400000572) INSTRUMENT PANEL ASSEMBLY (60400000577) INSTRUMENT PANEL ASSEMBLY (60400000738) ELECTRIAL WIRING OF FRAME (30815900222) ELECTRIAL WIRING OF FRAME (30815900222) ELECTRIAL WIRING OF BRAKE VALVE (30815900222) ELECTRIAL WIRING OF OIL TANK (30815900222) ELECTRIAL WIRING OF COUNTER WEIGHT (30815900222) ELECTRIAL WIRING OF TRANSMISSION (30815900222) ELECTRIAL WIRING OF SCRUBBER (30815900222) TOOL KIT GREASING POINTS INDICATION LAYOUT LIST OF VULNERABLE PARTS OF THE ENGINE LEFT STEERING CYLINDER (16608047480) RIGHT STEERING CYLINDER (16608047490) TILT CYLINDER (16608112030) LIFT CYLINDER (16608107010) TORQUE CONVERTER ASSEMBLY (LG853.02.01B) TRANSMISSION ASSEMBLY (LG853.03.01JA) SHAFT II ASSEMBLY (LG853.03.01.02) SHAFT III ASSEMBLY (LG853.03.01.05J) GEAR I PISTON ASSEMBLY (LG853.03.01.06) FRICTION PLATE SEPARATING BRACKET ASSEMBLY (LG853.03.01.08) REVERSE GEAR PISTON ASSEMBLY (LG853.03.01.09) OIL PAN ASSEMBLY (LG853.03.01.04) SHAFT IV ASSEMBLY (LG853.03.01.03J) SHAFT I ASSEMBLY(LG853.03.01.01) AXLE ASSEMBLY (16480500030) MAIN REDUCTOR ASSEMBLY (36403000030) WHEEL REDUCTOR ASSEMBLY (36403000029) DIFFERENTIAL ASSEMBLY (36403000028) AXLE HOUSING ASSEMBLY (36401000007) AXLE ASSEMBLY (16480505000) REAR MAIN DRIVE ASSEMBLY (36403000016) WHEEL REDUCTOR ASSEMBLY (36402000048) DIFFERENTIAL ASSEMBLY (36403000015) AXLE HOUSING ASSEMBLY (36401000003) HYDRAULIC PRINCIPLE DIAGRAM ELECTRICAL SCHEMATIC ELECTRICAL SYSTEM PRINCIPLE DIAGRAM

1

2

3

4

5

6

7

7

8

9

9

10

11

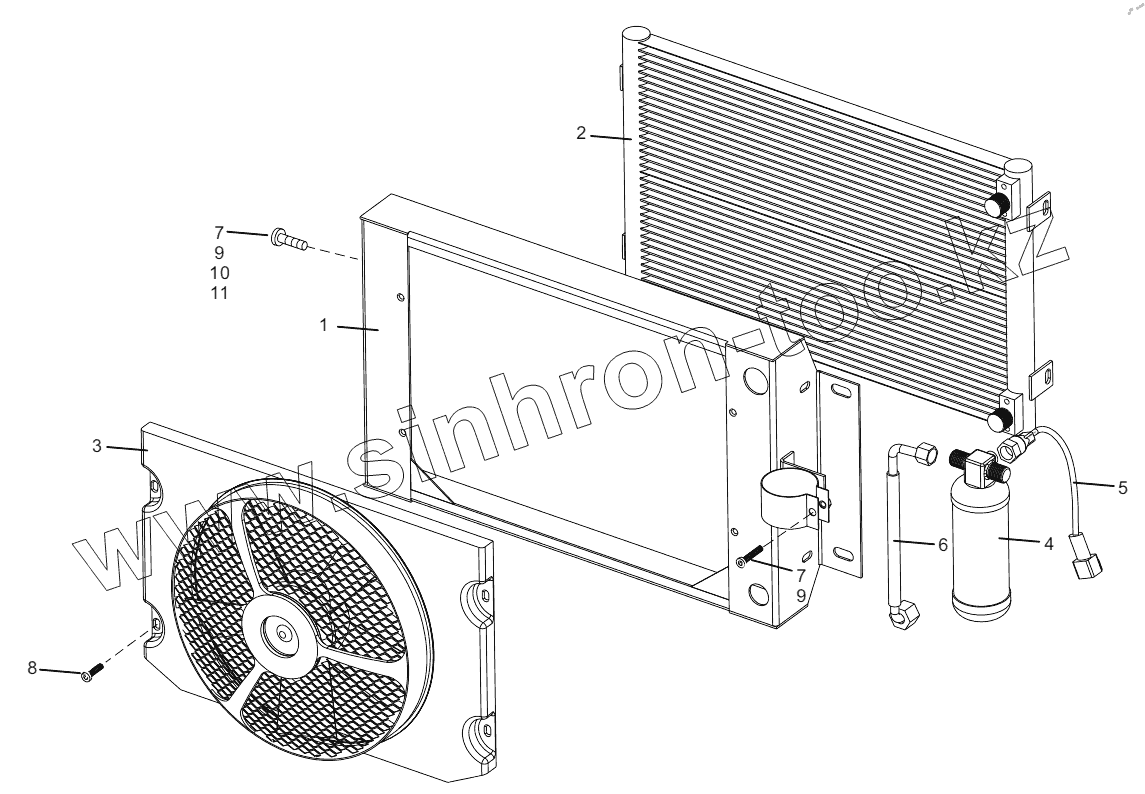

Позиция на иллюстрации	Заводской номер детали		Название детали
1	60100002693		Condenser support
2	60100002602		Condenser core
3	60100002598		Cooling fan
4	60100002633		Drying bottle
5	60900003026		Pressure switch
6	60100002644		CF tube
7	51204081014		Bolt
8	60900003042		Hexagon bolts
9	51421080115		Plain washer
10	51401080107		Spring lock washer
11	60900003031		Nut

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
