BUCKET ASSEMBLY (30871900077)

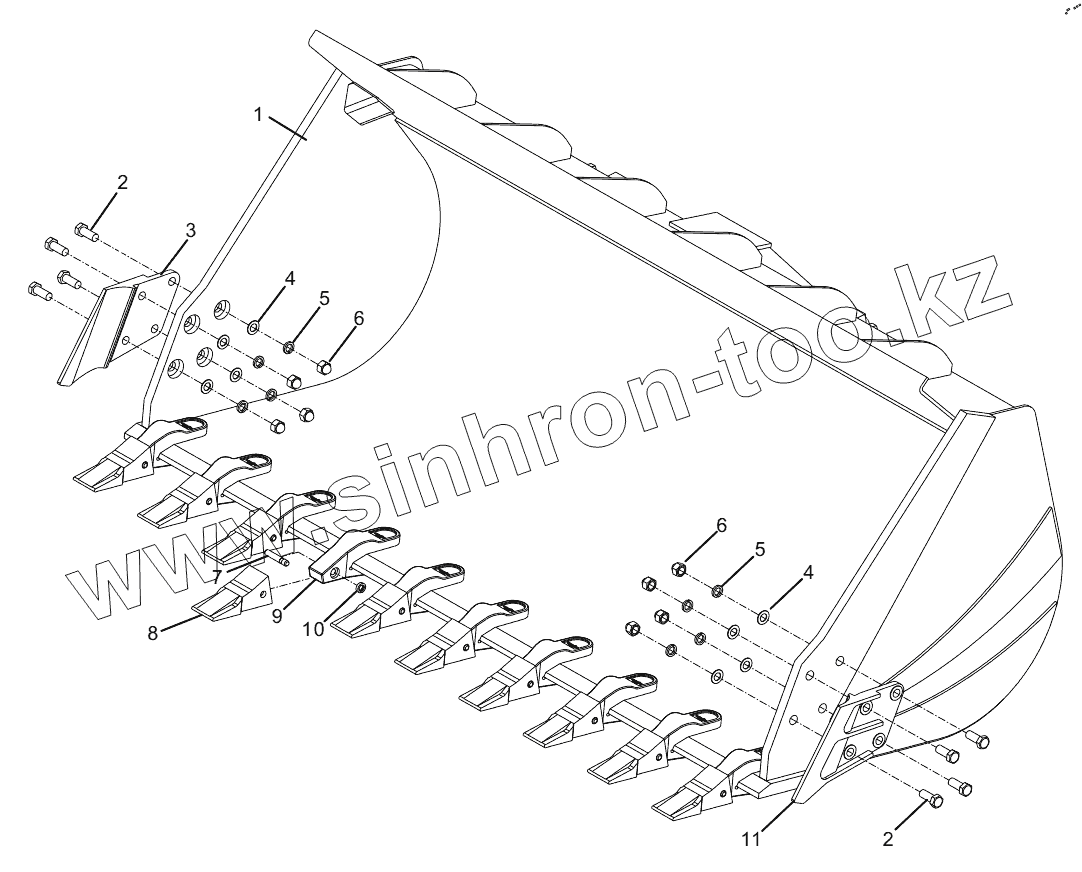

Каталог запасных частей к технике: Lonking (LongGong) LG50CVII.00I. BUCKET ASSEMBLY (30871900077)
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
CDM-1165 (2009)
CDM-1185 (2009)
CDM-1220 (2009)
CDM-307 (2013)
CDM-308 (2013)
CDM-312 (2013)
CDM-512D (2014)
CDM-514D (2014)
CDM-520A (K) (2010)
CDM-6065 (2013)
CDM-6150 (2012)
CDM-6240 (2015)
CDM-6365H (2012)
CDM-6485H (2013)
CDM-816
CDM-816 (2010)
CDM-816 (2011)
CDM-816-D (2018)
CDM-833
CDM-833
CDM-833.00 (2010)
CDM-833H
CDM-835E VI.00 (2015)
CDM-835E VII.00I (2015)
CDM-835E VIII.00I (2015)
CDM-843
CDM-853.00 (2010)
CDM-853N.00I (2017)
CDM-855E
CDM-855E (2009)
CDM-855EG
CDM-855EK
CDM-855EM
CDM-856
CDM-856D (2010)
CDM-860.00 (2010)
CMD-835E (2009)
CMD-835E.01I (2010)
LG-160DT (2012)
LG-833NIV.00I (2017)
LG20, LG25, LG30, LG35 (2013)
LG50-60-70 (2014)
LG50CVII.00I (2015)
LG833NG (2015)
ZL50NC (2015)
Схема
>
Не выбрано
DIESEL ENGINE SYSTEM (30801900165)
THROTTLE CONTROL ASSEMBLY (30801000304)
TORQUE CONVERTER SYSTEM (30802900086)
TRANSMISSION SYSTEM (30803900064)
AXLE SYSTEM (30804900066)
REAR DRIVE SHAFT ASSEMBLY (17404000049)
MIDDLE SUPPORT (17402000009)
MIDDLE DRIVE SHAFT ASSEMBLY (17403000026)
FRONT DRIVE SHAFT ASSEMBLY (17401000069)
CONTROL SYSTEM (30805900008)
STEERING CYLINDER PIPELINE INSTALLMENT ASSEMBLY(30806900110)
PRIORITY VALVE PIPELINE INSTALLMENT ASSEMBLY (30806900110)
STEERING PUMP PIPELINE INSTALLMENT ASSEMBLY (30806900110)
HYDRAULIC STEERING GEAR ASSEMBLY (30806001107)
WORKING PUMP PIPELINE ASSEMBLY (30807900323)
MULIIPE VALVE PIPELINE ASSEMBLY (30807900323)
BOOM CYLINDER PIPRLINE ASSEMBLY (30807900323)
BUCKET CYLINDER PIPRLINE ASSEMBLY (30807900323)
PILOT CONTROL ASSEMBLY (30807000511)
AIR TANK INSTALLMENT ASSEMBLY (30808900109)
RELIEF VALVE INSTALLMENT ASSEMBLY (30808900109)
AIR TANK PIPELINE INSTALLMENT ASSEMBLY (30808900109)
BRAKE VALVE PIPELINE INSTALLMENT ASSEMBLY (30808900109)
BOOSTER PUMP INSTALLMENT ASSEMBLY (30808900109)
FRONT AXLE PIPELINE INSTALLMENT ASSEMBLY (30808900109)
REAR AXLE PIPELINE INSTALLMENT ASSEMBLY (30808900109)
EMERGENCY AND PARKING BRAKE SYSTEM (30809900050)
FRAME ASSEMBLY (30810900337)
FRAME ASSEMBLY (30810900337)
IMPLEMENT SYSTEM STARDANT (30811900254)
IMPLEMENT SYSTEM EXPORT (30811900267)
BUCKET ASSEMBLY (30871900077)
CAB SYSTEM STARDANT (30812900225)
CAB SYSTEM STARDANT (30812900225)
CAB SYSTEM EXPORT (30812900218)
CAB SYSTEM EXPORT (30812900218)
OUT PANEL SYSTEM STARDANT (30813900218)
OUT PANEL SYSTEM EXPORT (30813900223)
HYDRAULIC TANK ASSEMBLY STARDANT (30889900058)
HYDRAULIC TANK ASSEMBLY EXPORT (30889900062)
FUEL TANK ASSEMBLY STARDANT (30888900041)
FUEL TANK ASSEMBLY EXPORT (30888900004)
COUNTER WEIGHT ASSEMBLY STARDANT (30887900059)
COUNTER WEIGHT ASSEMBLY (30887900058)
HOOD ASSEMBLY (30886900076)
ELECTRIAL SYSTEM (30815900222)
ELECTRIAL WIRING OF CAB (30815900222)
AIR CONDITIONER SYSTEM ASSEMBLY (6600440000000000664411)
EVAPORATOR ASSEMBLY (60900003002)
CONDENSER ASSEMBLY (60100002345)
FRONT WIPER ASSEMBLY (60400000569)
REAR WIPER ASSEMBLY (60400000572)
INSTRUMENT PANEL ASSEMBLY (60400000577)
INSTRUMENT PANEL ASSEMBLY (60400000738)
ELECTRIAL WIRING OF FRAME (30815900222)
ELECTRIAL WIRING OF FRAME (30815900222)
ELECTRIAL WIRING OF BRAKE VALVE (30815900222)
ELECTRIAL WIRING OF OIL TANK (30815900222)
ELECTRIAL WIRING OF COUNTER WEIGHT (30815900222)
ELECTRIAL WIRING OF TRANSMISSION (30815900222)
ELECTRIAL WIRING OF SCRUBBER (30815900222)
TOOL KIT
GREASING POINTS INDICATION LAYOUT
LIST OF VULNERABLE PARTS OF THE ENGINE
LEFT STEERING CYLINDER (16608047480)
RIGHT STEERING CYLINDER (16608047490)
TILT CYLINDER (16608112030)
LIFT CYLINDER (16608107010)
TORQUE CONVERTER ASSEMBLY (LG853.02.01B)
TRANSMISSION ASSEMBLY (LG853.03.01JA)
SHAFT II ASSEMBLY (LG853.03.01.02)
SHAFT III ASSEMBLY (LG853.03.01.05J)
GEAR I PISTON ASSEMBLY (LG853.03.01.06)
FRICTION PLATE SEPARATING BRACKET ASSEMBLY (LG853.03.01.08)
REVERSE GEAR PISTON ASSEMBLY (LG853.03.01.09)
OIL PAN ASSEMBLY (LG853.03.01.04)
SHAFT IV ASSEMBLY (LG853.03.01.03J)
SHAFT I ASSEMBLY(LG853.03.01.01)
AXLE ASSEMBLY (16480500030)
MAIN REDUCTOR ASSEMBLY (36403000030)
WHEEL REDUCTOR ASSEMBLY (36403000029)
DIFFERENTIAL ASSEMBLY (36403000028)
AXLE HOUSING ASSEMBLY (36401000007)
AXLE ASSEMBLY (16480505000)
REAR MAIN DRIVE ASSEMBLY (36403000016)
WHEEL REDUCTOR ASSEMBLY (36402000048)
DIFFERENTIAL ASSEMBLY (36403000015)
AXLE HOUSING ASSEMBLY (36401000003)
HYDRAULIC PRINCIPLE DIAGRAM
ELECTRICAL SCHEMATIC
ELECTRICAL SYSTEM PRINCIPLE DIAGRAM
1
2
2
3
4
4
5
5
6
6
7
8
9
10
11
Позиция на иллюстрации
Заводской номер детали
Название детали
1
30871000769
Bucket welding
2
51204172014
Bolt M24x70
3
30871101565
Right cutting lip
4
51421170115
Washer 24
5
51401170107
Spring lock washer
6
51307001719
Nut M24
7
30871101722
Pin
8
30871101724
Tooth sleeve
9
30871100193
Tooth holder
10
30871101723
Circlip
11
30871101554
Left cutting lip
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
