Tilt cylinder assembly
Каталог запасных частей к технике: Lonking (LongGong) LG20, LG25, LG30, LG35. Tilt cylinder assembly
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
CDM-1165 (2009)
CDM-1185 (2009)
CDM-1220 (2009)
CDM-307 (2013)
CDM-308 (2013)
CDM-312 (2013)
CDM-512D (2014)
CDM-514D (2014)
CDM-520A (K) (2010)
CDM-6065 (2013)
CDM-6150 (2012)
CDM-6240 (2015)
CDM-6365H (2012)
CDM-6485H (2013)
CDM-816
CDM-816 (2010)
CDM-816 (2011)
CDM-816-D (2018)
CDM-833
CDM-833
CDM-833.00 (2010)
CDM-833H
CDM-835E VI.00 (2015)
CDM-835E VII.00I (2015)
CDM-835E VIII.00I (2015)
CDM-843
CDM-853.00 (2010)
CDM-853N.00I (2017)
CDM-855E
CDM-855E (2009)
CDM-855EG
CDM-855EK
CDM-855EM
CDM-856
CDM-856D (2010)
CDM-860.00 (2010)
CMD-835E (2009)
CMD-835E.01I (2010)
LG-160DT (2012)
LG-833NIV.00I (2017)
LG20, LG25, LG30, LG35 (2013)
LG50-60-70 (2014)
LG50CVII.00I (2015)
LG833NG (2015)
ZL50NC (2015)
Схема
>
Не выбрано
The following trucks are provided with corresponding engine
Engine assembly
Air cleaner assembly LG-20D(T),20DTXB,25D(T),25DTXB,30D(T),30DTXB,35D(T),35DTXB,30GLT,35GLT
Air cleaner assembly (prefilter) LG-20D(T),20DTXB,25D(T),25DTXB,30D(T),30DTXB,35D(T),35DTXB
Air cleaner assembly (prefilter) LG-20DTJA,20DTJB,25DTJA,25DTJB,30DTJA,30DTJB,35DTJA,35DTJB
Air cleaner assembly (prefilter) LG-20DTJA,20DTJB,25DTJA,25DTJB,30DTJA,30DTJB,35DTJA,35DTJB
Air cleaner assembly LG-20DTIA,20DTIB,25DTIA,25DTIB,30DTDA,30DTDB,30DTIH,35DTDA,35DTDB,35DTIH
Air cleaner assembly (prefilter) LG-20DTIA,20DTIB,25DTIA,25DTIB,30DTDA,30DTDB,30DTIH,35DTDA,35DTDB,35DTIH
Radiator assembly LG-20D,25D,30D,35D
Radiator assembly LG-30DTDA, 30DTDB,35DTDA, 35DTDB
Radiator assembly LG-20DT,20DTXB,25DT,25DTXB,20DTJA,20DTJB,25DTJA,25DTJB,20DTIA,20DTIB,25DTIA,25DTIB LG-30DT,30DTXB,35DT,35DTXB,30DTJA,30DTJB,35DTJA,35DTJB,30DTIH,35DTIH,30GLT,35GLT
Fuel unit assembly LG-20D(T),20DTXB,25D(T),25DTXB,30D(T),30DTXB,35D(T),35DTXB,30DTDA,35DTDA,30DTDB,35DTDB
Fuel unit assembly LG-20DTJA,20DTJB,25DTJA,25DTJB,20DTIA,25DTIA,20DTIB,25DTIB LG-30DTJA,30DTJB,35DTJA,35DTJB,30DTIH,35DTIH
Fuel unit assembly LG-30GLT,35GLT
Muffler assembly LG-20D(T),20DTXB,25D(T),25DTXB,20DTJA,20DTJB,25DTJA,25DTJB, LG-30D(T),30DTXB,30DTJA,30DTJB,30DTIH,35D(T),35DTXB,35DTJA,35DTJB,35DTIH
Muffler assembly LG-20DTIA,20DTIB,25DTIA,25DTIB,30DTDA,30DTDB,35DTDA,35DTDB,30GLT,35GLT
Muffler assembly (High exhaust) LG-20D(T),20DTXB,25D(T),25DTXB,20DTJA,20DTJB,25DTJA,25DTJB, LG-30D(T),30DTXB,30DTJA,30DTJB,30DTIH,35D(T),35DTXB,35DTJA,35DTJB,35DTIH
Muffler assembly (High exhaust) LG-20DTIA,20DTIB,25DTIA,25DTIB,30DTDA,30DTDB,35DTDA,35DTDB
Muffler assembly (High exhaust) LG-30GLT,35GLT
Drive system LG-20D,25D,30D,35D
Gearbox (I) LG-20D,25D,30D,35D
Gearbox (II) LG-20D,25D,30D,35D
Gearbox (III) LG-20D,25D,30D,35D
Differential assembly LG-20D,25D,30D,35D
Main shaft element LG-20D,25D,30D,35D
Clutch LG-20D,25D,30D,35D
Clutch LG-20DT,25DT,20DTJA,25DTJA,20DTIA,25DTIA,30DT,30DTDA,30DTJA,35DT,35DTDA,35DTJA
Drive system LG-20DTXB,25DTXB,30DTXB,35DTXB,20DTJB,25DTJB,20DTIB,25DTIB LG-30DTDB,35DTDB,30DTJB,35DTJB,30DTIH,35DTIH,30GLT,35GLT
Gearbox (I) LG-20DT,25DT,20DTXB,20DTJA,20DTIA,25DTXB,25DTJA,25DTIA,20DTJB,25DTJB LG-20DTIB,25DTIB,30DT,30DTDA,30DTJA,35DT,35DTDA,35DTJA,30DTXB,35DTXB LG-30DTDB,35DTDB,30DTJB,35DTJB,30DTIH,35DTIH,30GLT,35GLT
Gearbox (II) LG-20DT,25DT,20DTXB,20DTJA,20DTIA,25DTXB,25DTJA,25DTIA,20DTJB,25DTJB LG-20DTIB,25DTIB,30DT,30DTDA,30DTJA,35DT,35DTDA,35DTJA,30DTXB,35DTXB LG-30DTDB,35DTDB,30DTJB,35DTJB,30DTIH,35DTIH,30GLT,35GLT
Hydraulic Clutch LG-20DT,25DT,20DTXB,20DTJA,20DTIA,25DTXB,25DTJA,25DTIA,20DTJB,25DTJB LG-20DTIB,25DTIB,30DT,30DTDA,30DTJA,35DT,35DTDA,35DTJA,30DTXB,35DTXB LG-30DTDB,35DTDB,30DTJB,35DTJB,30DTIH,35DTIH,30GLT,35GLT
Oil pump LG-20DT,25DT,20DTXB,20DTJA,20DTIA,25DTXB,25DTJA,25DTIA,20DTJB,25DTJB LG-20DTIB,25DTIB,30DT,30DTDA,30DTJA,35DT,35DTDA,35DTJA,30DTXB,35DTXB LG-30DTDB,35DTDB,30DTJB,35DTJB,30DTIH,35DTIH,30GLT,35GLT
Cover & Control valve assembly LG-20DT,25DT,20DTXB,20DTJA,20DTIA,25DTXB,25DTJA,25DTIA,20DTJB,25DTJB LG-20DTIB,25DTIB,30DT,30DTDA,30DTJA,35DT,35DTDA,35DTJA,30DTXB,35DTXB LG-30DTDB,35DTDB,30DTJB,35DTJB,30DTIH,35DTIH,30GLT,35GLT
Inching valve LG-20DT,25DT,20DTXB,20DTJA,20DTIA,25DTXB,25DTJA,25DTIA,20DTJB,25DTJB LG-20DTIB,25DTIB,30DT,30DTDA,30DTJA,35DT,35DTDA,35DTJA,30DTXB,35DTXB LG-30DTDB,35DTDB,30DTJB,35DTJB,30DTIH,35DTIH,30GLT,35GLT
Differential LG-20DT,25DT,20DTXB,20DTJA,20DTIA,25DTXB,25DTJA,25DTIA,20DTJB,25DTJB LG-20DTIB,25DTIB,30DT,30DTDA,30DTJA,35DT,35DTDA,35DTJA,30DTXB,35DTXB LG-30DTDB,35DTDB,30DTJB,35DTJB,30DTIH,35DTIH,30GLT,35GLT
Drive axle assembly 2-2,5Т универсальный
Drive axle assembly 3-3,5Т универсальный
Drive axle
Hydraulic speed control LG-20DT,25DT,20DTJA,25DTJA,20DTIA,25DTIA,30DT,30DTDA,30DTJA,35DT,35DTDA,35DTJA
Steering control mechanism assembly
Steering axle assembly
Steering wheel
Throttle control system LG-20D(T),20DTXB,25D(T),25DTXB,30D(T),30DTXB,35D(T),35DTXB
Throttle control system LG-20DTIA,20DTIB,25DTIA,25DTIB,20DTJA,20DTJB,25DTJA,25DTJB,30DTDA LG-30DTDB,30DTIH,30DTJA,30DTJB,35DTDA,35DTDB,35DTIH,35DTJA,35DTJB
Flameout control system
Brake system LG-20D,25D,30D,35D
Service brake system LG-20DT,20DTXB,20DTJA,20DTJB,20DTIA,20DTIB,25DT,25DTXB,25DTIA,25DTIB,30DTIH,35DTIH, LG-30DT,30DTXB,30DTDA,30DTDB,30DTJA,30DTJB,35DT,35DTXB,35DTDA,35DTDB,35DTJA,35DTJB
Parking brake system
Chassis
Outer panel system
Mast (normal mast) 2-2.5Т Универсальный
Mast (normal mast) 3-3.5T Универсальный
Mast (full free 2-stage mast)
Mast (full free 2-stage mast)
Mast (full free 3-stage mast) 2-2.5T
Mast (full free 3-stage mast) 3-3.5T
Fork & fork carrier
Fork & fork carrier
Lift cylinder (normal mast) 2-2.5T
Lift cylinder (normal mast) 3-3.5T
Front lift cylinder (full free 2-stage mast)
Front lift cylinder (full free 3-stage mast)
Rear lift cylinder (full free 2-stage mast)
Rear lift cylinder (full free 3-stage mast) 3-3.5T
Tilt cylinder assembly
Mast sideshift pipe (normal mast) 2-2.5T
Mast sideshift pipe (normal mast) 3-3.5T
Mast sideshift pipe (full free 2-stage mast) 2-2.5T
Mast sideshift pipe (full free 2-stage mast) 3-3.5T
Mast sideshift pipe (full free 3-stage mast) 2-2.5T
Mast sideshift pipe (full free 3-stage mast) 3-3.5T
Mast lift pipe (full free 2-stage mast) 2-2.5T
Mast lift pipe (full free 2-stage mast) 3-3.5T
Mast lift pipe (full free 3-stage mast) 2-2.5T
Mast lift pipe (full free 3-stage mast) 3-3.5T
Multi-way valve control
Hydraulic system
Hydraulic oil tank cover plate
Overhead guard
Electric system LG-20D(T),20DTXB,25D(T),25DTXB,30D(T),30DTXB,35D(T),35DTXB
Electric system LG-20DTIB,25DTIB,20DTJA,20DTJB,25DTJA,25DTJB,30DTDA,30DTDB LG-30DTIH,30DTJA,30DTJB,35DTDA,35DTDB,35DTIH,35DTJA,35DTJB
Electric system LG-20DTIA,25DTIA
Electric system LG-30GLT,35GLT
Liquefied gas device LG-30GLT,35GLT
Label
Counter weight
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
17
18
19
20

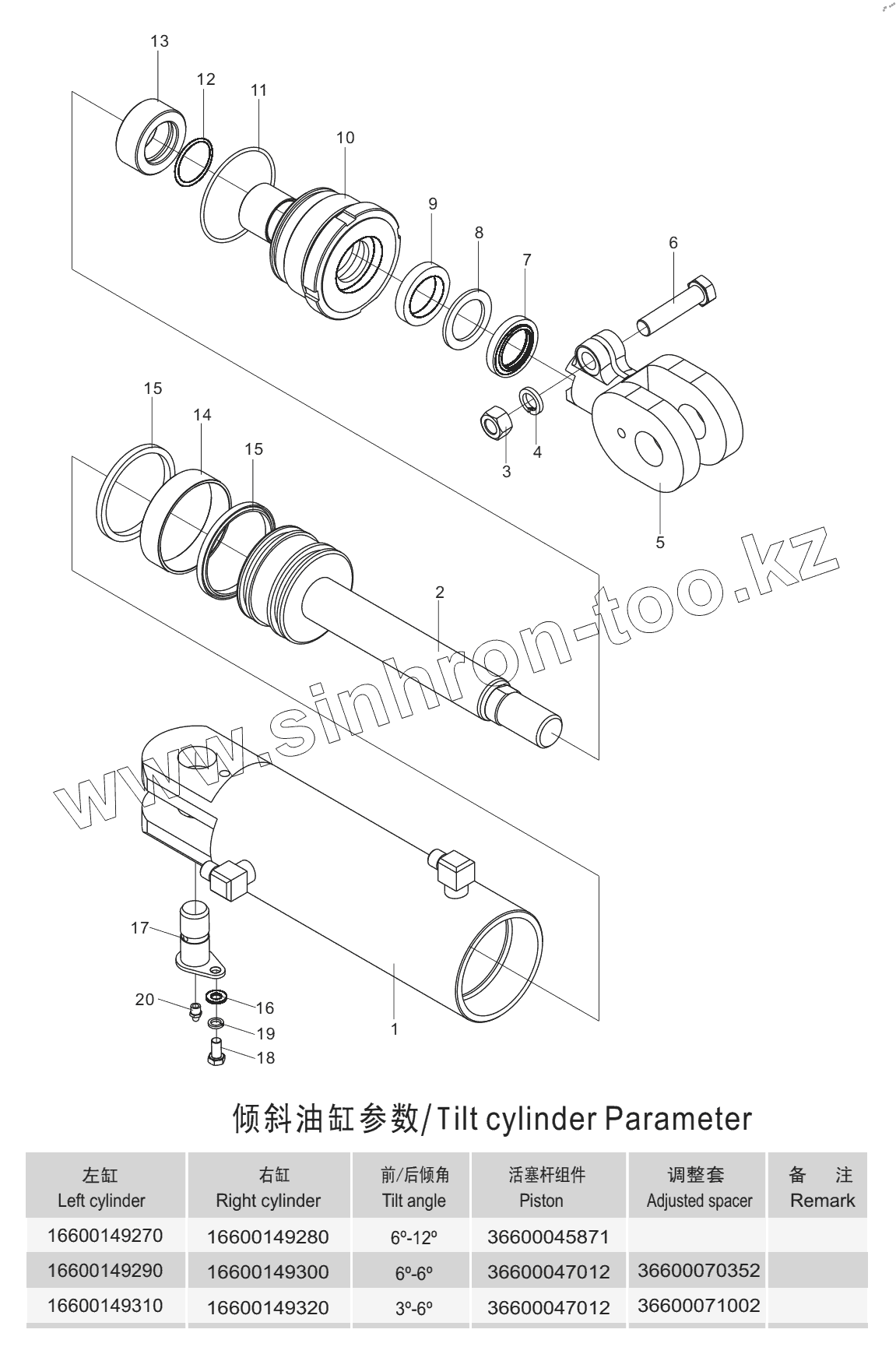

Позиция на иллюстрации
Заводской номер детали
Название детали
A
16600149270
Left tilt cylinder
B
16600149280
Right tilt cylinder
1
36600016421
Left cylinder
1
36600016431
Right cylinder
2
36600045871
Piston rod
3
51309000619
Nut
4
51401120107
Spring lock washer
5
36600241010
Rod head
6
51210120314
Bolt M14x1.5x55
7
56193001801
Dust ring 35x47x7
8
56192014801
Snap ring 35x45x3
9
56187019901
Seal ring 35x45x9
10
36600031100
Guide sleeve
11
56908001204
O-ring 74.4x3.1
12
56908003104
O-ring 34.4x3.1
13
36600070750
Spacer
14
56199021001
Pivot ring 75x80x20
15
56191001501
Piston Seal ring
16
51421100115
Plain washer
17
30080025001
Pin shaft weldment
18
51204101014
Bolt
19
51401100107
Spring lock washer
20
56201000301
Oil cup
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
