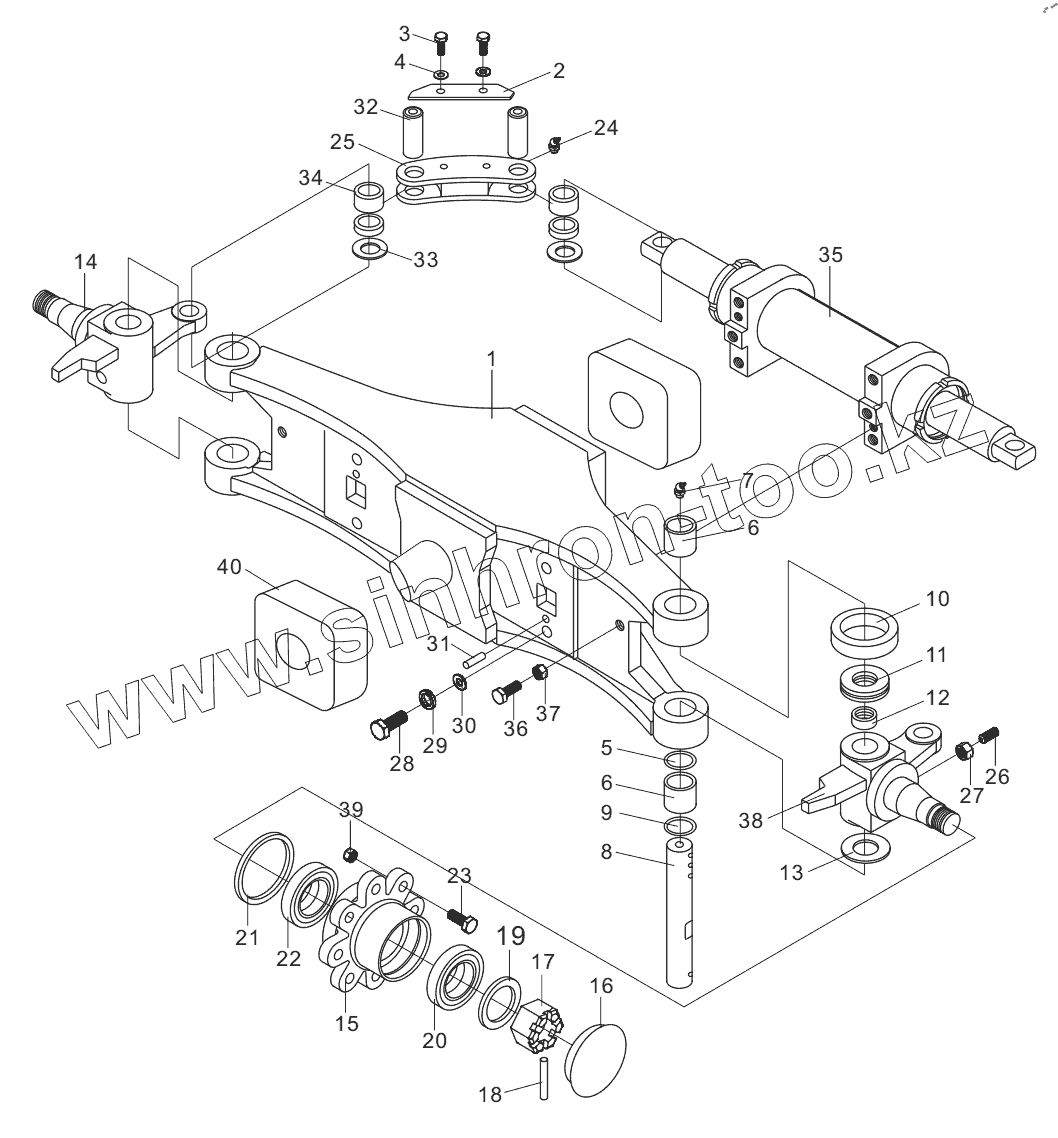

Каталог запасных частей к технике: Lonking (LongGong) LG20, LG25, LG30, LG35. Steering axle assembly
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
CDM-1165 (2009)
CDM-1185 (2009)
CDM-1220 (2009)
CDM-307 (2013)
CDM-308 (2013)
CDM-312 (2013)
CDM-512D (2014)
CDM-514D (2014)
CDM-520A (K) (2010)
CDM-6065 (2013)
CDM-6150 (2012)
CDM-6240 (2015)
CDM-6365H (2012)
CDM-6485H (2013)
CDM-816
CDM-816 (2010)
CDM-816 (2011)
CDM-816-D (2018)
CDM-833
CDM-833
CDM-833.00 (2010)
CDM-833H
CDM-835E VI.00 (2015)
CDM-835E VII.00I (2015)
CDM-835E VIII.00I (2015)
CDM-843
CDM-853.00 (2010)
CDM-853N.00I (2017)
CDM-855E
CDM-855E (2009)
CDM-855EG
CDM-855EK
CDM-855EM
CDM-856
CDM-856D (2010)
CDM-860.00 (2010)
CMD-835E (2009)
CMD-835E.01I (2010)
LG-160DT (2012)
LG-833NIV.00I (2017)
LG20, LG25, LG30, LG35 (2013)
LG50-60-70 (2014)
LG50CVII.00I (2015)
LG833NG (2015)
ZL50NC (2015)
Схема
>
Не выбрано
The following trucks are provided with corresponding engine
Engine assembly
Air cleaner assembly LG-20D(T),20DTXB,25D(T),25DTXB,30D(T),30DTXB,35D(T),35DTXB,30GLT,35GLT
Air cleaner assembly (prefilter) LG-20D(T),20DTXB,25D(T),25DTXB,30D(T),30DTXB,35D(T),35DTXB
Air cleaner assembly (prefilter) LG-20DTJA,20DTJB,25DTJA,25DTJB,30DTJA,30DTJB,35DTJA,35DTJB
Air cleaner assembly (prefilter) LG-20DTJA,20DTJB,25DTJA,25DTJB,30DTJA,30DTJB,35DTJA,35DTJB
Air cleaner assembly LG-20DTIA,20DTIB,25DTIA,25DTIB,30DTDA,30DTDB,30DTIH,35DTDA,35DTDB,35DTIH
Air cleaner assembly (prefilter) LG-20DTIA,20DTIB,25DTIA,25DTIB,30DTDA,30DTDB,30DTIH,35DTDA,35DTDB,35DTIH
Radiator assembly LG-20D,25D,30D,35D
Radiator assembly LG-30DTDA, 30DTDB,35DTDA, 35DTDB
Radiator assembly LG-20DT,20DTXB,25DT,25DTXB,20DTJA,20DTJB,25DTJA,25DTJB,20DTIA,20DTIB,25DTIA,25DTIB LG-30DT,30DTXB,35DT,35DTXB,30DTJA,30DTJB,35DTJA,35DTJB,30DTIH,35DTIH,30GLT,35GLT
Fuel unit assembly LG-20D(T),20DTXB,25D(T),25DTXB,30D(T),30DTXB,35D(T),35DTXB,30DTDA,35DTDA,30DTDB,35DTDB
Fuel unit assembly LG-20DTJA,20DTJB,25DTJA,25DTJB,20DTIA,25DTIA,20DTIB,25DTIB LG-30DTJA,30DTJB,35DTJA,35DTJB,30DTIH,35DTIH
Fuel unit assembly LG-30GLT,35GLT
Muffler assembly LG-20D(T),20DTXB,25D(T),25DTXB,20DTJA,20DTJB,25DTJA,25DTJB, LG-30D(T),30DTXB,30DTJA,30DTJB,30DTIH,35D(T),35DTXB,35DTJA,35DTJB,35DTIH
Muffler assembly LG-20DTIA,20DTIB,25DTIA,25DTIB,30DTDA,30DTDB,35DTDA,35DTDB,30GLT,35GLT
Muffler assembly (High exhaust) LG-20D(T),20DTXB,25D(T),25DTXB,20DTJA,20DTJB,25DTJA,25DTJB, LG-30D(T),30DTXB,30DTJA,30DTJB,30DTIH,35D(T),35DTXB,35DTJA,35DTJB,35DTIH
Muffler assembly (High exhaust) LG-20DTIA,20DTIB,25DTIA,25DTIB,30DTDA,30DTDB,35DTDA,35DTDB
Muffler assembly (High exhaust) LG-30GLT,35GLT
Drive system LG-20D,25D,30D,35D
Gearbox (I) LG-20D,25D,30D,35D
Gearbox (II) LG-20D,25D,30D,35D
Gearbox (III) LG-20D,25D,30D,35D
Differential assembly LG-20D,25D,30D,35D
Main shaft element LG-20D,25D,30D,35D
Clutch LG-20D,25D,30D,35D
Clutch LG-20DT,25DT,20DTJA,25DTJA,20DTIA,25DTIA,30DT,30DTDA,30DTJA,35DT,35DTDA,35DTJA
Drive system LG-20DTXB,25DTXB,30DTXB,35DTXB,20DTJB,25DTJB,20DTIB,25DTIB LG-30DTDB,35DTDB,30DTJB,35DTJB,30DTIH,35DTIH,30GLT,35GLT
Gearbox (I) LG-20DT,25DT,20DTXB,20DTJA,20DTIA,25DTXB,25DTJA,25DTIA,20DTJB,25DTJB LG-20DTIB,25DTIB,30DT,30DTDA,30DTJA,35DT,35DTDA,35DTJA,30DTXB,35DTXB LG-30DTDB,35DTDB,30DTJB,35DTJB,30DTIH,35DTIH,30GLT,35GLT
Gearbox (II) LG-20DT,25DT,20DTXB,20DTJA,20DTIA,25DTXB,25DTJA,25DTIA,20DTJB,25DTJB LG-20DTIB,25DTIB,30DT,30DTDA,30DTJA,35DT,35DTDA,35DTJA,30DTXB,35DTXB LG-30DTDB,35DTDB,30DTJB,35DTJB,30DTIH,35DTIH,30GLT,35GLT
Hydraulic Clutch LG-20DT,25DT,20DTXB,20DTJA,20DTIA,25DTXB,25DTJA,25DTIA,20DTJB,25DTJB LG-20DTIB,25DTIB,30DT,30DTDA,30DTJA,35DT,35DTDA,35DTJA,30DTXB,35DTXB LG-30DTDB,35DTDB,30DTJB,35DTJB,30DTIH,35DTIH,30GLT,35GLT
Oil pump LG-20DT,25DT,20DTXB,20DTJA,20DTIA,25DTXB,25DTJA,25DTIA,20DTJB,25DTJB LG-20DTIB,25DTIB,30DT,30DTDA,30DTJA,35DT,35DTDA,35DTJA,30DTXB,35DTXB LG-30DTDB,35DTDB,30DTJB,35DTJB,30DTIH,35DTIH,30GLT,35GLT
Cover & Control valve assembly LG-20DT,25DT,20DTXB,20DTJA,20DTIA,25DTXB,25DTJA,25DTIA,20DTJB,25DTJB LG-20DTIB,25DTIB,30DT,30DTDA,30DTJA,35DT,35DTDA,35DTJA,30DTXB,35DTXB LG-30DTDB,35DTDB,30DTJB,35DTJB,30DTIH,35DTIH,30GLT,35GLT
Inching valve LG-20DT,25DT,20DTXB,20DTJA,20DTIA,25DTXB,25DTJA,25DTIA,20DTJB,25DTJB LG-20DTIB,25DTIB,30DT,30DTDA,30DTJA,35DT,35DTDA,35DTJA,30DTXB,35DTXB LG-30DTDB,35DTDB,30DTJB,35DTJB,30DTIH,35DTIH,30GLT,35GLT
Differential LG-20DT,25DT,20DTXB,20DTJA,20DTIA,25DTXB,25DTJA,25DTIA,20DTJB,25DTJB LG-20DTIB,25DTIB,30DT,30DTDA,30DTJA,35DT,35DTDA,35DTJA,30DTXB,35DTXB LG-30DTDB,35DTDB,30DTJB,35DTJB,30DTIH,35DTIH,30GLT,35GLT
Drive axle assembly 2-2,5Т универсальный
Drive axle assembly 3-3,5Т универсальный
Drive axle
Hydraulic speed control LG-20DT,25DT,20DTJA,25DTJA,20DTIA,25DTIA,30DT,30DTDA,30DTJA,35DT,35DTDA,35DTJA
Steering control mechanism assembly
Steering axle assembly
Steering wheel
Throttle control system LG-20D(T),20DTXB,25D(T),25DTXB,30D(T),30DTXB,35D(T),35DTXB
Throttle control system LG-20DTIA,20DTIB,25DTIA,25DTIB,20DTJA,20DTJB,25DTJA,25DTJB,30DTDA LG-30DTDB,30DTIH,30DTJA,30DTJB,35DTDA,35DTDB,35DTIH,35DTJA,35DTJB
Flameout control system
Brake system LG-20D,25D,30D,35D
Service brake system LG-20DT,20DTXB,20DTJA,20DTJB,20DTIA,20DTIB,25DT,25DTXB,25DTIA,25DTIB,30DTIH,35DTIH, LG-30DT,30DTXB,30DTDA,30DTDB,30DTJA,30DTJB,35DT,35DTXB,35DTDA,35DTDB,35DTJA,35DTJB
Parking brake system
Chassis
Outer panel system
Mast (normal mast) 2-2.5Т Универсальный
Mast (normal mast) 3-3.5T Универсальный
Mast (full free 2-stage mast)
Mast (full free 2-stage mast)
Mast (full free 3-stage mast) 2-2.5T
Mast (full free 3-stage mast) 3-3.5T
Fork & fork carrier
Fork & fork carrier
Lift cylinder (normal mast) 2-2.5T
Lift cylinder (normal mast) 3-3.5T
Front lift cylinder (full free 2-stage mast)
Front lift cylinder (full free 3-stage mast)
Rear lift cylinder (full free 2-stage mast)
Rear lift cylinder (full free 3-stage mast) 3-3.5T
Tilt cylinder assembly
Mast sideshift pipe (normal mast) 2-2.5T
Mast sideshift pipe (normal mast) 3-3.5T
Mast sideshift pipe (full free 2-stage mast) 2-2.5T
Mast sideshift pipe (full free 2-stage mast) 3-3.5T
Mast sideshift pipe (full free 3-stage mast) 2-2.5T
Mast sideshift pipe (full free 3-stage mast) 3-3.5T
Mast lift pipe (full free 2-stage mast) 2-2.5T
Mast lift pipe (full free 2-stage mast) 3-3.5T
Mast lift pipe (full free 3-stage mast) 2-2.5T
Mast lift pipe (full free 3-stage mast) 3-3.5T
Multi-way valve control
Hydraulic system
Hydraulic oil tank cover plate
Overhead guard
Electric system LG-20D(T),20DTXB,25D(T),25DTXB,30D(T),30DTXB,35D(T),35DTXB
Electric system LG-20DTIB,25DTIB,20DTJA,20DTJB,25DTJA,25DTJB,30DTDA,30DTDB LG-30DTIH,30DTJA,30DTJB,35DTDA,35DTDB,35DTIH,35DTJA,35DTJB
Electric system LG-20DTIA,25DTIA
Electric system LG-30GLT,35GLT
Liquefied gas device LG-30GLT,35GLT
Label
Counter weight
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
Позиция на иллюстрации
Заводской номер детали
Название детали
1
30003035004
Steering axle weldment
2
30003117702
Plate
3
51206090914
Bolt M8x16
4
51401090107
Washer
5
56145033204
O-ring 31.5x5.3
6
52155000201
Bearing 32x40x32
7
60980000487
Nipple Z1/8 90°
8
30003135602
Steering knuckle pin
9
30003124702
Dust ring
10
30003108701
Hood
11
52241005401
Bearing 51208
12
30003122306
Bushing
13
30003118301
Adjustable gasket
14
30003033903
Right knuckle weldment
15
30003129204
Wheel hub
16
30003130702
Wheel shaft cover
17
30003132103
Lock nut
18
51512101805
Cotter pin 5x50
19
30003106407
Washer
20
52321000701
Bearing 30207
21
52321001101
Bearing 30211
22
56161006501
Seal ring FB85x110x12
23
30003129501
Hub bolt
24
56201000101
Oil cup M6
25
30003034201
Steering pull rod weldment
26
51107232207
Screw M12x30
27
51311001025
Nut M12
28
51204121518
Bolt M14x45
29
51401120107
Spring lock washer
30
51422120115
Washer 14
31
51522121703
Thread pin10x30
32
30003133001
Pin
33
30003123303
Snap ring
34
52806000101
Bearing GEEW16ES
35
16600145010
Oil cylinder
36
51207111414
Bolt M12x1.5x40
37
51316000418
Nut M12x1.5
38
30003033904
Left steering knuckle weldment
39
30003129401
Hub nut
40
30003109004
Rubber gasket
