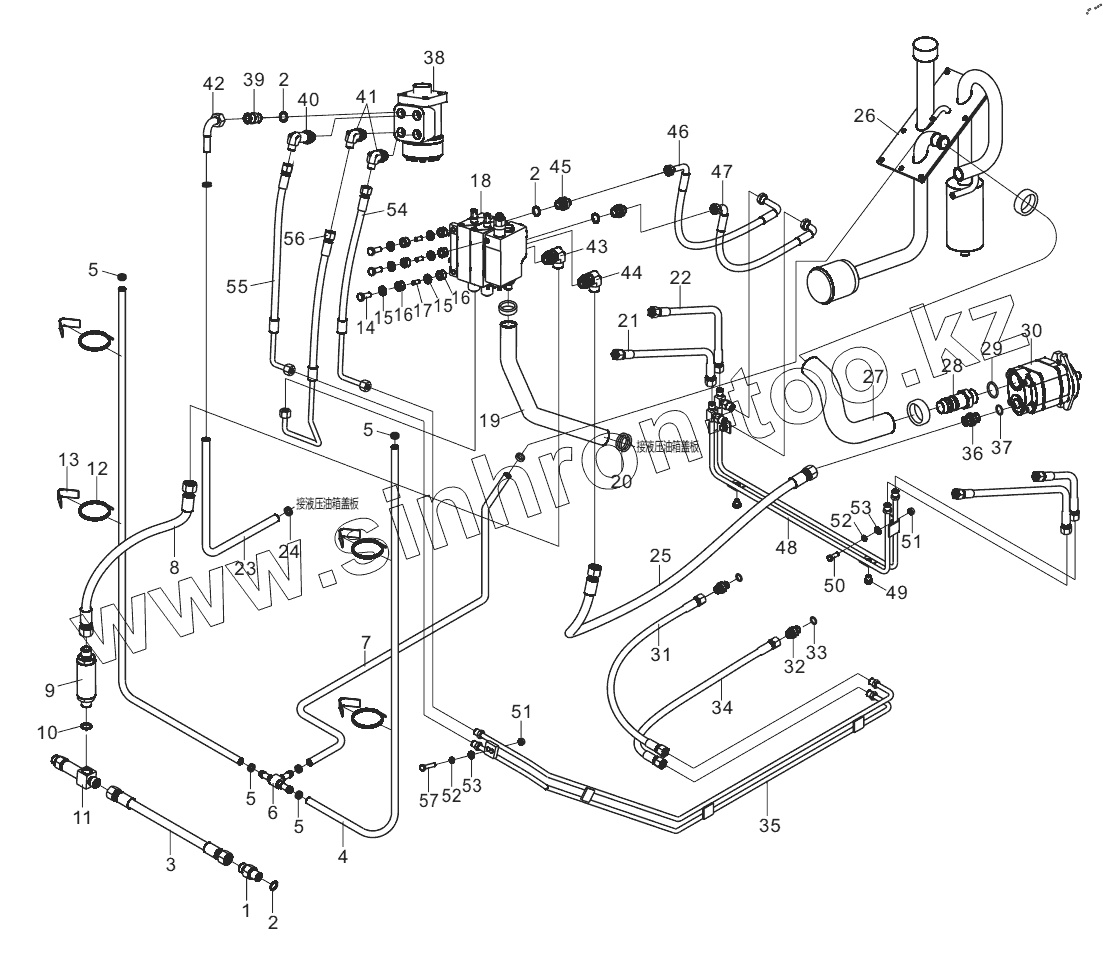

Каталог запасных частей к технике: Lonking (LongGong) LG20, LG25, LG30, LG35. Hydraulic system

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
2
2
3
4
5
5
5
5
6
7
8
9
10
11
12
13
14
15
15
16
16
17
18
19
20
21
22
23
24
25
25
26
27
27
27
27
27
28
29
30
30
31
31
32
33
34
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
51
52
52
53
53
54
55
56
57
Позиция на иллюстрации Заводской номер детали Название детали
1 60304000633 Cutoff valve assembly
2 56145004805 O-ring 17x2.65
3 17272002270 Hose assembly
4 30012112201 Hose assembly
5 56171000101 Clip
6 30012112002 T-connector
7 30012112200 Plastic tube
8 17272007540 Hose assembly
9 60304100021 Speed limit valve
10 56145005401 O-ring
11 60911010771 T-connector
12 68080000004 Binding tape
13 60911010924 Cloth clip
14 51207105314 Bolt M10x1.25x35
15 51420100121 Plain washer
16 30012113903 Rubber pad
17 30012112300 Double pipe
18 60911010956 T-connector
19 30001106089 Molding pipe
20 56171000601 Clip
21 17272005777 Hose assembly
22 17272006998 Hose assembly
23 30012187935 Hose assembly
24 56171000301 Clip
25 17272002271 Hose assembly
25 17272009603 Hose assembly
26 30012073011 Cover plate assembly
27 30012106007 Molding pipe
27 30012106014 Molding pipe
27 30012106010 Molding pipe
27 30012106015 Molding pipe
27 30012106012 Molding pipe
28 17601000554 Transition connector
29 56145008301 O-ring 30x3.55
30 60301000094 Gear pump
30 60301000209 Gear pump
31 17272008048 Hose assembly
31 17272006860 Hose assembly
32 17601000007 Transition connector
33 56145004001 O-ring
34 17272008589 Hose assembly
34 17272008049 Hose assembly
35 30012013037 Steel tube assembly
36 17601000141 Transition connector
37 56145005101 O-ring 18x2.65
38 60305000023 Red steering gear
39 30012108311 Transition connector
40 30012008307 Transition connector
41 30012008308 Transition connector
42 30012008309 Transition connector
43 30012008306 Transition connector
44 17601000300 Transition connector
45 30012108313 Transition connector
46 17272008046 Hose assembly
47 17272008047 Hose assembly
48 30012013036 Steel tube weldment
49 30012117300 Rubber gasket
50 51204091014 Bolt
51 51307000919 Nut
52 51401090107 Washer
53 51421090115 Washer
54 30012114500 Hose assembly
55 30012114501 Hose assembly
56 30012114502 Hose assembly
57 51204091714 Bolt M8x55
