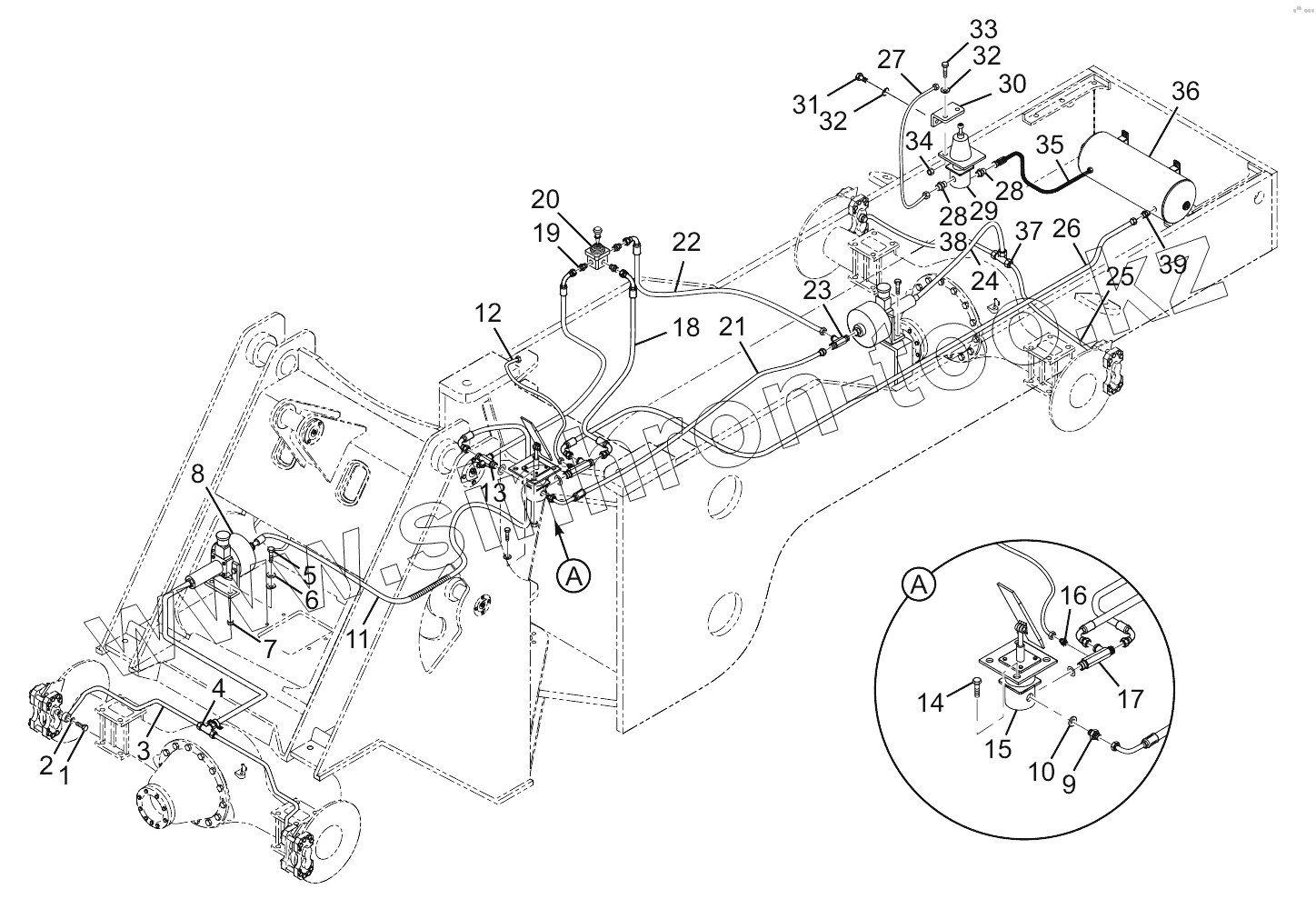

Каталог запасных частей к технике: Lonking (LongGong) CMD-835E. Service Brake System
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
29
30
31
32
32
33
34
35
36
37
38
39
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | LG853.08-004 | Connecting bolt | |
| 2 | LG853.08-005 | Washer | |
| 3 | LG853.08.03 | Front booster pump oil outlet pipe | |
| 4 | LG853.08-012 | Front axle oil channel T-connector | |
| 5 | GB/T5783 | Bolt | |
| 6 | GB/T93 | Washer | |
| 7 | GB/T6170 | Nut | |
| 8 | LG30F.08.10 | Air booster pump | |
| 9 | LG853.08-013 | Brake air pipe connector | |
| 10 | LG853.08-009 | Washer | |
| 11 | 90C-C/8I | Hose from brake valve to front booster pump | |
| 12 | LG853.08.12 | Air pressure gauge connecting pipe | |
| 13 | CDM835E.08-001 | X-connector | |
| 14 | GB/T5783 | Bolt | |
| 15 | LG853.08.09 | Air brake master valve | |
| 16 | LG853.01-002 | Pressure connector | |
| 17 | LG50EX.08-001 | Brake X-connector | |
| 18 | 90C-90C/8I-L=1400/270grad | Manual brake valve air inlet hose | |
| 19 | LG50EX.09-001 | Manual brake valve air outlet connector | |
| 20 | LG50EX.09.01 | Manual brake valve | |
| 21 | 90C-C/8I-L=1400 | Hose from brake valve to rear booster pump | |
| 22 | 90C-90C/8I-L=3200 | Hose assembly | |
| 23 | CDM835E.08.01 | Shuttle valve | |
| 24 | LG853.08.11 | Brake hose | |
| 25 | LG853.08.13 | Rear booster pump oil outlet pipe | |
| 26 | C-90C/8I-L=3200 | Hose from air tank to brake master valve | |
| 27 | 20711-18-05xJS8xL1400 | Wired hose from compressor to drier | |
| 28 | LG853.08-001 | Connector | |
| 29 | LG853.08.08 | Relief valve | |
| 30 | LG855.08-001 | Relief valve bracket | |
| 31 | GB/T5783 | Bolt | |
| 32 | GB/T93 | Washer | |
| 33 | GB/T5783 | Bolt | |
| 34 | GB/T6170 | Nut | |
| 35 | LG853.08.02 | Wire wrapping hose | |
| 36 | CDM835E.08I.01 | Air tank | |
| 37 | LG853.08-014 | Rear axle oil pipe T-connector | |
| 38 | JB1002 | Copper pad | |
| 39 | LG853.08-013 | Brake air pipe connector |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
