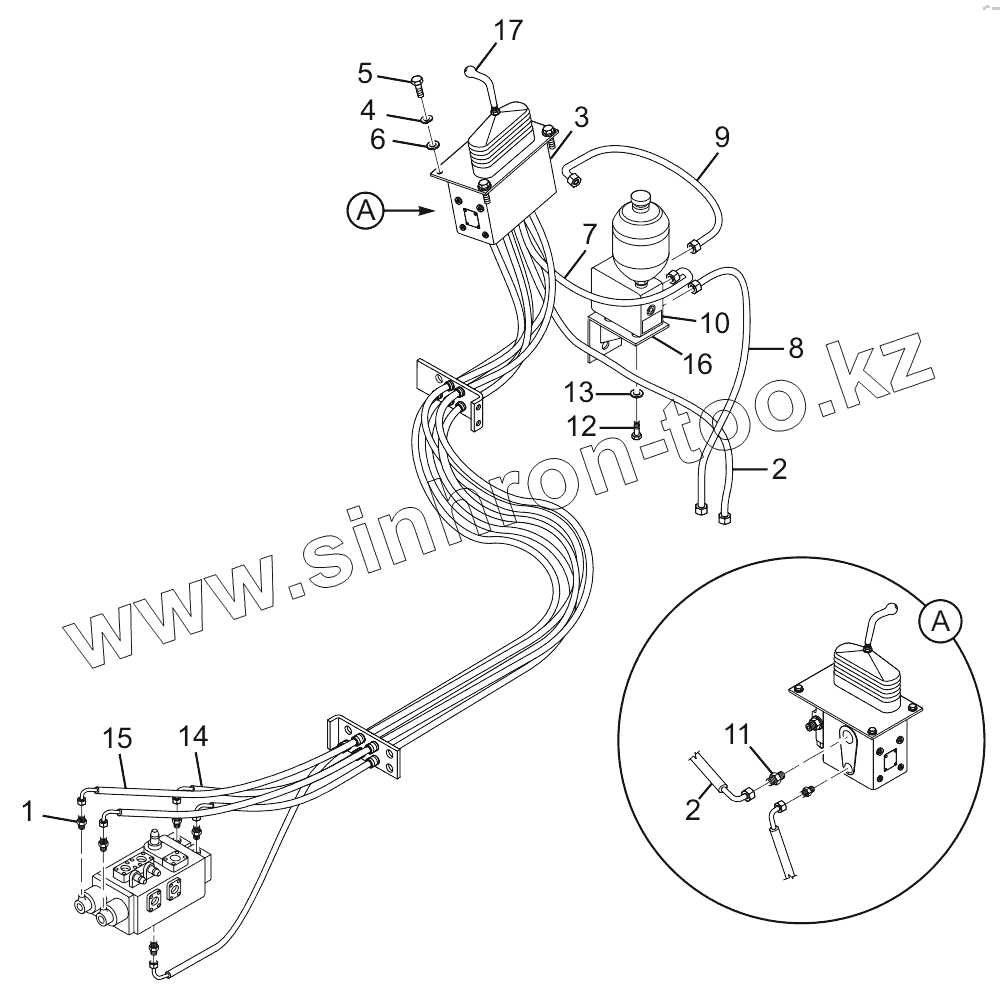

Каталог запасных частей к технике: Lonking (LongGong) CMD-835E. Pilot Control System
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | L1DH-16-14 | Adapter | |
| 2 | 20411-20GB/20491-20GBx1W08x1500 | Pilot valve oil returning hose | |
| 3 | DXS-00 | Single handle pilot control valve | |
| 4 | GB/T97.1 | Washer | |
| 5 | GB/T5783 | Bolt | |
| 6 | GB/T93 | Washer | |
| 7 | 20511-16/20591-16x1W05x1152 | Pilot valve oil inlet hose | |
| 8 | 20511-16/20591-16x1W05x1400 | Oil supply valve oil returning hose | |
| 9 | 20511-16/20591-16x1W05x800 | Oil supply valve oil inlet hose | |
| 10 | LG50EX.07.11.04 | Oil supply valve | |
| 11 | L1CH-20-18GB | Adapter | |
| 12 | GB/T5783 | Bolt | |
| 13 | GB/T93 | Washer | |
| 14 | 20511-16/20591-16x1W05x2450 | Distribution valve small chamber hose | |
| 15 | 20511-16/20591-16x1W05x2650 | Distribution valve big chamber hose | |
| 16 | LG50EX.07.11.03 | Oil supply valve mounting bracket | |
| 17 | DXF-01 | Handle |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
