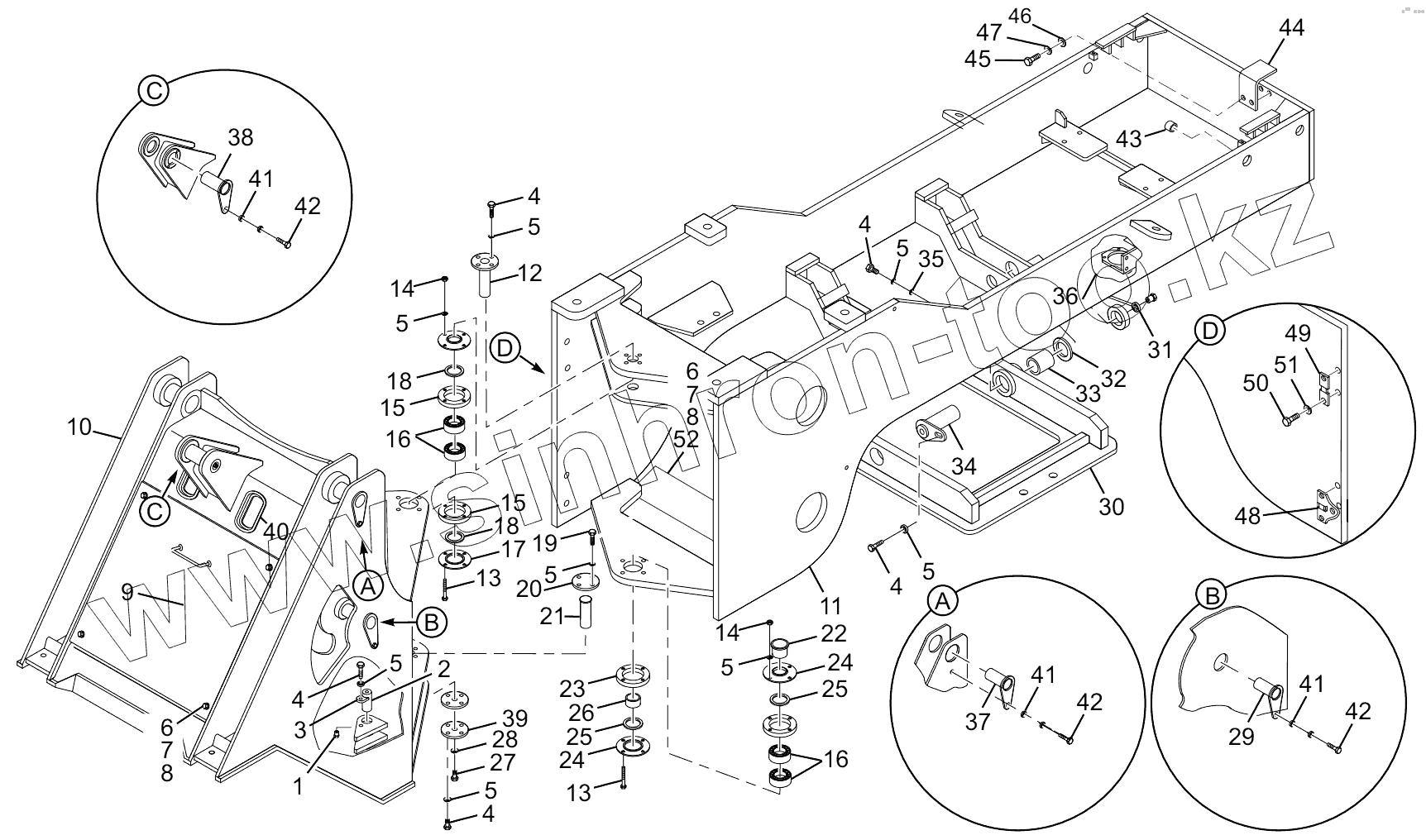

Каталог запасных частей к технике: Lonking (LongGong) CMD-835E. Frame System
1
2
3
4
4
4
4
4
5
5
5
5
5
5
5
5
6
6
7
7
8
8
9
10
11
12
13
13
14
14
15
15
16
16
17
18
18
19
20
21
22
23
24
24
25
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
41
41
42
42
42
43
44
45
47
48
49
50
51
52
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | JB/T7940.1 | Straight pressure oil cup | |
| 2 | LG853.10-015 | Steering pin | |
| 3 | LG853.10-014 | Card board | |
| 4 | GB/T5783 | Bolt | |
| 5 | GB/T93 | Washer | |
| 6 | GB/T5783 | Bolt | |
| 7 | GB/T97.1 | Washer | |
| 8 | GB/T93 | Washer | |
| 9 | LG30F.10I.09 | Cover board assembly | |
| 10 | CDM835E.10.01 | Front frame | |
| 11 | CDM835E.10I.02 | Rear frame | |
| 12 | LG30F.10I.06 | Upper articulated pin | |
| 13 | GB/T5783 | Bolt | |
| 14 | GB/T6170 | Nut | |
| 15 | LG30F.10I-010 | Adjusting gasket | |
| 16 | GB/T297 | Bearing | |
| 17 | LG30F.10I-011 | Bearing cover | |
| 18 | HG4-692-67 | Oil seal | |
| 19 | GB/T5783 | Bolt | |
| 20 | LG30F.10I-003 | Cover | |
| 21 | LG30F.10I-007 | Lower articulated pin | |
| 22 | LG30F.10I-004 | Bush | |
| 23 | LG30F.10I-008 | Adjusting gasket | |
| 24 | LG30F.10I-005 | Bearing cover | |
| 25 | HG4-692-67 | Oil seal | |
| 26 | LG30F.10I-009 | Bush | |
| 27 | GB/T5783 | Bolt | |
| 28 | GB/T93 | Washer | |
| 29 | LG833.10.05 | Lift cylinder pin | |
| 30 | LG30F.10I.03 | Oscillating suspension | |
| 31 | LG30F.10I.07 | Oil filling pipe | |
| 32 | LG853.10-010 | Copper pad | |
| 33 | LG853.10-012 | Sleeve | |
| 34 | LG853.10.10 | Oscillating suspension pin | |
| 35 | GB/T96.1 | Washer | |
| 36 | LG30F.10I.08 | Oil filter bracket | |
| 37 | LG833.10V.04 | Lift arm upper pin | |
| 38 | LG833.10V.03 | Tilt cylinder rear pin | |
| 39 | LG30F.10I-006 | End cover | |
| 40 | LG853.10-021 | Hose guard sheath | |
| 41 | GB/T97.1 | Washer | |
| 42 | GB/T5783 | Bolt | |
| 43 | CDM858A.10I-001 | Rear frame rubber sheath | |
| 44 | CDM855E.10II-001 | Buzzle stents | |
| 45 | GB/T5783 | Bolt | |
| 46 | GB/T97.1 | Washer | |
| 47 | GB/T93 | Washer | |
| 48 | CDM835E.10.10 | Oil tank under stents | |
| 49 | LG855.10.08 | Oil tank securing seat | |
| 50 | GB/T5783 | Bolt | |
| 51 | GB/T93 | Washer | |
| 52 | LG30F.10I-012 | Transimission guard board |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
