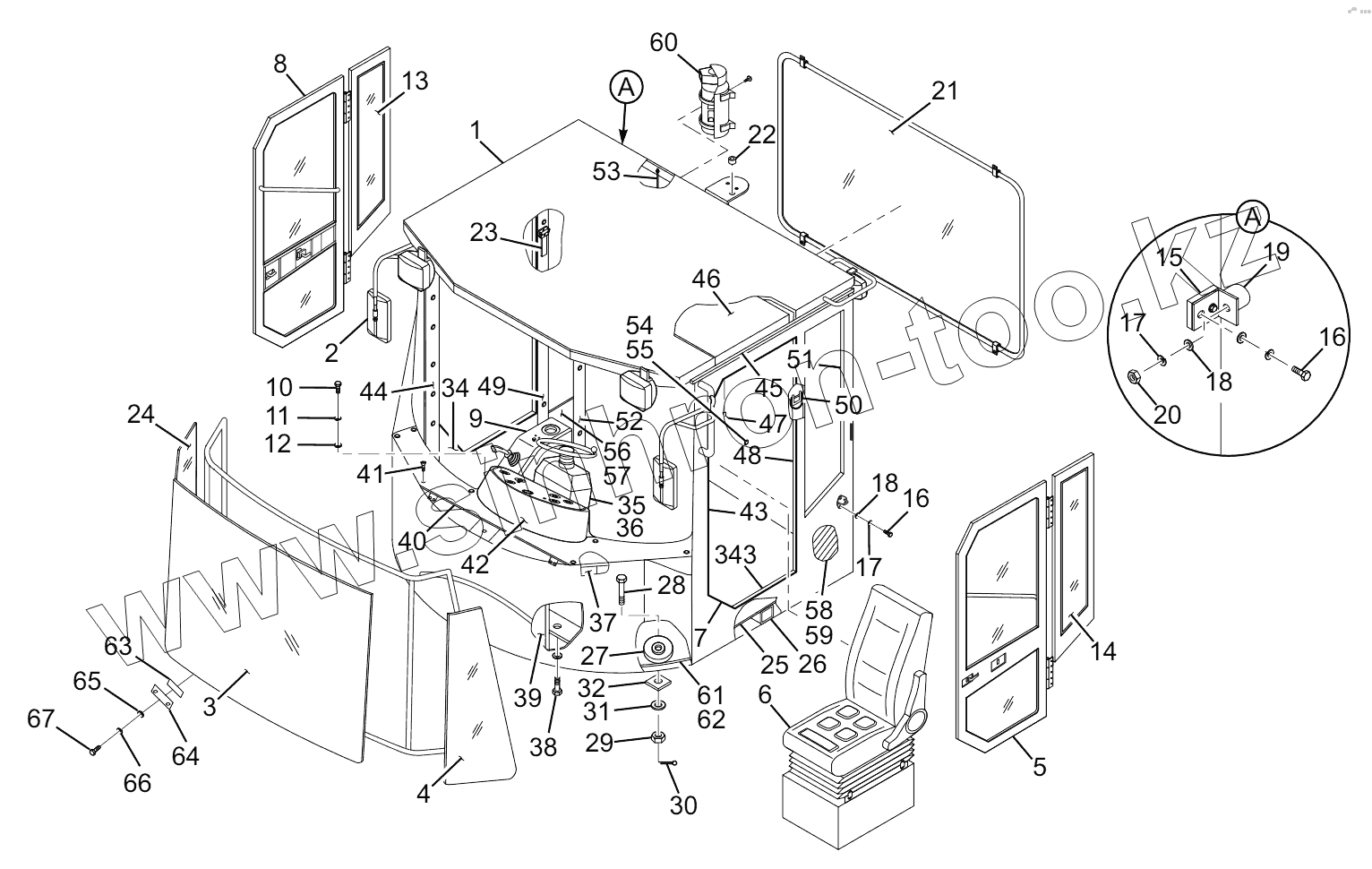

Каталог запасных частей к технике: Lonking (LongGong) CMD-835E. Cab System
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
17
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
34
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | CDM835E.12.01 | Cab | |
| 2 | LG853.12.08 | Rearview mirror | |
| 3 | CDM835E.12-001 | Front windscreen | |
| 4 | CDM835E.12-002 | Left side window glass | |
| 5 | CDM835E.12.03 | Left door assembly | |
| 6 | CDM853.12.10 | Seat | |
| 7 | LG853.12.11 | Glass frame rubber strip | |
| 8 | CDM835E.12.04 | Right door assembly | |
| 9 | CDM835E.12.05 | Pilot control box | |
| 10 | GB/T5783 | Bolt | |
| 11 | GB/T93 | Washer | |
| 12 | GB/T97.1 | Washer | |
| 13 | CDM835E.12-003 | Right-rear glass | |
| 14 | CDM835E.12-004 | Left-rear glass | |
| 15 | CDM835E.12-025 | Absorber | |
| 16 | GB/T5783 | Bolt | |
| 17 | GB/T93 | Washer | |
| 18 | GB/T97.1 | Washer | |
| 19 | LG856.12.04 | Shock pad | |
| 20 | GB/T6170 | Nut | |
| 21 | CDM835E.12-005 | Rear window glass | |
| 22 | CDM858.12.04-021 | Wire sheath II | |
| 23 | CDM858A.12I.06 | Hammer | |
| 24 | CDM835E.12-006 | Right-front glass | |
| 25 | CDM835E.12-007 | Seal gasket | |
| 26 | CDM835E.12.02 | Pedestal | |
| 27 | LG853.12.05 | Rubber pad | |
| 28 | GB/T31.3 | Bolt | |
| 29 | GB/T9457 | Nut | |
| 30 | GB/T91 | Cotter pin | |
| 31 | GB/T96.1 | Washer | |
| 32 | CDM835E.12-027 | Tie plate | |
| 33 | CDM835E.12-008 | Left doorframe decoration board | |
| 34 | CDM835E.12-009 | Right doorframe decoration board | |
| 35 | LG856.12-012 | Steering staff hood I | |
| 36 | LG856.12-013 | Steering staff hood II | |
| 37 | LG853.12.06 | Steering gear securing bracket assembly | |
| 38 | GB/T5783 | Bolt | |
| 39 | CDM835E.12-010 | Front sound absorption material | |
| 40 | CDM835E.12.06 | Meter platform lower frame | |
| 41 | GB/T845 | Taper screw | |
| 42 | CDM835E.12.07 | Meter platform frame | |
| 43 | CDM835E.12-011 | Left-front support decoration board | |
| 44 | CDM835E.12-012 | Right-front support decoration board | |
| 45 | CDM835E.12.08 | Ceiling decoration board | |
| 46 | CDM835E.12-013 | Ceiling sound absorption material | |
| 47 | LG856.12-026 | Plastic rivet | |
| 48 | CDM835E.12-014 | Left-middle support decoration board | |
| 49 | CDM835E.12-015 | Right-middle support decoration board | |
| 50 | LG856.12-019 | Hat-and-coat hook | |
| 51 | CDM835E.12-016 | Left-rear support decoration board | |
| 52 | CDM835E.12-017. | Right-rear support decoration board | |
| 53 | LG30F.12-017 | Harness sheath | |
| 54 | CDM835E.12-018 | Rear decoration board | |
| 55 | CDM835E.12-019 | Rear sound absorption material | |
| 56 | CDM835E.12-020 | Left-rear decoration board | |
| 57 | CDM835E.12-021 | Right-rear decoration board | |
| 58 | CDM835E.12-022 | Left-rear sound absorption material | |
| 59 | CDM835E.12-023 | Right-rear sound absorption material | |
| 60 | CDM858A.12I.05 | Fire extinguisher | |
| 61 | CDM835E.12-024 | Ground pad | |
| 62 | CDM835E.12-026 | Paper pad | |
| 63 | LG853.12-002 | Glass press board | |
| 64 | GB/T818 | Screw | |
| 65 | GB/T93 | Washer | |
| 66 | GB/T97.1 | Washer | |
| 67 | LG856.12-028 | Glass fixed rubber pad |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
