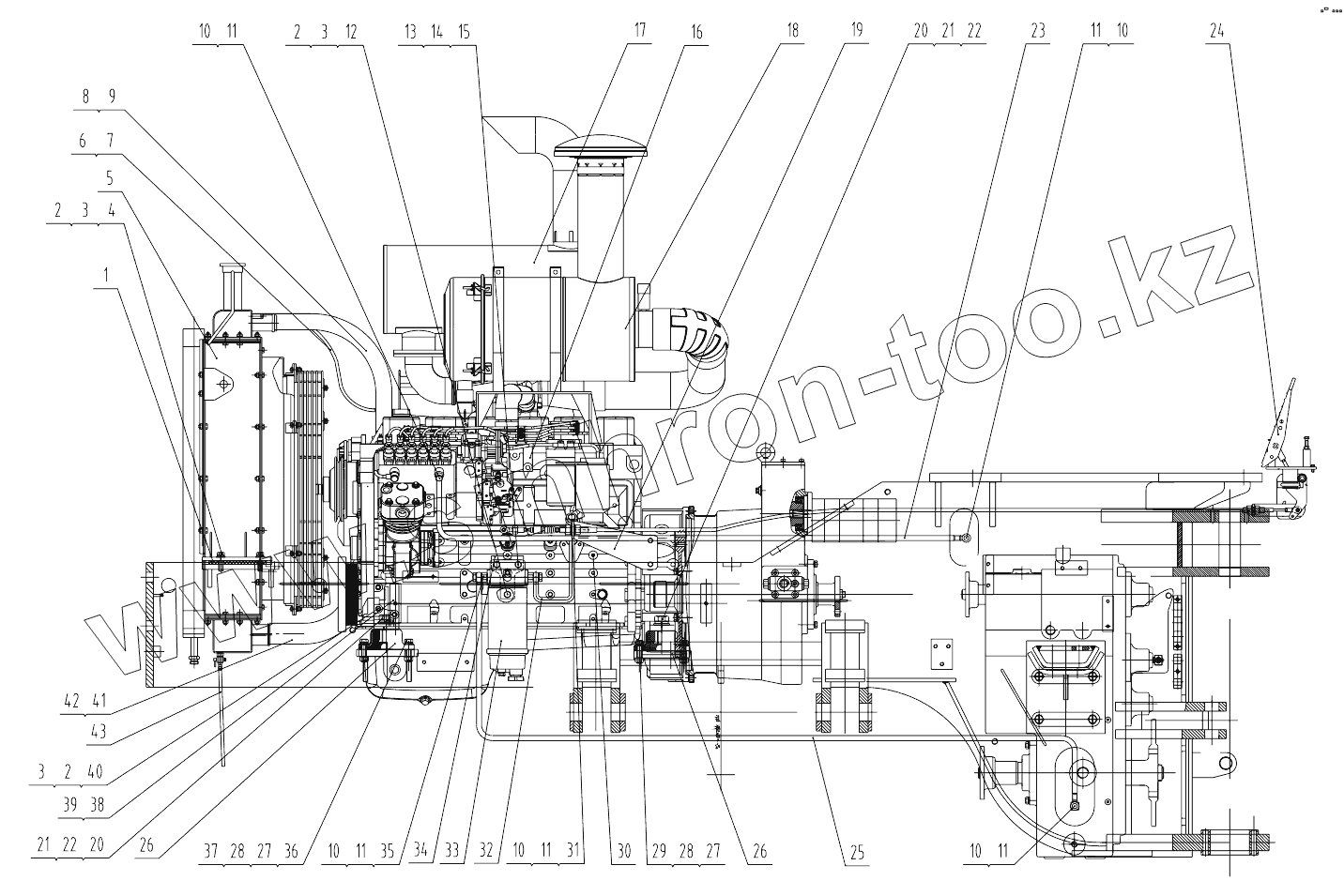

Каталог запасных частей к технике: Lonking (LongGong) CMD-835E. 6BT5.9-C130 Diesel Engine System
1
2
2
2
3
3
3
4
5
6
7
8
9
10
10
10
10
10
11
11
11
11
11
12
13
14
15
16
17
18
19
20
20
21
21
22
22
23
24
25
26
26
27
27
28
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | LG30F.01I-001 | Radiator rubber pad | |
| 2 | GB/T97.1-2002 | Washer | |
| 3 | GB/T93-1987 | Washer | |
| 4 | GB/T5783-2000 | Bolt | |
| 5 | CDM835E.01II.04 | Radiator assembly | |
| 6 | JB/T8870-1999 | Hose clamp | |
| 7 | HG/T2184-1991 | Vent pipe | |
| 8 | JB/T8870-1999 | Hose clamp | |
| 9 | CDM835E.01I-001 | Engine outlet water hose | |
| 10 | LG853.08-011 | Washer | |
| 11 | CDM855E.01I-008 | Hollow bolt | |
| 12 | GB/T5783-2000 | Bolt | |
| 13 | GB/T93-1987 | Washer | |
| 14 | GB/T97.1-2000 | Washer | |
| 15 | GB/T5783-2000 | Bolt | |
| 16 | CDM833I.01.03 | Diesel engine | |
| 17 | CDM833I.01.02 | Muffle | |
| 18 | CDM833I.01.01 | Air foreordain cleaner | |
| 19 | CDM833I.01.07 | Throttle stents weld | |
| 20 | GB/T5783-2000 | Bolt | |
| 21 | GB/T97.1-2002 | Washer | |
| 22 | GB/T93-1987 | Washer | |
| 23 | CDM855E.01I.05 | Fuel oil return pipe | |
| 24 | CDM835E.01I.06 | Throttle control assembly | |
| 25 | CDM855E.01I.07 | Hose from Filter to Fuel tank | |
| 26 | CDM835E.01I.08 | Front shock absorber of engine | |
| 27 | GB/T97.1-2002 | Washer | |
| 28 | GB/T93-1987 | Washer | |
| 29 | GB/T5783-2000 | Bolt | |
| 30 | CDM833I.01-001 | Oil pressure sensor connector | |
| 31 | CDM833I.01-003 | Fuel inlet connector | |
| 32 | CDM855E.01I.08 | Fuel hose from filter to engine | |
| 33 | CDM856E.01I.08 | Fuel filter assembly | |
| 34 | CDM833I.01-002 | Filter ledger plate | |
| 35 | CDM855E.01I-004 | Filter connector | |
| 36 | GB/T5783-2000 | Bolt | |
| 37 | GB/T6170-2000 | Nut | |
| 38 | CDM835E.01I.02 | Engine left stents | |
| 39 | CDM835E.01I.01 | Engine right stents | |
| 40 | GB/T5783-2000 | Bolt | |
| 41 | CDM835E.01I-003 | Engine inlet water hose | |
| 42 | JB/T8870-1999 | Hose clamp | |
| 43 | CDM835E.01I-006 | Waterspout |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
