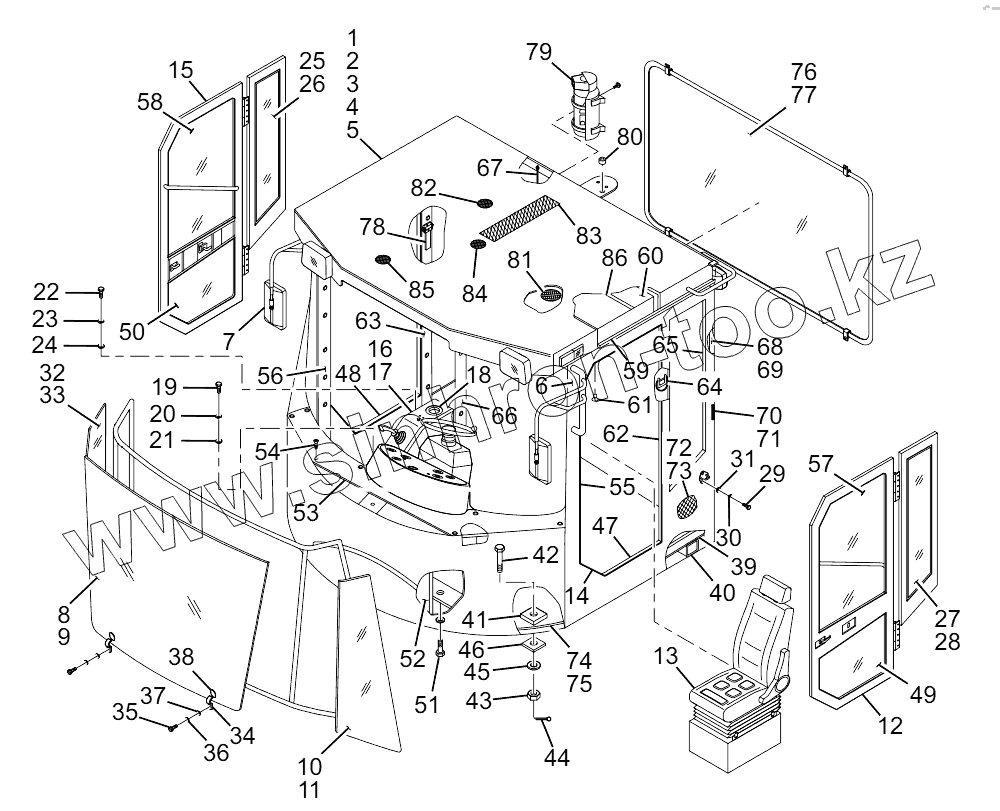

Каталог запасных частей к технике: Lonking (LongGong) CMD-835E.01I. Cab System (CDM835E.12IV)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | LG833B.12.07 | Font lampshade | |
| 2 | GB/T5783-2000 | Bolt | |
| 3 | GB/T93-1987 | Washer | |
| 4 | GB/T97.1-2002 | Washer | |
| 5 | GB/T6170-2000 | Nut | |
| 6 | CDM835E.12IV.01 | Cab | |
| 7 | LG853.12.08 | Rearview mirror | |
| 8 | CDM835E.12-001 | Front windscreen | |
| 9 | CDM835E.12IV-002 | Front window glass bursting disk | |
| 10 | CDM835E.12-002 | Left side window glass | |
| 11 | CDM835E.12IV-003 | Left side window glass bursting disk | |
| 12 | CDM835E.12.03 | Left door assembly | |
| 13 | CDM835E.12IV.10 | Aeroseat | |
| 14 | LG853.12.11 | Glass frame rubber strip | |
| 15 | CDM835E.12.04 | Right door assembly | |
| 16 | CDM835E.12-030 | Control handle | |
| 17 | CDM835E.12.05 | Pilot control box | |
| 18 | CDM835E.12-032 | Pilot box cover | |
| 19 | GB/T5783-2000 | Bolt | |
| 20 | GB/T93-1987 | Washer | |
| 21 | GB/T97.1-2002 | Washer | |
| 22 | GB/T5783-2000 | Bolt | |
| 23 | GB/T93-1987 | Washer | |
| 24 | GB/T97.1-2002 | Washer | |
| 25 | CDM835E.12-003 | Right-rear glass | |
| 26 | CDM835E.12IV-004 | Right rear window glass bursting disk | |
| 27 | CDM835E.12-004 | Left-rear glass | |
| 28 | CDM835E.12IV-005 | Left rear window glass bursting disk | |
| 29 | GB/T5783-2000 | Bolt | |
| 30 | GB/T93-1987 | Washer | |
| 31 | GB/T97.1-2002 | Washer | |
| 32 | CDM835E.12-006 | Right-front glass | |
| 33 | CDM835E.12IV-007 | Right side window glass bursting disk | |
| 34 | LG853.12-002 | Glass press board | |
| 35 | GB/T818-2000 | Screw | |
| 36 | GB/T93-1987 | Washer | |
| 37 | GB/T97.1-2002 | Washer | |
| 38 | LG856.12-028 | Glass fixed rubber pad | |
| 39 | CDM835E.12-007 | Seal gasket | |
| 40 | CDM835E.12IV.12 | Seat | |
| 41 | LG853.12.05 | Rubber pad | |
| 42 | GB/T31.3-2000 | Bolt | |
| 43 | GB/T9457-2000 | Nut | |
| 44 | GB/T91-2000 | Cotter pin | |
| 45 | GB/T96.1-2002 | Washer | |
| 46 | CDM835E.12-027 | Tie plate | |
| 47 | CDM835E.12-008 | Left doorframe decoration board | |
| 48 | CDM835E.12-009 | Right doorframe decoration board | |
| 49 | CDM835E.12IV-010 | Left door down glass bursting disk | |
| 50 | CDM835E.12IV-011 | Right door down glass bursting disk | |
| 51 | GB/T5783-2000 | Bolt | |
| 52 | CDM835E.12-010 | Front sound absorption material | |
| 53 | CDM835E.12II.10 | Front decoration board | |
| 54 | GB/T845-2000 | Taper screw | |
| 55 | CDM835E.12-011 | Left-front support decoration board | |
| 56 | CDM835E.12-012 | Right-front support decoration board | |
| 57 | CDM835E.12IV-008 | Left door up glass bursting disk | |
| 58 | CDM835E.12IV-009 | Right door up glass bursting disk | |
| 59 | CDM835E.12.08 | Ceiling decoration board | |
| 60 | CDM835E.12-013 | Ceiling sound absorption material | |
| 61 | LG856.12-026 | Plastic rivet | |
| 62 | CDM835E.12-014 | Left-middle support decoration board | |
| 63 | CDM835E.12-015 | Right-middle support decoration board | |
| 64 | LG856.12-019 | Hat-and-coat hook | |
| 65 | CDM835E.12-016 | Left-rear support decoration board | |
| 66 | CDM835E.12-017 | Right rear support decoration board | |
| 67 | LG30F.12-017 | Harness sheath | |
| 68 | CDM835E.12-018 | Rear decoration board | |
| 69 | CDM835E.12-019 | Rear sound absorption material | |
| 70 | CDM835E.12-020 | Left-rear decoration board | |
| 71 | CDM835E.12-021 | Right-rear decoration board | |
| 72 | CDM835e.12-022 | Left rear side sound absorption material | |
| 73 | CDM835E.12-023 | Right-rear sound absorption material | |
| 74 | CDM835E.12II-024 | Ground pad | |
| 75 | CDM835E.12II-026 | Paper gasket | |
| 76 | CDM835E.12-005 | Rear window glass | |
| 77 | CDM835E.12IV-006 | Rear window glass bursting disk | |
| 78 | CDM858A.12I.06 | Hammer | |
| 79 | CDM858A.12I.05 | Fire extinguisher | |
| 80 | CDM858.12.04-021 | Wire sheath II | |
| 81 | CDM835E.12II-005 | Left side board sound absorption spronge | |
| 82 | CDM835E.12II-002 | Right side board sound absorption spronge | |
| 83 | CDM835E.12II-004 | Middle sound absorption spronge | |
| 84 | CDM835E.12II-003 | Middle front board sound absorption spronge | |
| 85 | CDM835E.12II-001 | Front board sound absorption spronge | |
| 86 | CDM835E.12IV-001 | Protective groove steel |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
