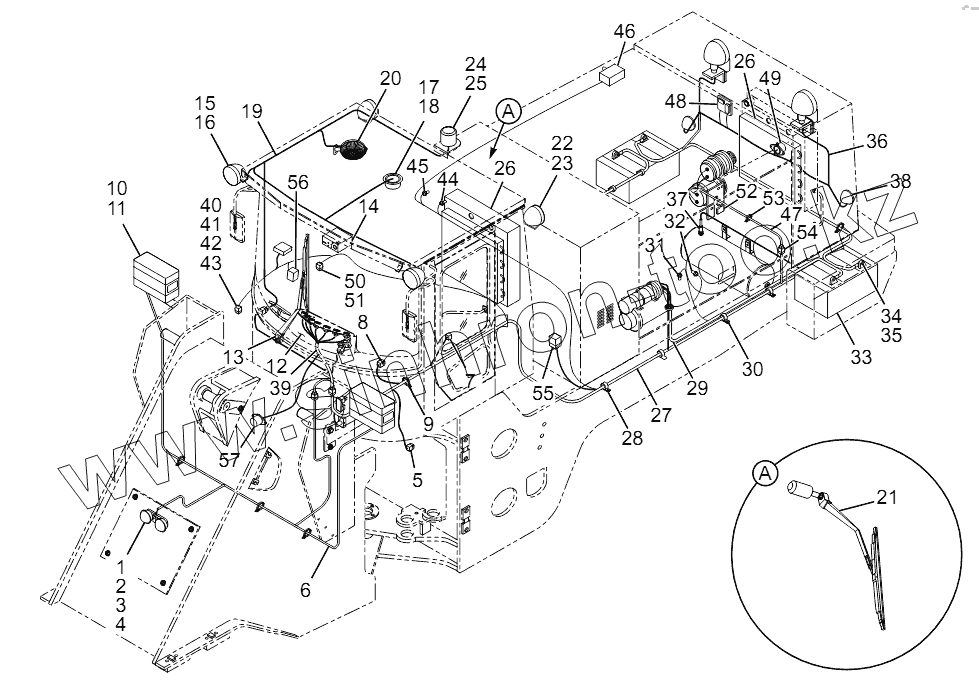

Каталог запасных частей к технике: Lonking (LongGong) CDM-860.00. Electrical System
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | LG853.15.09 | Electrical horn assembly | |
| 2 | GB/T5783-2000 | Bolt | |
| 3 | GB/T93-1987 | Washer | |
| 4 | GB/T97.1-2002 | Washer | |
| 5 | LG855.15.44 | Pressure type message sender | |
| 6 | CDM858.15I.01 | Front frame harness | |
| 7 | CDM856E.15I.33 | Brake air press sensor | |
| 8 | LG853.15.30 | Brake lamp switch | |
| 9 | LG853.15-001 | Nylon strip | |
| 10 | LG853.15.10 | Front combined lamp | |
| 11 | GB/T5783-2000 | Bolt | |
| 12 | CDM860.15I.60 | Instrument panel assembly | |
| 13 | CDM856E.15I.22 | Wiper assembly | |
| 14 | LG856.15.18 | MP3 player | |
| 15 | LG856.15.23 | Front working lamp | |
| 16 | LG856.15.24 | Front steering lamp | |
| 17 | LG856.15.25 | Rectangle ceiling lamp | |
| 18 | GB/T845-2000 | Taper screw | |
| 19 | CDM860.15I.02 | Cab harness | |
| 20 | LG855.15.45 | Fan | |
| 21 | CDM856E.15I.23 | Wiper assembly | |
| 22 | GB/T923-88 | Cap nut | |
| 23 | CDM835E.15.12 | Front lamp | |
| 24 | GB/T923-88 | Cap nut | |
| 25 | CDM858A.15II.48 | Warning lamp | |
| 26 | CDM855F.15.19 | Air-condition assembly | |
| 27 | CDM860.15I.03 | Rear frame harness | |
| 28 | CDM855.15V.51 | Hoop | |
| 29 | CDM860.15I.05 | Battery wire | |
| 30 | CDM855.15V.53 | Hoop | |
| 31 | LG856.15.29 | Engine oil pressure sensor | |
| 32 | LG856.15.26 | Engine water temperature sensor | |
| 33 | LG853.15.26 | Battery | |
| 34 | GB/T5783-2000 | Bolt | |
| 35 | GB/T6170-2000 | Nut | |
| 36 | CDM860.15.04 | Rear hood light harness | |
| 37 | CDM855F.15-001 | stud | |
| 38 | LG50C.15I.28 | Taillights | |
| 39 | CDM860.15I.06 | Instrument platform harness | |
| 40 | GB/T67-2000 | Screw | |
| 41 | GB/T97.1-2002 | Washer | |
| 42 | GB/T93-1987 | Washer | |
| 43 | LG856.15.32 | Fuel level sensor | |
| 44 | LG856.15.30 | Transmission oil temperature sensor | |
| 45 | CDM858.15.31 | Transmission oil pressure alarm switch | |
| 46 | LG855.15.43 | Pressure difference message sender | |
| 47 | LG856.15I.08 | Engine harness | |
| 48 | CDM858A.15II.50 | Main power switch | |
| 49 | CDM855E.15II.20 | Buzzer | |
| 50 | CDM855E.15II.50 | Cold start system | |
| 51 | CDM855E.15II-001 | Cold start fixing plate | |
| 52 | LG863.15.46 | Air conditioning compressor support | |
| 53 | LG853.15.15.05 | Hoop | |
| 54 | LG853.15.15.04 | Heater water valve | |
| 55 | CDM856E.15I.09 | Air conditioning harness | |
| 56 | CDM835E.15I.35 | Replay | |
| 57 | LG853.15.31 | Low pressure alarm buzzer |
