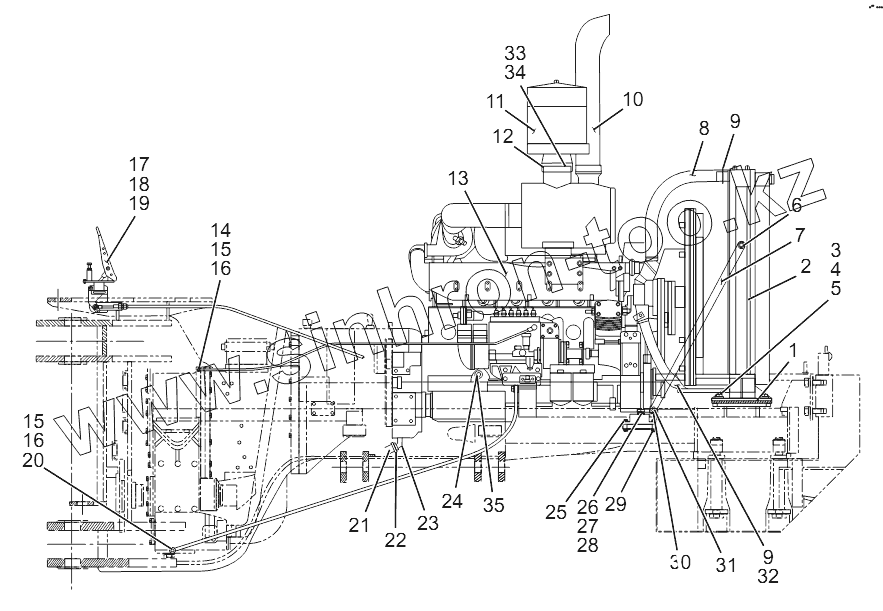

Каталог запасных частей к технике: Lonking (LongGong) CDM-860.00. Diesel Engine system
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | LG860.01-002 | Radiator rubber pad | |
| 2 | CDM860.01.04 | Radiator assembly | |
| 3 | GB/T5783-2000 | Bolt | |
| 4 | GB/T97.1-2002 | Washer | |
| 5 | GB/T93-1987 | Washer | |
| 6 | GB/T5783-2000 | Bolt | |
| 7 | LG860.01-003 | Radiator poll rod | |
| 8 | CDM860.01-001 | Radiator water inlet hose | |
| 9 | 90003989308 | Hoop | |
| 10 | 612600110506 | Muffle air inlet pipe | |
| 11 | LG860.01.02 | Air foreordain cleaner | |
| 12 | LG860.01.05-001 | T- type anchor ear | |
| 13 | LG860.01.03 | Diesel engine assembly | |
| 14 | 612600080789 | Fuel oil return pipe | |
| 15 | 90003962621 | Fuel tank returning oil suction connector | |
| 16 | 612600080200 | Combined washer | |
| 17 | LG853.01.06 | Throttle control assembly | |
| 18 | GB/T5783-2000 | Bolt | |
| 19 | GB/T93-1987 | Washer | |
| 20 | 612600080790 | Fuel inlet pipe | |
| 21 | GB/T15329.1-2003 | Torque converter oil return hose | |
| 22 | JB/T8870-1999 | Hose clamp | |
| 23 | LG853.01.02 | Torque converter oil return connector | |
| 24 | LG853.01-002 | Pressure connector | |
| 25 | GB/T5782-2000 | Bolt | |
| 26 | GB/T5783-2000 | Bolt | |
| 27 | GB/T97.1-2002 | Washer | |
| 28 | GB/T93-1987 | Washer | |
| 29 | GB/T899.1-2000 | Nut | |
| 30 | LG860.01.06 | E-type absorber | |
| 31 | GB/T6170-2000 | Nut | |
| 32 | 612600160003 | Rubber hose | |
| 33 | CDM860.01.01 | Clamp | |
| 34 | CDM860.01-002 | Air foreordain cleaner connecting sleeve | |
| 35 | LG853.01-002 | Pressure connector |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
