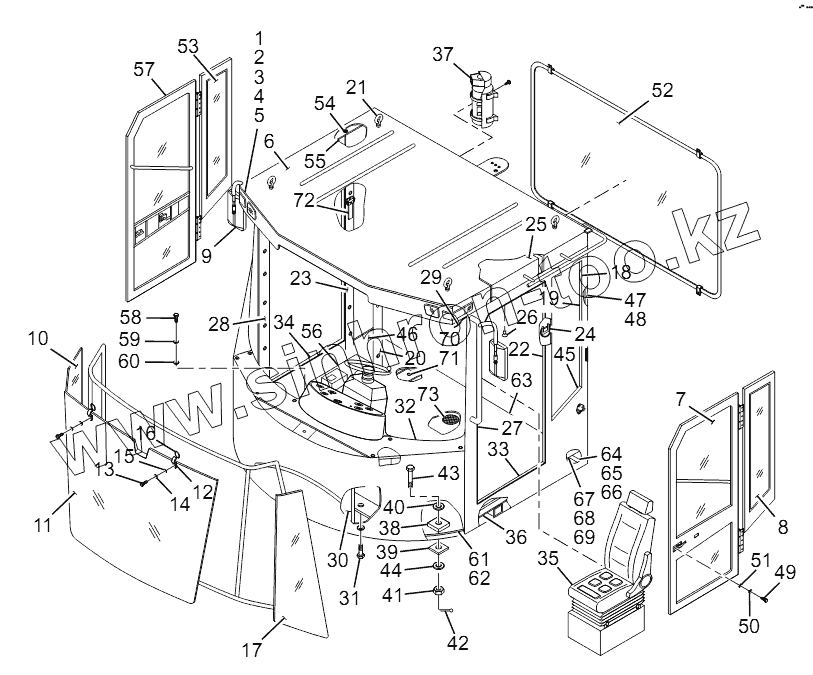

Каталог запасных частей к технике: Lonking (LongGong) CDM-860.00. Cab System
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | CDM856E.12II.05 | Front lamp shade | |
| 2 | GB/T6170-2000 | Nut | |
| 3 | GB/T96.2-2002 | Washer | |
| 4 | GB/T93-1987 | Washer | |
| 5 | GB/T5783-2000 | Bolt | |
| 6 | CDM856E.12II.01 | Cab | |
| 7 | CDM856E.12II.03 | Left door | |
| 8 | CDM856E.12II-001 | Left rear glass | |
| 9 | LG853.12.08 | Rearview mirror | |
| 10 | LG863.12-003 | Right front glass | |
| 11 | LG863.12-001 | Front glass | |
| 12 | LG853.12-002 | Glass press board | |
| 13 | GB/T818-2000 | Screw | |
| 14 | GB/97.1-2002 | Washer | |
| 15 | GB/T93-1987 | Washer | |
| 16 | LG856.12-028 | Glass fixed rubber pad | |
| 17 | LG863.12-002 | Left front glass | |
| 18 | CDM856E.12II-002 | Roof lining | |
| 19 | CDM856E.12II-003 | Left rear support | |
| 20 | CDM856E.12II-004 | Right rear support | |
| 21 | GB/T825-1988 | Eye screw | |
| 22 | CDM856E.12II-006 | Left middle support | |
| 23 | CDM856E.12II-007 | Right rear support | |
| 24 | LG856.12-019 | Hat-and-coat hook | |
| 25 | CDM856E.12II-008 | Ceiling sound absorption sponge | |
| 26 | LG856.12-026 | Plastic rivet | |
| 27 | CDM856E.12II-009 | Left front support | |
| 28 | CDM856E.12II-010 | Right front support | |
| 29 | LG30F.12-017 | Harness sheath | |
| 30 | CDM856E.12II-011 | Front sound absorption sponge | |
| 31 | GB/T5783-2000 | Bolt | |
| 32 | CDM856E.12II-012 | Instrument platform down guard board | |
| 33 | CDM856E.12II-013 | Left door lower board | |
| 34 | CDM856E.12II-014 | Right door lower board | |
| 35 | CDM858A.12I.07 | Driver seat | |
| 36 | CDM856E.12II-015 | Seal gasket | |
| 37 | CDM858A.12I.05 | Fire extinguisher | |
| 38 | LG853.12.05 | Rubber pad | |
| 39 | CDM856E.12II-026 | Tie plate | |
| 40 | LG855.12-009 | Washer | |
| 41 | GB/T9457-1986 | Nut | |
| 42 | GB/T91-2000 | Cotter pin | |
| 43 | GB/T31.3-1988 | Bolt | |
| 44 | GB/T96.1-2002 | Washer | |
| 45 | CDM856E.12II-016 | Left rear boarding | |
| 46 | CDM856E.12II-017 | Right rear boarding | |
| 47 | CDM856E.12II-018 | Rear boarding | |
| 48 | CDM856E.12II-025 | Rear sound absorption sponge | |
| 49 | GB/T5783-2000 | Bolt | |
| 50 | GB/T93-1987 | Washer | |
| 51 | GB/T97.1-2002 | Washer | |
| 52 | CDM856E.12II-019 | Rear glass | |
| 53 | CDM856E.12II-020 | Right rear glass | |
| 54 | CDM856E.12II-023 | Side sound absorption | |
| 55 | LG853.12.11 | Glass frame rubber strip | |
| 56 | CDM855F.12.03 | Pilot control box | |
| 57 | CDM856E.12II.04 | Right door | |
| 58 | GB/T5783-2000 | Bolt | |
| 59 | GB/T93-1987 | Washer | |
| 60 | GB/T97.1-2002 | Washer | |
| 61 | CDM856E.12II-021 | Ground pad | |
| 62 | CDM856E.12II-022 | Cowhide paper | |
| 63 | CDM860.12I.02 | Seat | |
| 64 | CDM856E.12I.12 | Air-conditioned back wind bellows | |
| 65 | CDM856E.12I.09 | Wind hood | |
| 66 | GB/T845-2000 | Taper screw | |
| 67 | CDM856E.12I.11 | Air-conditioned back wind bellows | |
| 68 | CDM856E.12I.10 | Air channel mounting plate | |
| 69 | JB/T8870-1999 | Hose clamp | |
| 70 | CDM856E.12II-024 | Pin | |
| 71 | GB/T93-1987 | Washer | |
| 72 | CDM858A.12I.06 | Hammer | |
| 73 | CDM856E.12II.06 | Lower panel sound absorption sponge |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
