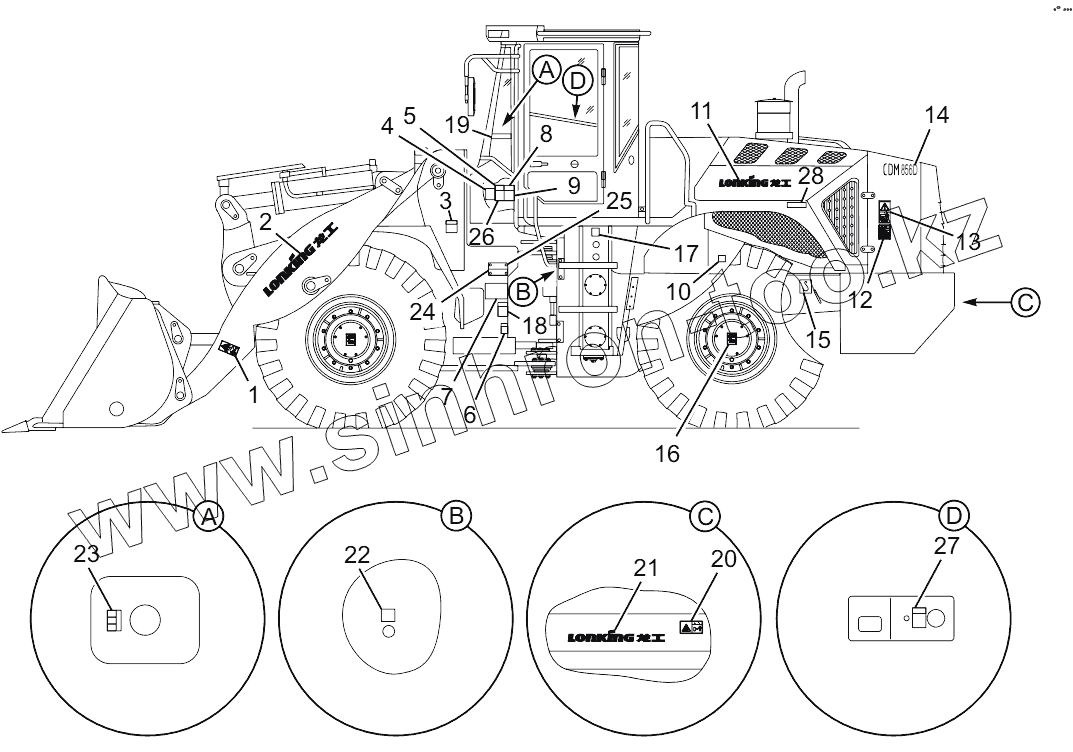

Каталог запасных частей к технике: Lonking (LongGong) CDM-856D. Warning Mark
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | LG853.14-001 | Lift arm warning label | |
| 2 | LG855.14I-002 | LONKING ЛХ on lift arm | |
| 3 | CDM856E.14-001 | Don’t step on it-warning label | |
| 4 | CDM855E.14I-009 | Machine welding warning label | |
| 5 | LG853.14-014 | Points to note before starting | |
| 6 | CDM855E.14I-007 | Safe parking warning label | |
| 7 | LG856.14-002 | Grease fitting distribution map | |
| 8 | LG855.14I-021 | Maintenance and regular inspection requirement | |
| 9 | LG853.14-015 | Warning | |
| 10 | LG856.14-005 | Implement control label | |
| 11 | LG855.14I-005 | LONKING ЛХ on engine hood | |
| 12 | LG853.14-006 | Battery connecting wire label | |
| 13 | LG853.14-007 | Fan warning label | |
| 14 | CDM856E.14-002 | Rear hood label | |
| 15 | LG853.14-011 | Lifting label | |
| 16 | CDM855E.14I-010 | Wheel side reduction warning label | |
| 17 | LG853.14-012 | Hydraulic oil label | |
| 18 | LG853.14-003 | Articulation safety label | |
| 19 | CDM855E.14I-008 | Maintain and transportation warning | |
| 20 | CDM855E.14I-005 | Back up warning label | |
| 21 | LG855.14I-019 | LONKING ЛХ on | |
| 22 | LG853.14-017 | Fuel label | |
| 23 | LG856.14-006 | Gear label | |
| 24 | CDM856E.14-003 | Nameplate | |
| 25 | GB/T12618 | Mushroom head break mandrel blind rivets | |
| 26 | LG856.14-008 | Flusher container label | |
| 27 | CDM835E.14-004 | Emergency braking warning label | |
| 28 | CDM835E.14-005 | Prevent burning warning label |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
