Каталог запасных частей к технике: Lonking (LongGong) CDM-856D. Implement hydraulic system
1
1
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
3
3
3
4
5
6
6
7
8
9
10
10
10
10
10
10
11
12
12
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
26
26
27
28
29
30
31
32
33
34
35
36
37
38
38
39
40
41
42
42
42
42
43
43
44
45
45
45
45
46
47
48
49
50
51
52
52
52
52
52
53
53
53
54
55
56
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
77
78
79
80
81
82
83
84
85

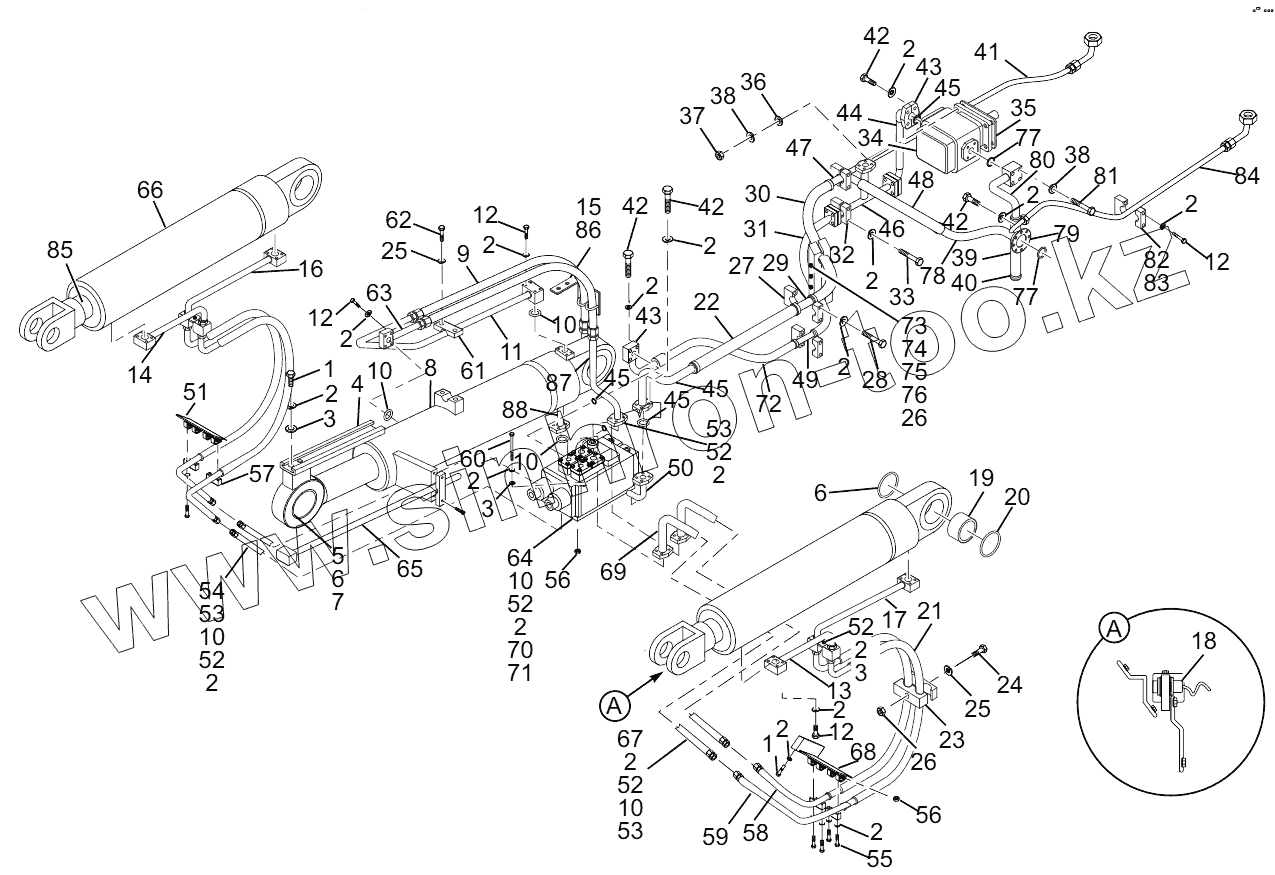

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | GB/T5783-2000 | Bolt | |
| 2 | GB/T93-1987 | Washer | |
| 3 | GB/T97.1-2002 | Washer | |
| 4 | CDM856E.07I.09 | Guard shield of tilt cylinder | |
| 5 | LG853.07-005 | Seal seat connected to tilt cylinder | |
| 6 | GB/T3452.1 | O-ring | |
| 7 | GB/T3452.1 | O-ring | |
| 8 | CDM856E.07I.10 | Tilt cylinder | |
| 9 | 20411-36T/20441-36Tx2N16x1050 | Hose from distribution valve to tilt cylinder cylinder | |
| 10 | GB/T3452.1 | O-ring | |
| 11 | LG855.07.04 | Rear chamber pipe of tilt cylinder | |
| 12 | GB/T5782-2000 | Bolt | |
| 13 | LG855.07.05 | Front chamber pipe of lift cylinder | |
| 14 | LG855.07.06 | Front chamber pipe of lift cylinder | |
| 15 | CDM858.07I.01 | Pipe fixed | |
| 16 | LG855.07.07 | Rear chamber pipe of lift cylinder | |
| 17 | LG855.07.08 | Rear chamber pipe of lift cylinder | |
| 18 | CDM856E.07.01 | Lift cylinder locating device | |
| 19 | LG853.07-006 | Seal seat connected to lift cylinder | |
| 20 | GB/T3452.1 | O-ring | |
| 21 | 20411-36T/20481-36Tx2N16x1600 | Hose of lift cylinder | |
| 22 | 20411-52Tx2W24x640 | Distribution valve oil return hose | |
| 23 | LG853.07-003 | Pipe clamp | |
| 24 | GB/T5783-2000 | Bolt | |
| 25 | GB/T93-1987 | Washer | |
| 26 | GB/T6170-2000 | Nut | |
| 27 | LG853.07-004 | Rear frame oil return transition connector press plate | |
| 28 | GB/T5782-2000 | Bolt | |
| 29 | LG855.07.09 | Oil return transition connector | |
| 30 | 20411-52Tx2W24x1152 | Articulated oil return hose | |
| 31 | 20412-42TGBx4SH20x1240 | Articulated oil inlet hose | |
| 32 | LG853.07-002 | Front (rear) frame oil inlet transition connector press plate | |
| 33 | GB/T5782-2000 | Bolt | |
| 34 | P51A579BE0225-02 | Implement pump | |
| 35 | LG853.06-001 | Seal gasket | |
| 36 | GB/T97.1-2002 | Washer | |
| 37 | GB/T6170-0-2000 | Nut | |
| 38 | GB/T93-1987 | Washer | |
| 39 | Ф51x4-L520 | Oil suction hose | |
| 40 | JB/T8870 | Pipe clamp | |
| 41 | 20411-36T/20491-36x1W16x2800 | Cooler input oil hose | |
| 42 | GB/T5783-2000 | Bolt | |
| 43 | FL-20 | Flange holder | |
| 44 | 87341-20/87391-20x2N16x500/270gr | Implement pump oil outlet hose | |
| 45 | GB/T3452.1 | O-ring | |
| 46 | LG855.07.10 | Implement pump oil outlet pipe | |
| 47 | CDM856E.07I.01 | Oil return transition connector | |
| 48 | 20411-52Tx2W24x560 | Oil return hose | |
| 49 | LG853.07.04 | Front frame oil inlet transition connector | |
| 50 | LG50C.07III.04 | Distribution valve oil return pipe | |
| 51 | LG50EX.07.13 | Lift arm pipe fixed plate | |
| 52 | GB/T5783-2000 | Bolt | |
| 53 | FL-16 | Flange holder | |
| 54 | 20411-36T/87391-16x2N16x720 | Hose from distribution valve to the right boom cylinder | |
| 55 | GB/T5782-2000 | Bolt | |
| 56 | GB/T6170-2000 | Nut | |
| 57 | LG50EX.07-005 | Pipe clamp | |
| 58 | LG855.07.15 | Hose from distribution valve to lift cylinder big chamber | |
| 59 | LG855.07.14 | Hose from distribution valve to small cylinder big chamber | |
| 60 | GB/T5782-2000 | Bolt | |
| 61 | LG855.07-003 | Pipe clamp | |
| 62 | GB/T5783-2000 | Bolt | |
| 63 | LG855.07.03 | Front chamber pipe of tilt cylinder | |
| 64 | LG50C.07III-001 | Flange | |
| 65 | CDM856E.07I.07 | Automatic level device | |
| 66 | CDM855.07.02 | Lift cylinder | |
| 67 | 20411-36Tx2N16x870 | Hose from distribution valve to the left boom cylinder | |
| 68 | LG50EX.07.14 | Lift arm pipe fixed plate | |
| 69 | L1CFL9-36-16 | Ferrule fitting connection | |
| 70 | KM300-2 | Hydraulic distribution valve | |
| 71 | LG50C.07III.11 | Piolt control system | |
| 72 | 20412-42TGB/87392-20x4SH20x900 | Distribution valve inlet oil hose | |
| 73 | GB/T5782-2000 | Bolt | |
| 74 | GB/T97.1-2002 | Washer | |
| 75 | LG50EX.07-003 | Pipe clamp | |
| 76 | LG50EX.07-004 | Pipe clamp | |
| 77 | GB/T3452.1 | O-ring | |
| 78 | CDM856E.07I.02 | Hydraulic system oil return pipe | |
| 79 | LG853.07-001 | Plate | |
| 80 | LG856.07I.04 | Implement pump oil inlet pipe | |
| 81 | GB/T5782-2000 | Bolt | |
| 82 | LG853.02.02-004 | Rubber pipe clamp | |
| 83 | LG853.02.02-005 | Self-made press plate | |
| 84 | 20411-36T/20491-36Tx1W16x3300 | Cooler output oil hose | |
| 85 | CDM856E.07I.03 | Lift cylinder carriage |
