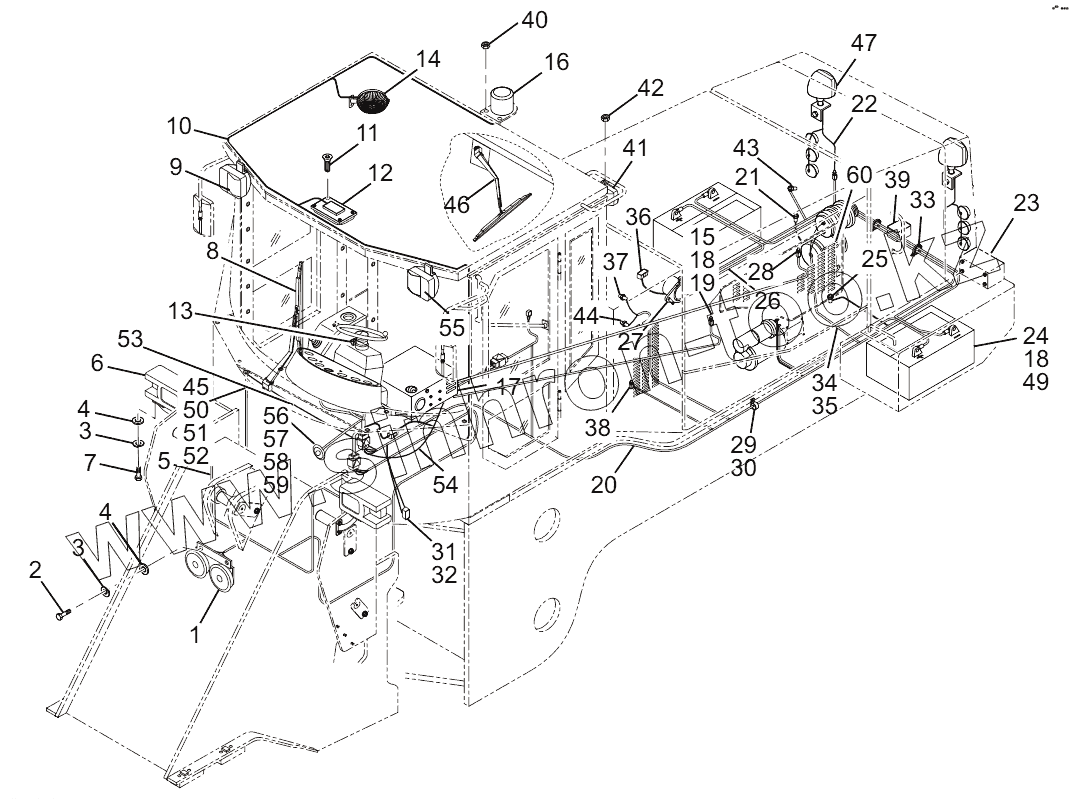

Каталог запасных частей к технике: Lonking (LongGong) CDM-856D. Electrical
1
2
3
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
49
50
51
52
53
54
55
56
57
58
59
60
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | LG853.15.09 | Electrical horn assembly | |
| 2 | GB/T5783-2000 | Bolt | |
| 3 | GB/T93-1987 | Washer | |
| 4 | GB/T97.1-2002 | Washer | |
| 5 | CDM856E.15I.01 | Front frame harness | |
| 6 | LG853.15.10 | Front combined lamp | |
| 7 | GB/T5783-2000 | Bolt | |
| 8 | CDM856E.15I.22 | Wiper assembly | |
| 9 | LG856.15.23 | Front working lamp | |
| 10 | CDM856D.15.02 | Cab harness | |
| 11 | LG853.15.13 | Rectangle ceiling lamp | |
| 12 | GB/T845-1985 | Taper screw | |
| 13 | CDM856D.15.60 | Instrument panel | |
| 14 | LG855.15.45 | Fan | |
| 15 | CDM856E.15I-002 | Heater inlet joint entry | |
| 16 | CDM858A.15II.48 | Warning lamp | |
| 17 | CDM856E.15I.19 | Air condition | |
| 18 | LG853.15.15.04 | Heater water valve | |
| 19 | LG853.15.15.05 | Hoop | |
| 20 | CDM856E.15I.03 | Rear frame harness | |
| 21 | CDM856E.15I.26 | Engine water temperature sensor | |
| 22 | CDM856.15V.04 | Rear hood light harness | |
| 23 | LG50C.15I.28 | Taillights | |
| 24 | LG853.15.26 | Battery | |
| 25 | LG853.15.27 | Low pressure warning switch | |
| 26 | CDM856E.15I.05 | Battery harness | |
| 27 | CDM858A.15II.50 | Main power switch | |
| 28 | CDM856E.15I-001 | Heater inlet joint return | |
| 29 | CDM855.15V.53 | Hoop | |
| 30 | CDM855.15V.51 | Hoop | |
| 31 | LG853.15.30 | Brake lamp switch | |
| 32 | CDM856E.15I.33 | Brake air press sensor | |
| 33 | LG853.15-001 | Nylon strip | |
| 34 | CDM856E.15I.08 | Alternator harness | |
| 35 | CDM856E.15I.10 | Generator grounding | |
| 36 | LG855.15.43 | Pressure difference message sender | |
| 37 | LG856.15.30 | Transmission oil temperature sensor | |
| 38 | LG855.15.44 | Pressure type message sender | |
| 39 | CDM855E.15II.20 | Buzzer | |
| 40 | GB/T923 | Cap nuts | |
| 41 | CDM858A.15II.23 | Work lamp | |
| 42 | GB/T923 | Cap nuts | |
| 43 | CDM856E.15I.29 | Engine oil pressure sensor | |
| 44 | LG856.15.32 | Fuel level sensor | |
| 45 | LG856.15.31 | Fuel level sensor | |
| 46 | LG30F.15.11 | Wiper assembly | |
| 47 | LG856.15.27 | Rear work lamp | |
| 48 | GB/T5783-2000 | Bolt | |
| 49 | GB/6170-2000 | Nut | |
| 50 | GB/T67-2000 | Screw | |
| 51 | GB/T97.1-2002 | Washer | |
| 52 | GB/T93-1987 | Washer | |
| 53 | CDM856D.15.06 | Instrument harness | |
| 54 | CDM856E.15I.09 | Air conditioning harness | |
| 55 | LG856.15.24 | Front steering lamp | |
| 56 | CDM855E.15II.50 | Cold start system | |
| 57 | CDM855E.15II-001 | Cold start fixing plate | |
| 58 | GB/T67-2000 | Screw | |
| 59 | GB/T97.1-2002 | Washer | |
| 60 | CDM856E.15I.46 | Compressor bracket |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
