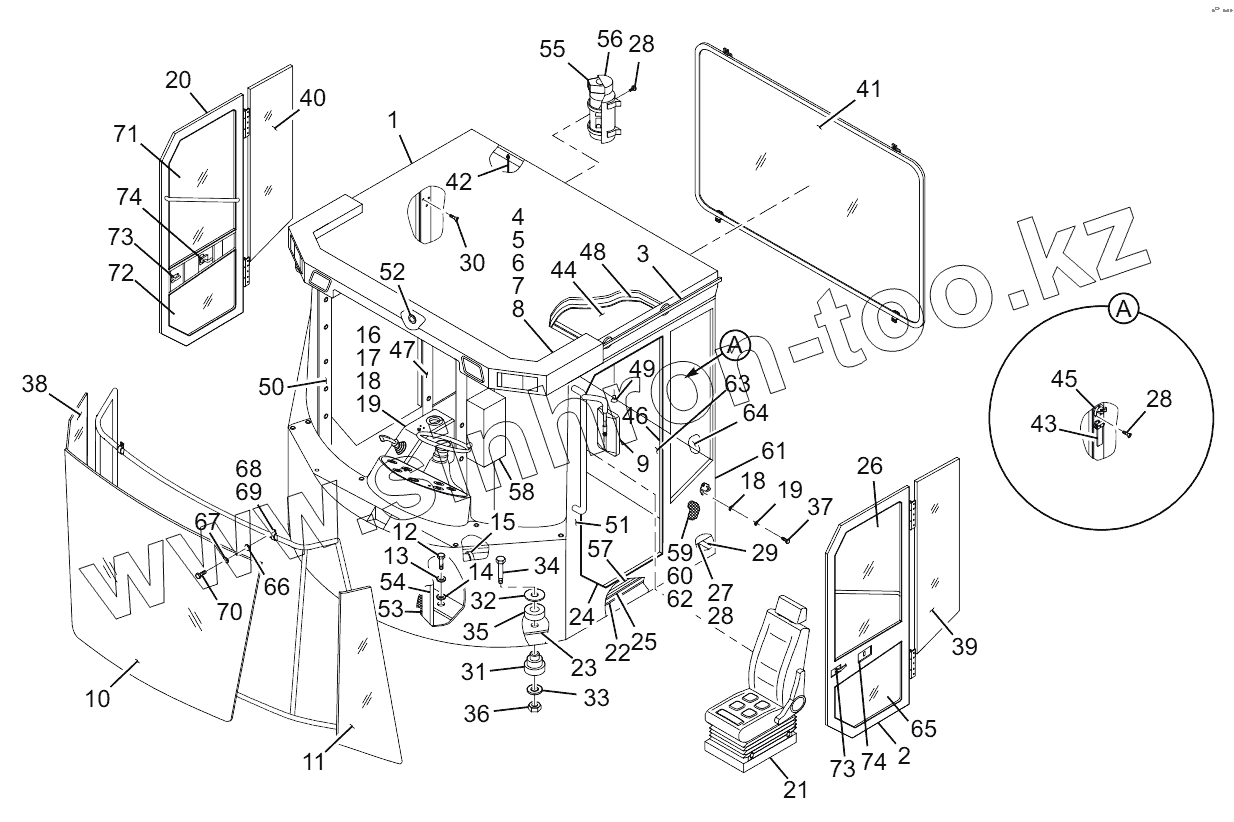

Каталог запасных частей к технике: Lonking (LongGong) CDM-856D. Cab
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
19
20
21
22
23
24
25
26
27
28
28
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
73
74
74
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | CDM856D.12.01 | Cab | |
| 2 | CDM856E.12I.07 | Left door | |
| 3 | LG863.12.03 | Toprail | |
| 4 | LG863.12.04 | Front lampshade | |
| 5 | GB/T5783-2000 | Bolt | |
| 6 | GB/T93-1987 | Washer | |
| 7 | GB/T96.2-2002 | Washer | |
| 8 | GB/T6170-2000 | Nut | |
| 9 | LG853.12.08 | Rearview mirror | |
| 10 | LG863.12-001 | Front glass | |
| 11 | LG863.12-002 | Left front glass | |
| 12 | GB/T5783-2000 | Bolt | |
| 13 | GB/T93-1987 | Washer | |
| 14 | GB/T97.1-2002 | Washer | |
| 15 | JB/T8870-1999 | Hose clamp | |
| 16 | CDM856E.12I.03 | Pilot control box | |
| 17 | GB/T5783-2000 | Bolt | |
| 18 | GB/T93-1987 | Washer | |
| 19 | GB/T97.1-2002 | Washer | |
| 20 | CDM856E.12I.08 | Right door | |
| 21 | LG856.12.11 | Driver seat | |
| 22 | CDM856E.12I.10 | Air channel mounting plate | |
| 23 | CDM856E.12I.02 | Pedestal | |
| 24 | LG853.12.11 | Glass frame rubber strip | |
| 25 | CDM856E.12I.11 | Air-conditioned back wind bellows | |
| 26 | CDM856E.12I.07-001 | Left door up glass | |
| 27 | CDM856E.12I.09 | Wind hood | |
| 28 | GB/T845-1985 | Taper screw | |
| 29 | CDM856E.12I.12 | Air-conditioned back wind bellows | |
| 30 | GB/T67-2000 | Screw | |
| 31 | LG853.12.05 | Rubber pad | |
| 32 | LG855.12-009 | Washer | |
| 33 | LG853.12-010 | Gasket | |
| 34 | LG853.12-011 | Pin | |
| 35 | LG853.12-012 | Tie plate | |
| 36 | GB/T889.2-2000 | Lock nut | |
| 37 | GB/T5783-2000 | Bolt | |
| 38 | LG863.12-003 | Right front glass | |
| 39 | LG863.12-004 | Left rear glass | |
| 40 | LG863.12-005 | Right rear glass | |
| 41 | LG863.12-006 | Rear window glass | |
| 42 | LG30F.12-017 | Harness sheath | |
| 43 | CDM858A.12I.06 | Hammer | |
| 44 | LG863.12-007 | Roof lining | |
| 45 | LG856.12-019 | Hat-and-coat hook | |
| 46 | CDM856E.12I-001 | Left rear support | |
| 47 | CDM856E.12I-002 | Right rear support | |
| 48 | LG856.12-022 | Ceiling sound absorption sponge | |
| 49 | LG856.12-026 | Plastic rivet | |
| 50 | CDM856E.12I-004 | Right front support | |
| 51 | CDM856E.12I-003 | Left front support | |
| 52 | CDM858A.12I-001 | Wiring harness gland cover | |
| 53 | CDM856E.12I-005 | Front sound absorption sponge | |
| 54 | CDM856E.12I-016 | Front decoration board | |
| 55 | CDM858A.12I.05 | Fire extinguisher | |
| 56 | CDM858A.12I.09 | Fire extinguisher support | |
| 57 | CDM856E.12I-006 | Ground pad | |
| 58 | CDM856E.12I.05 | Hood of Air-conditioner Evaporation machine | |
| 59 | CDM856E.12I-007 | Left rear boarding | |
| 60 | LG856.12-024 | Side sound absorption sponge | |
| 61 | CDM856E.12I-008 | Rear boarding | |
| 62 | CDM856E.12I-009 | Right rear boarding | |
| 63 | LG856.12-025 | Rear sound absorption sponge | |
| 64 | CDM856E.12I-010 | Rear decoration board | |
| 65 | CDM856E.12I.07-002 | Left door down glass | |
| 66 | GB/97.1-2002 | Washer | |
| 67 | GB/T93-1987 | Washer | |
| 68 | LG853.12-002 | Glass press board | |
| 69 | LG856.12-028 | Glass fixed rubber pad | |
| 70 | GB/T818-2000 | Screw | |
| 71 | CDM856E.12I.08-001 | Right door up glass | |
| 72 | CDM856E.12I.08-002 | Right door down glass | |
| 73 | LG856.12.02.02 | Door lock | |
| 74 | LG856.12.02.03 | Stopper |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
