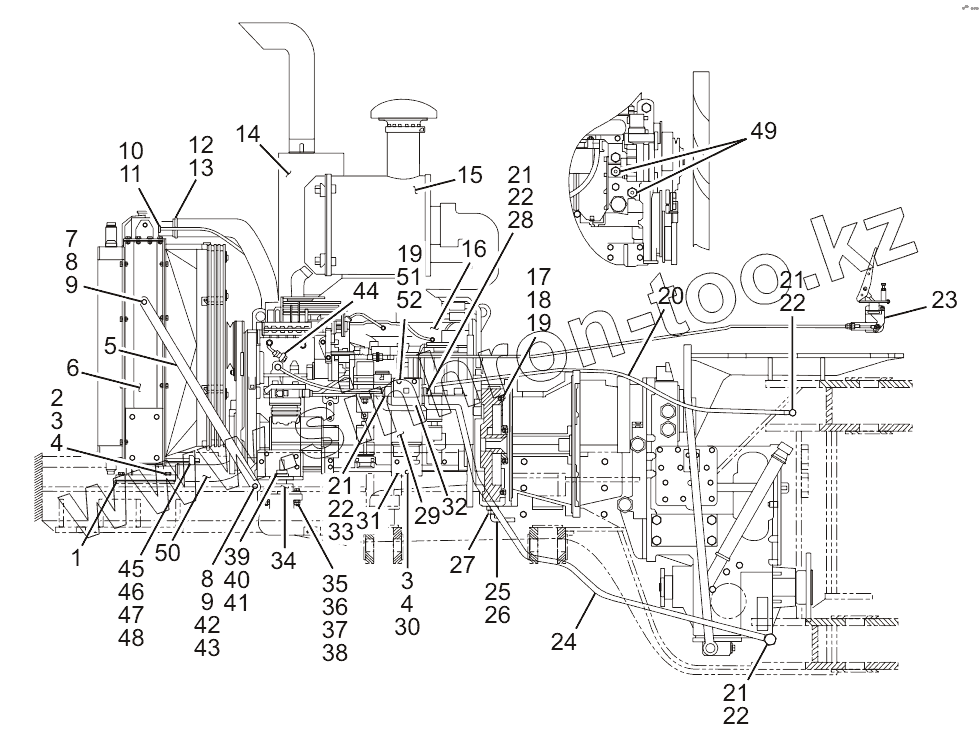

Каталог запасных частей к технике: Lonking (LongGong) CDM-856D. 6CTA8.3-C215 Diesel engine assembly
1
2
3
3
4
4
5
6
7
8
8
9
9
10
11
12
13
14
15
16
17
18
19
19
20
21
21
21
21
22
22
22
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | CDM856E.01I-001 | Radiator rubber pad | |
| 2 | GB/T5783 | Bolt | |
| 3 | GB/T93 | Washer | |
| 4 | GB/T97.1 | Washer | |
| 5 | LG853.01-008 | Radiator support rod | |
| 6 | CDM856E.01I.04 | Radiator | |
| 7 | GB/T5783 | Bolt | |
| 8 | GB/T93 | Washer | |
| 9 | GB/T97.1 | Washer | |
| 10 | HG/T2184 | Vent pipe | |
| 11 | JB/T8870 | Pipe clamp | |
| 12 | CDM856E.01I-007 | Engine outlet water hose | |
| 13 | JB/T8870 | Pipe clamp | |
| 14 | CDM855E.01IV.01 | Muffle | |
| 15 | CDM855E.01IV.02 | Air foreordain cleaner | |
| 16 | CDM856E.01I.03 | Diesel engine | |
| 17 | LG853.02-001 | Stud | |
| 18 | GB/T6171 | Nut | |
| 19 | GB/T93 | Washer | |
| 20 | CDM856E.01I.05 | Fuel oil return pipe | |
| 21 | LG853.08-011 | Washer | |
| 22 | CDM855E.01I-008 | Hollow bolt | |
| 23 | CDM856E.01I.06 | Throttle control assembly | |
| 24 | CDM856E.01I.07 | Hose from Filter to Fuel tank | |
| 25 | GB/T15329.1 | Torque converter oil return hose | |
| 26 | JB/T8870 | Pipe clamp | |
| 27 | LG853.01I.02 | Torque converter oil return connector | |
| 28 | CDM855E.01I-003 | Fuel inlet connector | |
| 29 | CDM856E.01I.08 | Fuel filter assembly | |
| 30 | GB/T5783 | Bolt | |
| 31 | CDM856E.01I.12 | Filter connection board | |
| 32 | CDM855E.01IV.05 | Fuel hose from filter to engine | |
| 33 | CDM855E.01I-004 | Filter connector | |
| 34 | QX518.26.04 | E-type absorber | |
| 35 | GB/T5783 | Bolt | |
| 36 | GB/T97.1 | Washer | |
| 37 | GB/T93 | Washer | |
| 38 | GB/T6170 | Nut | |
| 39 | GB/T5783 | Bolt | |
| 40 | GB/T97.1 | Washer | |
| 41 | GB/T93 | Washer | |
| 42 | GB/T5783 | Bolt | |
| 43 | GB/T6170 | Nut | |
| 44 | CDM855E.01I-002 | Engine fuel return connector | |
| 45 | LG853.01-005 | Wire clip | |
| 46 | GB/T5783 | Bolt | |
| 47 | GB/T97.1 | Washer | |
| 48 | GB/T93 | Washer | |
| 49 | CDM855E.01IV-003 | Heater connector | |
| 50 | CDM856E.01I-008 | Engine intlet water hose | |
| 51 | GB/T5783 | Bolt | |
| 52 | GB/T97.1 | Washer |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
