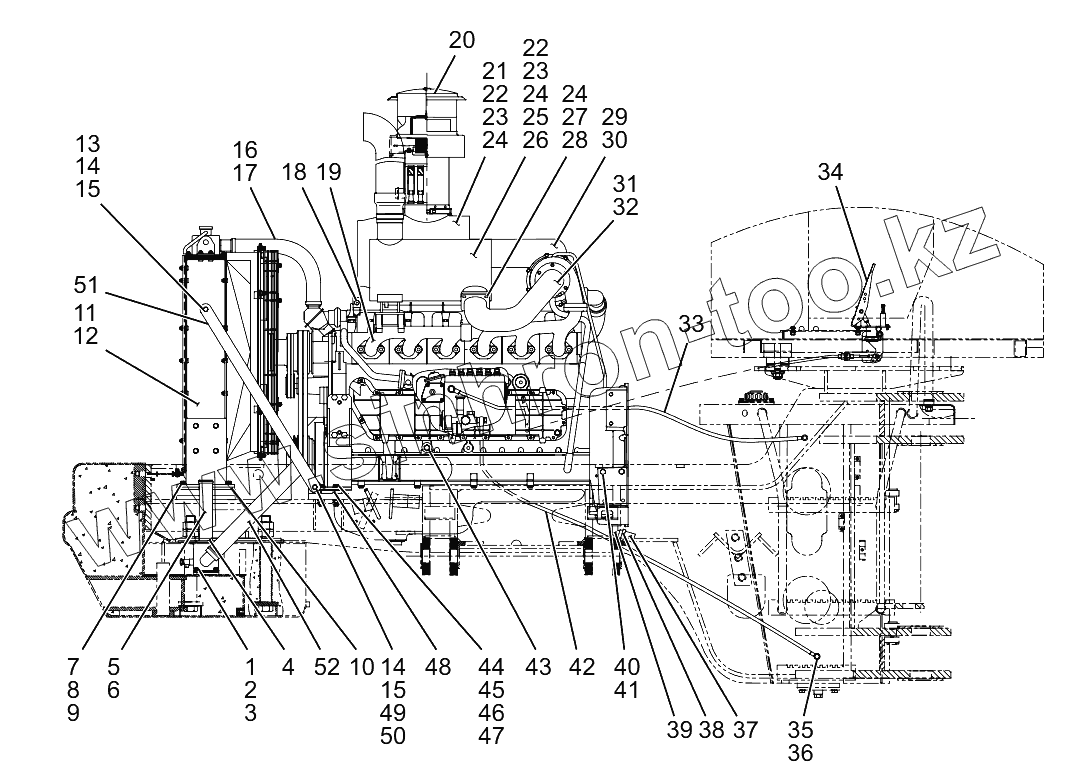

Каталог запасных частей к технике: Lonking (LongGong) CDM-855E. WD10G220 Diesel Engine Assembly
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
15
16
17
18
19
20
21
22
22
23
23
24
24
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | GB/T5783 | Bolt | |
| 2 | GB/T93 | Washer | |
| 3 | GB/T97.1 | Washer | |
| 4 | LG853.01.07 | Oil cooler for transmission and torque converter | |
| 5 | HB/T3036-1999 | Radiator water outlet hose | |
| 6 | JB/T8870-1999 | Hose clamp | |
| 7 | GB/T5783 | Bolt | |
| 8 | GB/T93 | Washer | |
| 9 | GB/T97.1 | Washer | |
| 10 | LG853.01-007 | Radiator rubber pad | |
| 11 | CDM855EK.01I.04 | Radiator assembly | |
| 12 | CDM855EK.01IV.04 | Radiator assembly | |
| 13 | GB/T5783 | Bolt | |
| 14 | GB/T93 | Washer | |
| 15 | GB/T97.1 | Washer | |
| 16 | 90003989308 | Hoop | |
| 17 | 612600160046 | Pipe from engine to radiator upper port | |
| 18 | LG853.01.01 | Heater pipe connector | |
| 19 | LG855.01.03 | Diesel engine | |
| 20 | 612600112168 | Strainer base | |
| 21 | 612600112169 | Air filter | |
| 22 | 90003802523 | Bolt | |
| 23 | 90003931122 | Spring washer | |
| 24 | 90003930271 | Flat washer | |
| 25 | 612600110828 | Muffler | |
| 26 | 615G60110032 | Muffle gasket | |
| 27 | 612600111318 | Muffle air inlet bolt | |
| 28 | 90003888470 | Self-lock nut | |
| 29 | 612600110394 | Desert air filter connecting hose | |
| 30 | JB/T8870 | Pipe clamp | |
| 31 | 612600110506 | Muffle air inlet pipe | |
| 32 | 61564G-1110068 | Supercharger vent pipe gasket | |
| 33 | 612600080024 | Fuel oil return pipe | |
| 34 | LG853.01.06 | Throttle control assembly | |
| 35 | 9003962621 | Fuel tank suction return connector | |
| 36 | 612600080200 | Combined washer | |
| 37 | GB/T15329.1 | Torque converter oil return hose | |
| 38 | JB/T8870-1999 | Hose clamp | |
| 39 | LG853.01.02 | Torque converter oil return connector | |
| 40 | 90003962025 | Plug screw | |
| 41 | 90003098014 | Washer | |
| 42 | 612600080074 | Fuel inlet pipe | |
| 43 | LG853.01-002 | Pressure connector | |
| 44 | GB/T5782 | Bolt | |
| 45 | GB/T97.1 | Washer | |
| 46 | GB/T6170 | Nut | |
| 47 | GB/T93 | Washer | |
| 48 | LG853.01-001 | Diesel engine rubber pad | |
| 49 | GB/T5783 | Bolt | |
| 50 | GB/T6170 | Nut | |
| 51 | LG855.01-008 | Radiator support | |
| 52 | 612600160050 | Water pipe from pump to cooler |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
