Каталог запасных частей к технике: Lonking (LongGong) CDM-855E. Warning Mark System
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

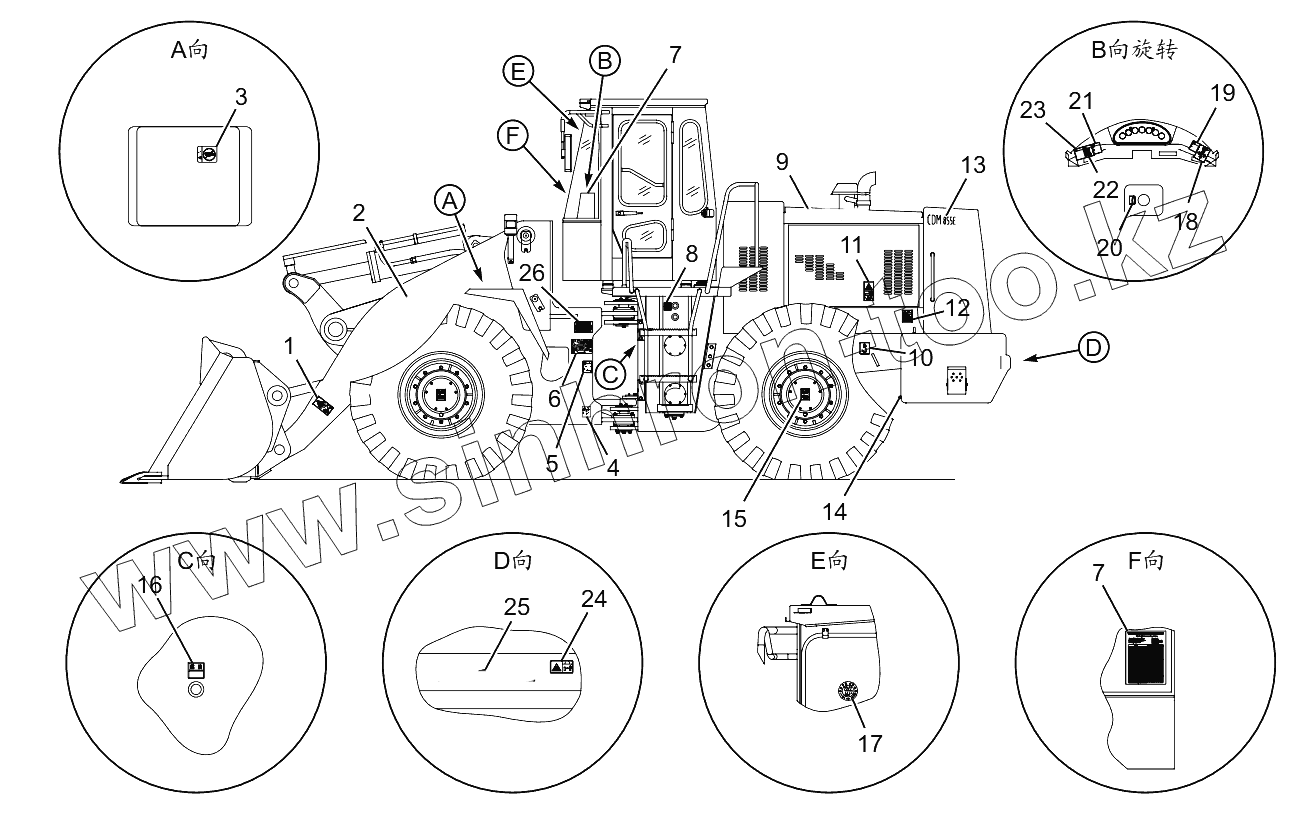

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | LG853.14-001 | Lift arm warning label | |
| 2 | LG853.14-002 | Logo on lift arm | |
| 3 | CDM855E.14I-006 | Do not step on it-warning label | |
| 4 | CDM855E.14I-008 | Maintain and transportation warning | |
| 5 | LG853.14-003 | Articulation safety label | |
| 6 | CDM855.14-004 | Grease fitting distribution map | |
| 7 | LG853.14-022 | Maintenance and regular inspection requirement | |
| 8 | LG853.14-012 | Hydraulic oil label | |
| 9 | LG853.14-005 | Logo on engine hood | |
| 10 | LG853.14-011 | Lifting label | |
| 11 | LG853.14-007 | Fan warning label | |
| 12 | LG853.14-006 | Battery connecting wire label | |
| 13 | CDM855E.14I-003 | Rear hood label | |
| 14 | LG853.14-010 | Airtankwarning label | |
| 15 | CDM855E.14I-010 | Wheel side reduction warning label | |
| 16 | LG853.14-017 | Fuel label | |
| 17 | LG853.14-020 | CHINA TOP BRAND LABEL | |
| 18 | LG856.14-005 | Implement control label | |
| 19 | CDM855E.14I-007 | Safe parking warning label | |
| 20 | LG856.14-006 | Gear label | |
| 21 | CDM855E.14I-009 | Machine welding warning label | |
| 22 | LG853.14-015 | Warning | |
| 23 | LG853.14-014 | Points to note before starting | |
| 24 | CDM855E.14I-005 | Back up warning label | |
| 25 | LG853.14-019 | Lonking on counterweight | |
| 26 | CDM855E.14I-004 | Nameplate |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
