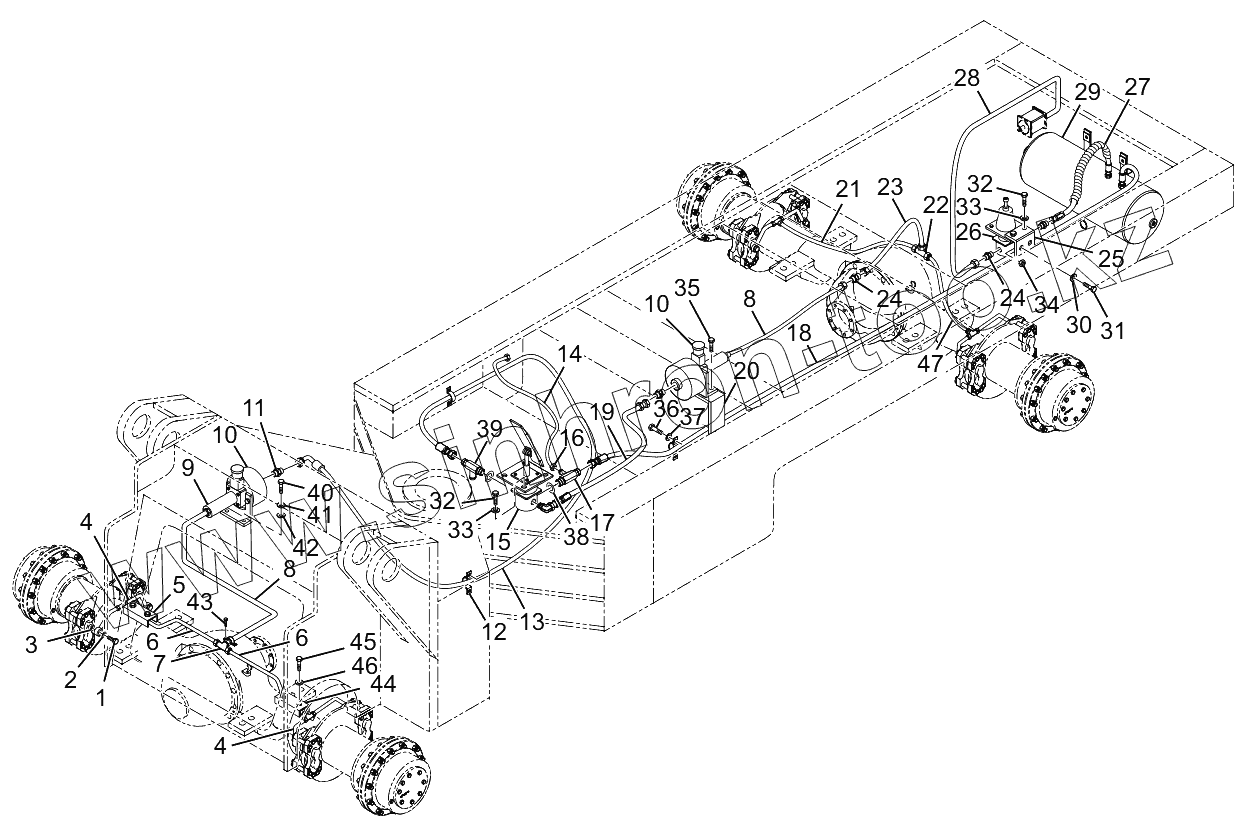

Каталог запасных частей к технике: Lonking (LongGong) CDM-855E. Service Brake System
1
2
3
4
4
5
6
6
7
8
8
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
26
27
28
29
30
31
32
32
33
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | LG853.08-010 | Pipe connector | |
| 2 | LG853.08-011 | Washer | |
| 3 | LG853.08-005 | Washer | |
| 4 | LG853.08.04 | Oil inlet hose | |
| 5 | LG853.08-015 | Guard board | |
| 6 | LG853.08.05 | Front axle oil pipe | |
| 7 | LG853.08-012 | Front axle oil channel T-connector | |
| 8 | LG853.08.03 | Front booster pump oil outlet pipe | |
| 9 | LG853.08-004 | Connecting bolt | |
| 10 | LG853.08.10 | Booster pump | |
| 11 | LG853.08-013 | Brake air pipe connector | |
| 12 | LG853.01-005 | Wire clip | |
| 13 | 90C-C/8I-L=3200 | Hose from brake valve to front booster pump | |
| 14 | LG853.08.12 | Air pressure gauge connecting pipe | |
| 15 | LG853.08.09 | Air brake master valve | |
| 16 | LG853.01-002 | Pressure connector | |
| 17 | LG50EX.08-001 | Brake X-connector | |
| 18 | C/8I-L=3300 | Hose from brake valve to left air tank | |
| 19 | 90C-C/8I-L=1400 | Hose from brake valve to rear booster pump | |
| 20 | LG855.08.01 | Rear booster pump support | |
| 21 | LG853.08.06 | Rear axle oil pipe | |
| 22 | LG853.08-014 | Rear axle oil pipe T-connector | |
| 23 | LG853.08.11 | Brake hose | |
| 24 | LG853.08-001 | Connector | |
| 25 | LG853.08-002 | Relief valve bracket | |
| 26 | LG853.08.08 | Relief valve | |
| 27 | LG853.08.02 | Wire wrapping hose | |
| 28 | LG853.08.15 | Pipe from air pump to relief valve | |
| 29 | LG853.08.01 | Air tank assembly | |
| 30 | GB/T93 | Washer | |
| 31 | GB/T5782 | Bolt | |
| 32 | GB/T5783 | Bolt | |
| 33 | GB/T97.1 | Washer | |
| 34 | GB/6170 | Nut | |
| 35 | GB/T5783 | Bolt | |
| 36 | GB/T5783 | Bolt | |
| 37 | GB/T93 | Washer | |
| 38 | JB1002 | Copper pad | |
| 39 | LG853.08-008 | Brake lamp switch T-connector | |
| 40 | GB/T5783 | Bolt | |
| 41 | GB/T93 | Washer | |
| 42 | GB/T97.1 | Washer | |
| 43 | GB/T5783 | Bolt | |
| 44 | LG853.08-016 | Guard board | |
| 45 | GB/T5783 | Bolt | |
| 46 | GB/T97.1 | Washer | |
| 47 | LG853.08.14 | Rear axle oil pipe |
