Каталог запасных частей к технике: Lonking (LongGong) CDM-853N.00I. TRANSMISSION SYSTEM (30803900110)

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CDM-1165 (2009) CDM-1185 (2009) CDM-1220 (2009) CDM-307 (2013) CDM-308 (2013) CDM-312 (2013) CDM-512D (2014) CDM-514D (2014) CDM-520A (K) (2010) CDM-6065 (2013) CDM-6150 (2012) CDM-6240 (2015) CDM-6365H (2012) CDM-6485H (2013) CDM-816 CDM-816 (2010) CDM-816 (2011) CDM-816-D (2018) CDM-833 CDM-833 CDM-833.00 (2010) CDM-833H CDM-835E VI.00 (2015) CDM-835E VII.00I (2015) CDM-835E VIII.00I (2015) CDM-843 CDM-853.00 (2010) CDM-853N.00I (2017) CDM-855E CDM-855E (2009) CDM-855EG CDM-855EK CDM-855EM CDM-856 CDM-856D (2010) CDM-860.00 (2010) CMD-835E (2009) CMD-835E.01I (2010) LG-160DT (2012) LG-833NIV.00I (2017) LG20, LG25, LG30, LG35 (2013) LG50-60-70 (2014) LG50CVII.00I (2015) LG833NG (2015) ZL50NC (2015)

Схема > Не выбрано DIESEL ENGINE SYSTEM (30801900260) THROTTLE CONTROL ASSEMBLY(30801000304) TORQUE CONVERTER SYSTEM (30802900103) TRANSMISSION SYSTEM (30803900110) AXLE SYSTEM (30804900084) FRONT DRIVE SHAFT ASSEMBLY (17401000038) REAR DRIVE SHAFT ASSEMBLY (17404000052) CONTROL SYSTEM (30805900008) PIPELINE ASSEMBLY OF STEERING GEAR AND CYLINDER (30806000247) PRIORITY VALVE INSTALLATION ASSEMBLY (30806000248) GEAR PUMP INSTALLATION ASSEMBLY (30806000249) HYDRAULIC STEERING GEAR ASSEMBLY (30806000224) BUCKET CYLINDER PIPELINE INSTALLATION ASSEMBLY (30807000645) BUCKET CYLINDER PIPELINE INSTALLATION ASSEMBLY (30807000645) MULTIPLE UNIT VALVE PIPELINE INSTALLATION ASSEMBLY (30807000738) WORKING PUMP PIPELINE INSTALLATION ASSEMBLY (30807000647) LIFT CYLINDER PIPELINE INSTALLATION ASSEMBLY (30807000644) PIOLT CONTROL ASSEMBLY (30807000202) BUCKET AUTOMATIC SET LEVEL DEVICE ASSEMBLY (30807000649) BOOM LIFTING LIMIT DEVICE ASSEMBLY ( 30807000546) AIR CYLINDER INSTALLMENT ASSEMBLY (30808000300) RELIEF VALVE INSTALLMENT ASSEMBLY (30808900129) AIR CYLINDER PIPELINE INSTALLMENT ASSEMBLY (30808900129) BRAKE VALVE PIPELINE INSTALLMENT ASSEMBLY (30808900129) BOOSTER PUMP INSTALLMENT ASSEMBLY (30808900129) FRONT AXLE PIPELINE INSTALLATION ASSEMBLY (30808900129) REAR AXLE PIPELINE INSTALLATION ASSEMBLY (30808900129) EMERGENCY AND PARKING BRAKE SYSTEM (30809000060) FRAME ASSEMBLY (30810900365) IMPLEMENT SYSTEM (30811900247) BUCKET ASSEMBLY (30871900086) CAB SYSTEM (30812900218) CAB SYSTEM (30812900218) OUT PANEL SYSTEM SYSTEM (30813900323) HYDRAULIC TANK ASSEMBLY (30889900074) FUEL TANK ASSEMBLY (30888900056) COUNTER WEIGHT ASSEMBLY (30887000549) HOOD ASSEMBLY (30886900066) ELECTRICAL SYSTEM (30815900279) CABIN ELECTRICAL ARRANGEMENT (30815900279) AIR CONDITION ASSEMBLY (60400000641) EVAPORATOR ASSEMBLY (60900003002) CONDENSER ASSEMBLY(60100002345) FRONT WIPER ASSEMBLY (60400000569) STAND-ALONE IP ASSEMBLY(60400001133) CENTRAL CONTROL BOX (60403010079) REAR WIPER ASSEMBLY(60400000572) FRONT FRAME ELECTRICAL ARRANGEMENT (30815900279) FRAME ELECTRICAL ARRANGEMENT (30815900279) BRAKE VALVE ELECTRICAL ARRANGEMENT (30815900279) OIL TANK ELECTRICAL AARRRRAANNGGEEMMEENNTT(3300881155990000227799) TRANSMISSON ELECTRICAL ARRANGEMENT (3300881155990000227799) COUNTER WEIGHT ELECTRICAL ARRANGEMENT (3300881155990000227799) SCRUBBER ELECTRICAL ARRANGEMENT (30815900279) TORQUE CONVERTER ASSEMBLY (LG853.02.01B) TRANSMISSION ASSEMBLY (LG853.03.01B) SHAFT II ASSEMBLY (LG853.03.01.02) SHAFT III ASSEMBLY (LG853.03.01.05) GEAR I PISTON ASSEMBLY (LG853.03.01.06) FRICTION PLATE SEPARATING BRACKET ASSEMBLY (LG853.03.01.08) REVERSE GEAR PISTON ASSEMBLY (LG853.03.01.09) OIL PAN ASSEMBLY (LG853.03.01.04) SHAFT IV ASSEMBLY (LG853.03.01.03) SHAFT I ASSEMBLY (LG853.03.01.01) AXLE ASSEMBLY (16480500190) MAIN REDUCTOR ASSEMBLY (36403000030) WHEEL REDUCTOR ASSEMBLY (36403000029) DIFFERENTIAL ASSEMBLY (36403000028) AXLE HOUSING ASSEMBLY (36401000007) AXLE ASSEMBLY (16480505160) REAR MAIN DRIVE ASSEMBLY (36403000016) WHEEL REDUCTOR ASSEMBLY (36402000048) DIFFERENTIAL ASSEMBLY (36403000015) AXLE HOUSING ASSEMBLY (36401000003) STEERING CYLINDER (16608040700) BUCKET CYLINDER (16608106170) BOOM CYLINDER (16608100270) TOOL KIT LIST OF VULNERABLE PARTS OF THE ENGINE Hydraulic schematic diagram

1

2

3

4

5

6

7

8

9

10

11

12

13

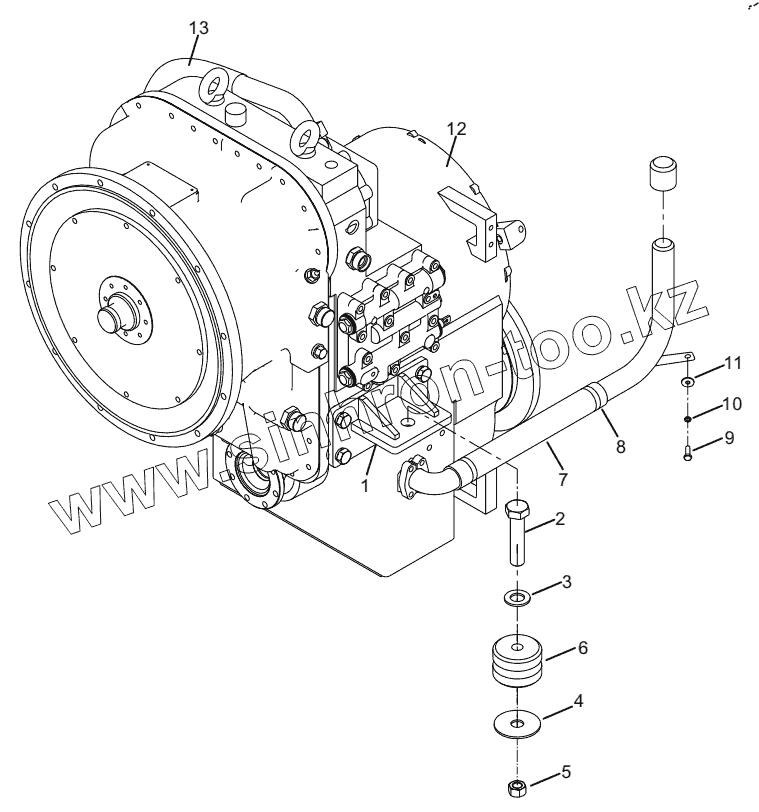

Позиция на иллюстрации	Заводской номер детали		Название детали
1	30803000052		Welding of the fixing bracket of gear-box
2	51203173214		Bolt M24x160
3	51421170115		Washer 24
4	30812102005		Backing plate
5	51341001120		Nut M24
6	60400000675		Shock absorber
7	30803000004		Oil filler tube assembly
8	56171003401		Clip
9	51204101114		Bolt
10	51401100107		Spring lock washer
11	51421100115		Plain washer
12	36313000046		Gearbox assembly
13	17272012092		Hose assembly

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
