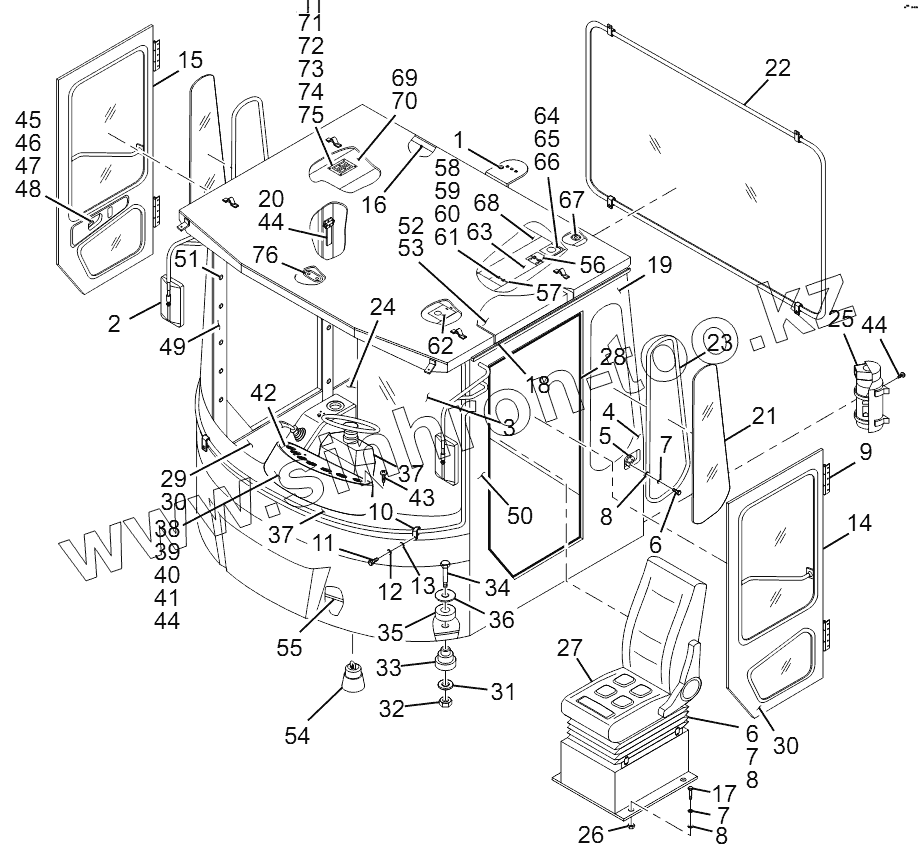

Каталог запасных частей к технике: Lonking (LongGong) CDM-853.00. Cab System (CDM853.12)
1
2
3
4
5
6
6
7
7
7
8
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
30
30
31
32
33
34
35
36
37
37
38
39
40
41
42
43
44
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | CDM858.12.04-021 | Wire sheath II | |
| 2 | LG853.12.08 | Rearview mirror | |
| 3 | LG853.12-001 | Front windscreen | |
| 4 | CDM853.12.01 | Cab weldment | |
| 5 | LG853.12.09 | Door catches | |
| 6 | GB/T5783 | Bolt | |
| 7 | GB/T93 | Washer | |
| 8 | GB/T97.1 | Washer | |
| 9 | LG853.12.02 | 5-inch hinge | |
| 10 | LG853.12-002 | Glass press board | |
| 11 | GB/T818 | Screw | |
| 12 | GB/T93 | Washer | |
| 13 | GB/T97.1 | Washer | |
| 14 | LG853.12.03 | Left door assembly | |
| 15 | LG853.12.13 | Right door assembly | |
| 16 | LG30F.12-017 | Harness sheath | |
| 17 | GB/T5783 | Bolt | |
| 18 | LG853.12-004 | Decoration board inside roof | |
| 19 | LG853.12-005 | Rear upper decoration board | |
| 20 | CDM858A.12I.06 | Hammer | |
| 21 | LG853.12-006 | Rear glass | |
| 22 | LG853.12-007 | Rear window glass | |
| 23 | LG853.12-020 | Glass rubber strip (black) | |
| 24 | CDM855E.12-002 | Rear down decoration board | |
| 25 | CDM858A.12I.05 | Fire extinguisher | |
| 26 | GB/T6170 | Nut | |
| 27 | CDM853.12.03 | aeroseat | |
| 28 | LG853.12.11 | Glass frame rubber strip | |
| 29 | LG853.12-009 | Right door down decoration board | |
| 30 | LG853.12-018 | Left door down decoration board | |
| 31 | LG853.12-010 | Gasket | |
| 32 | GB/T889.2 | Nut | |
| 33 | LG853.12.05 | Rubber pad | |
| 34 | LG853.12-011 | Pin | |
| 35 | LG853.12-012 | Tie plate | |
| 36 | LG855.12-009 | Washer | |
| 37 | LG853.12.06 | Steering gear securing bracket assembly | |
| 38 | LG853.12-015 | Instrument panel | |
| 39 | LG853.12-016 | Steering column hood | |
| 40 | GB/T5783 | Bolt | |
| 41 | GB/T96.2 | Washer | |
| 42 | CDM855E.12I-001 | Instrument board | |
| 43 | GB/T818 | Screw | |
| 44 | GB/T845 | Taper screw | |
| 45 | LG853.12.12 | Door lock | |
| 46 | GB/T5783 | Bolt | |
| 47 | GB/T93 | Washer | |
| 48 | GB/T97.1 | Washer | |
| 49 | LG853.12-013 | Right door upper decoration board | |
| 50 | LG853.12-019 | Left door upper decoration board | |
| 51 | LG853.12-003 | Plastic rivet | |
| 52 | LG853.12-021 | Sponge | |
| 53 | LG853.12-022 | Sponge | |
| 54 | CDM855E.12II.02 | Wind hood | |
| 55 | CDM853.12-001 | Ground gasket | |
| 56 | LG853.12.01.02.01.02 | Hydraulic control supporting board | |
| 57 | LG853.12.01.02.01-001 | Control supporting board | |
| 58 | GB/T6170 | Nut | |
| 59 | GB/T5783 | Bolt | |
| 60 | GB/T93 | Washer | |
| 61 | GB/T96.2 | Washer | |
| 62 | LG853.12.01.02.01-002 | Moving cover board | |
| 63 | LG853.12.01.02.01.06 | Left moving surface board | |
| 64 | GB/T5783 | Bolt | |
| 65 | GB/T93 | Washer | |
| 66 | GB/T96.2 | Washer | |
| 67 | CDM858A.12I.01.01.01-001 | Wiring harness sheath | |
| 68 | LG856.12.01.01.01-003 | Middle surface board | |
| 69 | LG853.12.01.02.01-014 | Right moving surface board | |
| 70 | LG853.12.01.02.01-015 | Right moving surface board | |
| 71 | LG853.12.01.02.01-009 | Press ring | |
| 72 | LG853.12.01.02.01-010 | Press ring | |
| 73 | LG853.12.01.02.01-011 | Bellows sleeve | |
| 74 | GB/T818 | Screw | |
| 75 | GB/T97.1 | Washer | |
| 76 | LG853.12.01.02.01-012 | Instrument pipe wiring harness sheath |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
